Cable Protection & Covers For MV HV Power Cables

Published 12 Jan 2018

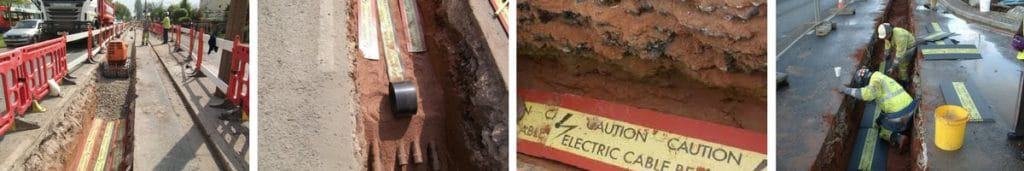

Cable Covers MV HV Medium High Voltage

Uploaded By: Chris Dodds - reading time 5 minutes

Cable Covers

Centriforce Tapetile and Stokbord underground cable protection tiles and covers are the market leading, heavy duty utility protection system for protecting underground cable and pipes – this includes low voltage, medium voltage and high voltage power networks working at 11kV/33kV up to and including 132kV/275kV extra high voltage cables.

T&D supply the most extensive range of Centriforce Cable Protection products from stock for delivery throughout the UK to most UK DNO specifications in both Tapetile and Stokbord ranges – used to protect MV-HV Underground Cables & Joints.

Centriforce Stokbord Taptile Cable Covers 11kV 33kV

Tapetile

& Stokbord Covers

Stokbord Cable Covers - 33kV Cable Protection For Underground MV-HV Cable Trench

Stokbord Cable Covers – 33kV Cable Protection For Underground MV-HV Cables



Tapetile Cable Covers – 11kV Cable Protection For Underground MV-HV Cable Trench

Tapetile – 11kV Cable Protection For Underground MV-HV Cables

Stokbord

See the complete Centriforce range: MV HV Medium & Voltage Cable Protection Products

➡ The following Selection Table outlines the current approved Cable Protection Systems for UK DNO’s for underground medium and high voltage cables.

Northern Powergrid Centriforce Tapetile 150×2.5mmx40m Northern Powergrid - Cable Joints Cable Terminations LV Low Voltage
Northern Powergrid Centriforce Tapetile 200×2.5mmx40m Northern Powergrid - Cable Joints Cable Terminations LV Low Voltage
Northern Powergrid Centriforce Stokbord 1000x244x12mm Northern Powergrid - Cable Joints Cable Terminations LV Low Voltage
Scottish Power Centriforce Tapetile 200×2.5mmx40m Scottish Power Energy Networks - Cable Joints Cable Terminations 11kV 33kV LV HV
Scottish Power Centriforce Stokbord 1000x244x12mm Scottish Power Energy Networks - Cable Joints Cable Terminations 11kV 33kV LV HV
UK Power Networks Centriforce Tapetile 200×2.5mmx40m UK Power Networks - Cable Joints Cable Terminations 11kV 33kV LV HV
UK Power Networks Centriforce Stokbord 1000x244x9mm UK Power Networks - Cable Joints Cable Terminations 11kV 33kV LV HV
Western Power Distribution (WPD) Centriforce Stokbord 1000x450x12mm Western Distribution Power
Western Power Distribution (WPD) Centriforce Stokbord 1000x244x12mm Western Distribution Power
Scottish & Southern Energy (SSE) Centriforce Stokbord 1000x244x12mm  SSE
GTC Centriforce Tapetile 150×2.5mmx40m  GTC
GTC Centriforce Tapetile 200×2.5mmx40m  GTC
National Grid Centriforce Tapetile 200×2.5mmx40m  National Grid
National Grid Centriforce Stokbord 1000x300x14mm  National Grid
National Grid Centriforce Stokbord 1000x450x14mm  National Grid

Centriforce Benefits

Centriforce Stokbord and Tapetile heavy duty plastic underground cable covers have virtually replaced concrete cable covers, tiles and plates for several reasons:

  • Clearest warning of underground buried cables to third parties
  • Can be custom made with sizes to suit specific utility cable protection for 11kV, 33kV, 66kV and 132kV
  • Contains bold warning text and UK DNO logo for clear cable identification
  • Damage to medium and high voltage cables less likely therefore reducing the cost of repairs, jointing and outages
  • Lightweight and easy to install cable covers irrespective of weather and soil conditions
  • Durable with good impact resistance
  • Rotproof and resistant cable covers to wide range of soil conditions

Electrical Explosion – An 11kV Cable Strike

Two construction companies have been fined £90,000 after workers were seriously burned, and one scarred for life, after they cut into a live 11kV electrical cable. Unprotected underground cables distributing medium and high voltage electricity pose serious health and safety dangers.
