Heatshrink Cable Terminations 11kV HV High Voltage – Prysmian
Heatshrink cable terminations manufactured by Prysmian are quick and easy to install, offering high reliability and excellent performance for terminating medium/high voltage cables.
T&D also offer a full range of Prysmian Separable Connectors.
➡ 11kV coldfit terminations are also available from Prysmian

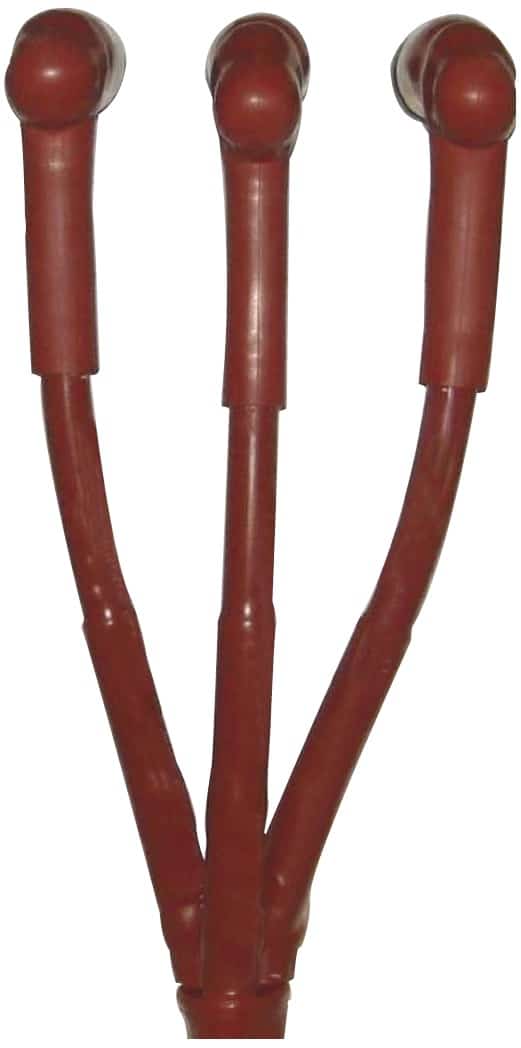

The high voltage cable terminations include heat shrink sealing, anti-track and stress control tubings to provide excellent insulation levels and lower surface stress which results in a more compact 11kV termination for indoor located HV cables. For outdoor use the cable terminations have moulded-in rain sheds which are designed to let water run off when installed in an upright position.
Heat Shrink Cable Terminations
11kV High Voltage
Features & Benefits
- Easy cable termination installation
- Large heat shrink cable termination range take
- UV resistant non-tracking outer tube
- Heat-activated sealant for water-tight seals
- Tough abrasion resistant outer coverings
- Cross core kits included as standard for paper cables
- Independently witnessed in accordance with BS7888 by ERA Technology
Heat Shrink HV High Voltage Cable Terminations 11kV
Product Range
- All cable sizes based on compression or crimp lugs
- Additional earthing kits required for XLPE insulated cables with copper tape screen and lead sheath cables
- See 11kV cable lugs
Polymeric Cables XLPE EPR | |
11kV Conductor Cross Section | Indoor Cable Termination |
16sqmm | HIT3X-A-11 |
25sqmm | HIT3X-A-11 |
35sqmm | HIT3X-B-11 |
50sqmm | HIT3X-B-11 |
70sqmm | HIT3X-B-11 |
95sqmm | HIT3X-C-11 |
120sqmm | HIT3X-C-11 |
150sqmm | HIT3X-C-11 |
185sqmm | HIT3X-C-11 |
240sqmm | HIT3X-C-11 |
300sqmm | HIT3X-D-11 |
400sqmm | HIT3X-D-11 |
Paper Cables | |
11kV Conductor Cross Section | Indoor Cable Termination |
16sqmm | HIT3P-A-11 |
25sqmm | HIT3P-A-11 |
35sqmm | HIT3P-B-11 |
50sqmm | HIT3P-B-11 |
70sqmm | HIT3P-B-11 |
95sqmm | HIT3P-C-11 |
120sqmm | HIT3P-C-11 |
150sqmm | HIT3P-C-11 |
185sqmm | HIT3P-C-11 |
240sqmm | HIT3P-C-11 |
300sqmm | HIT3P-D-11 |
400sqmm | HIT3P-D-11 |
Heatshrink HV High Voltage Cable Terminations 11kV Accessories
The following information enables the selection of polymeric cable termination accessories including insulating bushing boots for us with the Prysmian Heat Shrink range with copper tape screened and/or lead sheathed 11kV power cables.
Earthing Kits For Indoor 3 Core Terminations – Polymeric Cables | |
Cable Terminations | Copper Tape Screen Kits |
HIT3X-A-11 | ESE1 |
HIT3X-B-11 | ESE1 |
HIT3X-C-11 | ESE2 |
HIT3X-D-11 | ESE3 |
Earthing Kits For Indoor 3 Core Terminations – Paper Cables | |
Cable Terminations | Copper Tape Screen Kits |
HIT3P-A-11 | ESE11P |
HIT3P-B-11 | ESE11P |
HIT3P-C-11 | ESE12P |
HIT3P-D-11 | ESE13P |
HSBS Series Straight Bushing Boot Kit | |
Kit Number | Conductor Cross Section |
HSBS1 | 16-70sqmm |
HSBS2 | 95-400sqmm |
HSBA Series Right Angled Bushing Boot Kit | |
Kit Number | Conductor Cross Section |
HSBA1 | 16-35sqmm |
HSBA2 | 35-240sqmm |
HSBA3 | 300-400sqmm |
Top Hat Cable Gland – SWA Cables | |
Kit Number | Conductor Cross Section |
HMTHG1 | 35-95sqmm |
HMTHG2 | 120-300sqmm |
