Hellermann Tyton Pressgel | Silicone Gel for the Protection of Junction Boxes & Electronic Components

Published 04 May 2021

Hellermann Tyton Pressgel

Insulation & Sealing of Cable Connections in Junction Boxes

Hellermann Tyton Pressgel

Silicone Gel for the Protection of Electrical Installations

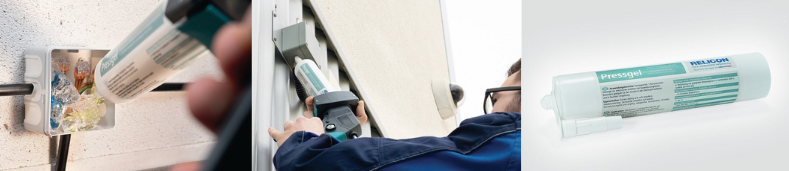

Pressgel from Hellermann Tyton is the ideal solution for insulation and sealing of cable connections in junction boxes. Due to its protective properties it prevents corrosion and oxidation. The Hellermann Tyton Pressgel is particularly suitable for use in overhead installations and in damp or humid environments – for electrical installation up to 1kV.

Currently, electrical connections, inside empty enclosures or junction boxes are exposed to the risk of short circuit, oxidation and corrosion, which may over time cause irreparable damages. By using PressGel this can prevent many of the environmental hazards such as vibration, water ingress, insects and dust which can result in installation failures.

PressGel covers a range of applications from DIY projects such as protecting CCTV cameras or outdoor lighting from insects and/or rain to industrial applications such as mining, where an IP68 rating is required to protect electrical installations.

HellermannTyton Pressgel

Hellermann Tyton Pressgel

Pressgel Features & Benefits

  • Ready to use transparent Silicon gel in cartridge gun
  • Highly adhesive and non-drip
  • IP 68 in combination with appropriate junction box
  • Keeps insects away from electrical installations
  • Self-sealing for cables
  • Removable cable sealing product
  • Re-closable cartridge for multiple use
  • Non-toxic
  • Halogen-free
  • Isocyanate-free
  • UV-stable

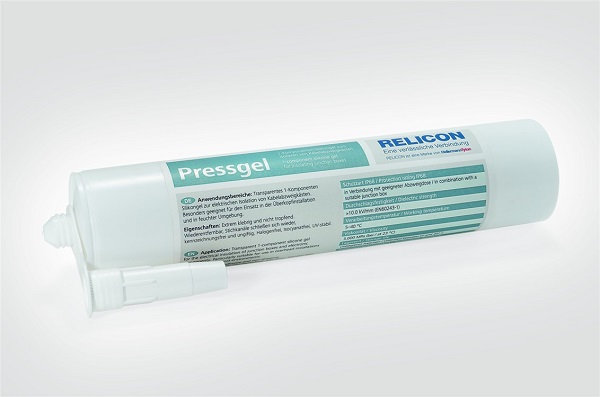

Pressgel

Silicone Gel Material & Specifications

Dielectric Strength >20 kV/mm
ELV compliant (Article 4 – 2) YES
Halogenfree Yes
Hazardous good No
Material Silicone (SI)
Operating Temperature – °C -60 °C to +200 °C
Shelf Life Unlimited
Specifications HF RoHS
Vibrations absorbing Yes

Pressgel Technical Data

Application Tool PTS4, ASS103, RCS0425
Colour Transparent (CL)
Pack Cont. 310ml
Package Quantity per pcs.
PART DESCRIPTION Pressgel-SI-CL
Product Family Relicon 1-component sillicone gel
Product Group 1-component sillicone gel
Removable Yes
Short Description 1-component sillicone gel
Variant Gel
Viscosity 3000 mPa*s, 23 °C (EN ISO 2555)



Hellermann Tyton are manufacturers of cable management accessories for fastening, fixing and identifying cables. With over 60,000 products, the range includes nylon cable ties, stainless steel cable ties, heat shrink moulded shapes, electrical enclosures, tapes, cable boots and labelling systems for cables.
