Medium & High Voltage Fuses | Circuit Protection

ABB provides a full range of Medium Voltage Products including fuses for the utility, industrial and commercial customers with safe, reliable and smart technologies for the distribution of electricity, typically at LV and MV voltages (11kV 33kV). The extensive ABB products offering includes distribution automation products, surge arresters, circuit protection, switching, limiting, joints and terminations, switchgear, MV HV cables and related services for MV electrical power systems.


MV HV Fuses

Medium & High Voltage Fuses | 11kV 33kV

The ABB range of MV HV Fuses include medium voltage current limiting and expulsion fuses suitable for the electrical circuit protection of distribution transformers, voltage transformers, capacitor banks, motor circuits and installations with other switching apparatus.

Key ABB Benefits

  • Capable to control full range of MV overload currents either in combination with switching apparatus or as sole electrical circuit protection
  • Economic circuit protection devices for immediate interruption of high short circuit currents that significantly increase isolation life time
  • High mechanical and thermal resistance due to porcelain as housing materials

Key ABB Features

  • Special design fuses optimized for type of medium voltage power application
  • Two fuse housing materials are applicable – porcelain and resin-fiberglass
  • Fuse application: indoor and outdoor

See also Surge Diverters | Sheath Voltage Limiters

Capacitor Protection Fuses

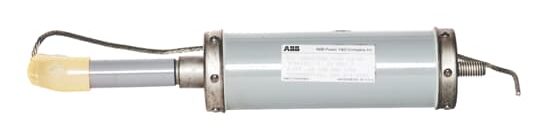

ANSI Indoor Current Limiting Fuse | ABB CIL | up to 23kV for individual MV capacitor unit fusing | fuse ranges 5.5kV, 8.3kV, 15.5kV and 23kVANSI Indoor Current Limiting Fuse ABB CIL

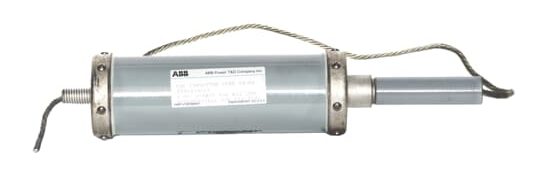

ANSI Indoor Current Limiting Fuse | ABB CLC | up to 4.3kV for unit fusing of LV single and 3 phase capacitors | MV fuses designed for indoor use or in an enclosure protected from outdoor weather conditions | rated continuous current 25-175AANSI Indoor Current Limiting Fuse ABB CLC

ANSI Outdoor Current Limiting Fuse | ABB COL | up to 23kV for individual MV capacitor units in outdoor stacking equipment | MV capacitor fuses 8-80A with ability to interrupt inductively limited faultsANSI Outdoor Current Limiting Fuse ABB CLC

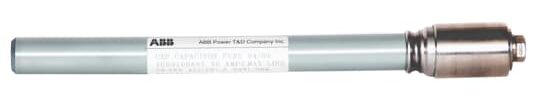

ANSI Outdoor Expulsion Fuse | ABB CXP | up to 25kV for individual capacitor units in outdoor standard MV electrical equipment | 8kV, 15/20kV and 25kV, 100A | MV fuse for individual capacitor unitsANSI Outdoor Expulsion Fuse ABB CXP

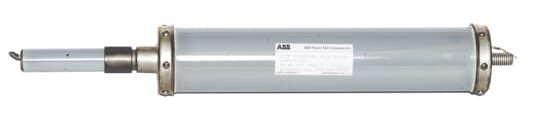

ANSI Outdoor Current Limiting Fuse | ABB CLXP | up to 18.2kV for outdoor MV capacitor banks with multiple parallel units | 5.5-18.2 kV, 15-43A MV fuse |ability to disconnect failed capacitor unit from circuitANSI Outdoor Current Limiting Fuse ABB CLXP

Distribution Transformer Protection

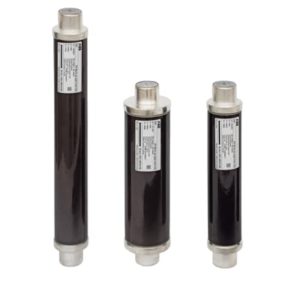

IEC Current Limiting Back Up Fuse ABB CEFIEC Current Limiting Back Up Fuse ABB CEF-SIEC Current Limiting Back Up Fuse ABB CEF-OT

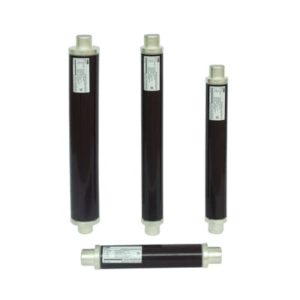

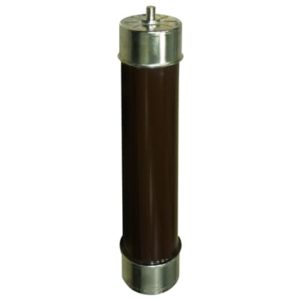

IEC Current Limiting Back-Up Fuse | ABB CEF | 3.6kV / 7.2-36kV with Temperature Control Unit (TCU)IEC Current Limiting Back-Up Fuse | ABB CEF-S | 12kV, 24kV and 30/40.5kV with Temperature Control Unit (TCU), superior performance for fault currents within 100 msIEC Current Limiting Fuse-Link | ABB CEF-OT | 12kV/24kV, can work inside a transformer tank, immersed in transformer oil

Motor Circuit Fuse PRotection

IEC Current Limiting Back-Up Fuse | ABB CMF | 3.6kV – 12kV, fuse protection of MV motor circuits against thermal and dynamic effects of short-circuit currentsIEC Current Limiting Fuse Link ABB CMF

Voltage Transformer Fuse Protection

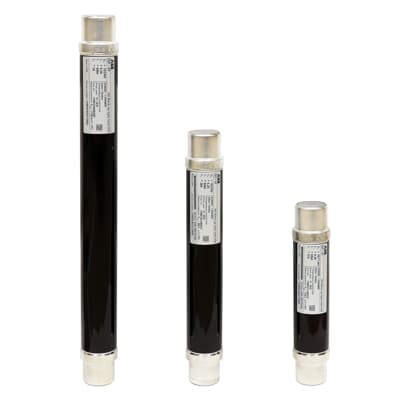

IEC Current Limiting Fuse Link ABB CEF-VTIEC Current Limiting Fuse Link ABB WBP
IEC Current Limiting Back-Up Fuse | ABB CEF-VT | 6kV – 24kV, protection against electrical circuit faults in MV voltage transformersIEC Current Limiting Back-Up Fuse | ABB WBP | 7.2kV – 36kV, protection against faults in MV voltage transformers

Railway DC System Protection

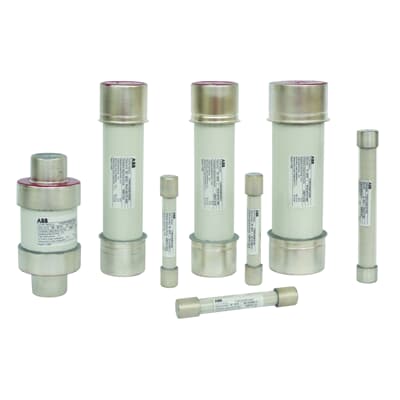

IEC Railway DC Fuse-Link | ABB WBT | MV circuit protection of traction substation and electric traction rolling stock equipmentIEC Railway DC Fuse Link ABB WBT
MV Fuses

MV Fuses | Over-voltage & Short-circuit Protection

➡ Contact us for competitive prices on ABB Fuses, Surge Arresters & Medium Voltage Electrical Equipment.

Thorne & Derrick distribute the complete range of ABB Medium & High Voltage Fuses (MV-HV) for the protection of 11kV/33kV switchgear, transformers, cables and substations.


Fuses – DISTRIBUTORS, STOCKISTS & SUPPLIERS

Thorne & Derrick provide competitive prices and fast delivery from UK and European stock for the complete range of ABB Medium Voltage Electrical Products – we distribute the most extensive range of LV HV Jointing, Earthing, Substation & Electrical Eqpt to the Power Transmission & Distribution industry in the onshore and offshore wind, solar, rail, oil/gas, data centre, battery storage and utility sectors. We service UK and international clients working on underground cables, overhead lines, substations and electrical construction at 11kV/33kV and up to EHV transmission and distribution voltages.

View the complete ABB MV ranges of Fuses ➡

ABB Fuse GroupRated Voltage (kV)Rated Current (Amps)Fuse ClassLength “e” (mm)
CEF3/7.2kV6.3-125Back-up192
CEF3/7.2kV6.3-200Back-up292
CEF6/12kV6.3-125Back-up292
CEF6/12kV6.3-200Back-up442
CEF10/17.5kV6.3-125 (RC110*)Back-up367
CEF10/17.5kV6.3-125 (RC87*)Back-up292
CEF10/17.5kV6.3-125Back-up442
CEF10/24kV6.3-125 (RC105*)Back-up442
CEF10/24kV6.3-125Back-up537
CEF10/25.8kV40-63Back-up292
CEF20/36kV6.3-63Back-up537
CEF-S6/12kV10-63Back-up „fast“292
CEF-S10/24kV10-50Back-up „fast“442
CEF-S30/40.5kV6.3-63Back-up „fast“537
CMF3.6kV100-315Back-up292
CMF7.2kV63-315Back-up442
CMF12kV63-200Back-up442
CMF-BS-B3.6kV100-315Back-up400
CMF-BS-B7.2kV63-315Back-up553
CMF-BS-B12kV63-200Back-up553
CMF-BS-C3.6kV100-315Back-up400
CMF-BS-C7.2kV63-315Back-up553
CMF-BS-C12kV63-200Back-up553
CMF-BS-D3.6kV100-315Back-up419
CEF-VT3/7.2kV0.5-1Back-up192/292
CEF-VT6/12kV0.5-6.3Back-up192/292
CEF-VT10/17.5kV0.5-6.3Back-up192/292
CEF-VT10/24kV0.5-6.3Back-up292/292
WBP, WBP-67.2kV0.5-3.15Back-up210
WBP, WBP-1012kV0.5-3.15Back-up250
WBP, WBP-2024kV0.5-3.15Back-up310
WBP, WBP-3036kV0.4-3.15Back-up385
WBP40.5kV2,4Back-up440
CEF-OT12/24kV5-50Back-up359
CEF-OT12/24kV5-50Back-up359
