3M Scotch 2200 Vinyl Mastic Pad

3M Scotch 2200 Vinyl Mastic Pad

3M Scotch 2200 Vinyl Mastic Pad

3M Scotch 2200 Vinyl Mastic Pad is a self-fusing, rubber based insulating compounds, laminated to a flexible, all-weather grade vinyl (PVC) backing – Scotch mastic tape has excellent resistance to abrasion, moisture, alkalis, acid, copper corrosion and varying weather conditions (including sunlight).

3M Scotch 2200 designed to insulate and moisture-seal all connections up to 600 volts including cable joints.

If you would like this product in tape form please see 3M Scotch 2210.

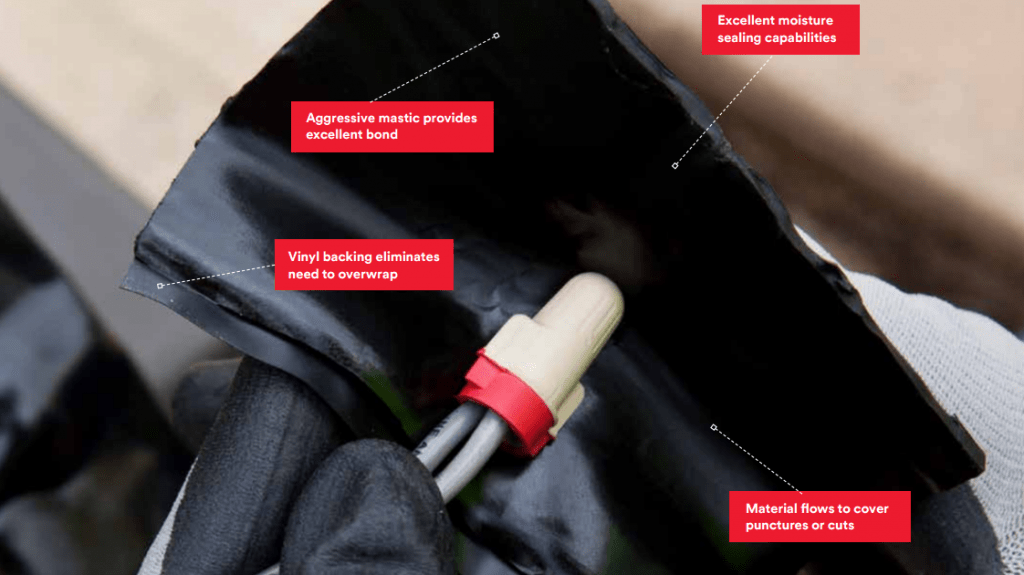

3M Scotch 2200 2210 Vinyl Mastic Pads & Rolls - seal, insulate and protect low voltage cables and connections against moisture and water

3M Scotch 2200 2210 Vinyl Mastic Pads & Rolls – seal, insulate and protect low voltage cables and connections against moisture and water

3M Scotch 2200 Vinyl Mastic Pad Features

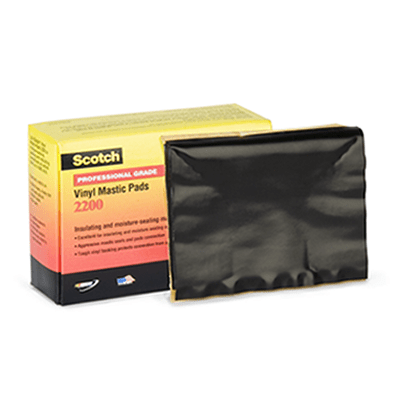

  • 3M Scotch 2200 Vinyl Mastic Pad - ex stock

    3M Scotch 2200 Vinyl Mastic Pad – ex stock

    Scotch 2200 with polyvinyl chloride (PVC) backing

  • Compatible rubber mastic
  • Flexible over wide range of temperatures
  • 3M Scotch 2200 is highly resistant to ultraviolet light
  • Suitable for indoor or outdoor application
  • Supplied in pre cut pad form

3M SCOTCH 2200 – Applications

  • Bolted connections
  • Service drops
  • Traffic signal wire connection
  • Lighting connections
  • Transformer bushing protection
  • Grounding rod connection protection
  • Terminal protection
  • Cable end sealing
  • Secondary compression connection

3M Scotch 2200 Vinyl Mastic pad Technical Specification

Colour Black
Thickness 3.2mm
Temperature Range Applicable at temperatures ranging from -18°C (0°F) to 38°C (100°F) without loss of physical or electrical properties
Mastic Composition Highly stable synthetic elastomers and resins
Backing (Material Type) All weather polyvinyl chloride (PVC) plastic
Width x Length 114mm x 165mm
Dielectric Strength 11kV/mm
Breaking Strength 35.3N/10mm
Elongation 200%
Insulation Resistance ASTM-D257 >1,000,000 megohms
Water Absorption ASTM-D570 .75%
Adhesion to Polyethylene and Steel 22N/10mm width



âž¡ T&D stock and are suppliers of 3M Scotch 2200 Pad.

Data Sheets
