EA Technology UltraTEV Detector 2 | Voltage Detectors | LV Low Voltage

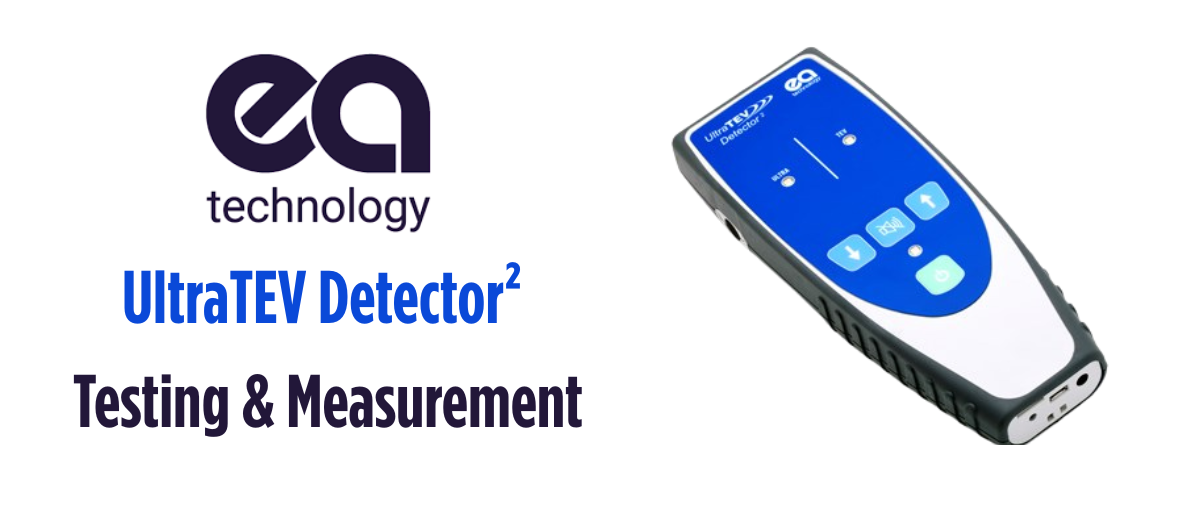

EA Technology UltraTEV Detector 2
The UltraTEV Detector² is a state-of-the-art electrical testing instrument designed for the early detection of partial discharge (PD) activity in low-voltage electrical assets. Utilising dual-sensor technology, it offers a reliable “first-pass” assessment to identify potential faults before they escalate into costly failures.
The UltraTEV Detector² is the latest upgrade to the award-winning UltraTEV range of electrical testers. UltraTEV Detector² helps you to meet the requirements of Health and Safety Executive ‘HSG230 Keeping electrical switchgear safe’ that states ‘You should assess the switchgear and the electrical network to identify any potential risks and problems’.

EA Technology UltraTEV Detector² – Key Features & Benefits
- Dual-Sensor Technology – TEV & ultrasonic sensors detect internal and surface partial discharge for accurate early fault detection
- Clear LED Indicators – Green (no PD), Amber (monitor), Red (immediate investigation required) for quick visual assessment
- Audio Feedback – Integrated audio output helps differentiate PD signals from ambient noise
- User-Friendly Design – Lightweight, ergonomic, one-button operation for fast, reliable inspections
- Comprehensive Kit – Includes clip-on headset, carrying case, mains and car chargers, plus Quick Start Guide
- Long Battery Life – Over 10 hours of continuous use from rechargeable lithium-ion battery
- Robust & Portable – Compact design for easy transport and operation in low-voltage substations
- Wide Operating Range – Effective in temperatures from 0°C to 55°C, ideal for various environments
Features
- Dual-sensor technology (Ultrasonic & TEV)
- Pre-set thresholds for PD activity
- Audio output for PD vs noise differentiation
- LED indicators (Green, Amber, Red)
- One-button operation
- Portable & ergonomic design
Benefits
- Detect surface & internal PD quickly and safely
- Instant alerts when PD exceeds safe levels
- Accurate readings even in noisy environments
- Quick visual status via LED indicators
- Fast start-up and simple operation
- Everything needed in one portable kit
EA Technology UltraTEV Detector² – Technical Specifications
- Dimensions – 201 x 76 x 34 mm
- Weight – 0.4 kg
- Power Supply – Rechargeable Lithium-Ion battery
- Operating Time – 10+ hours continuous use
- Charging – Micro USB or car charger
- Audio Output – 3.5 mm headphone jack
- Operating Temperature – 0°C to 55°C
- Humidity – 0–90% RH (non-condensing)
- Included Accessories – Clip-on headset, carrying case, mains and car chargers, Quick Start Guide

UltraTEV Detector²
- Dual-sensor technology (TEV + Ultrasonic)
- Clear LED traffic light indicators (Green / Amber / Red)
- Audio output distinguishes PD from background noise
- Lightweight, ergonomic, simple one-button operation
- Battery life: 10+ hours
BUY NOW

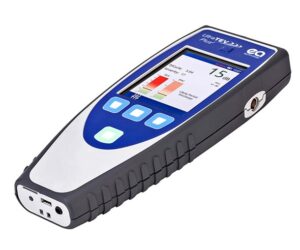

UltraTEV Plus²
- Advanced PD detection with guided survey mode
- Wi-Fi, USB, SD card & NFC for data
transfer
- Touchscreen with waveform & phase
displays
- Compatible with: HFCT, UHF sensors, locator
probes
- Battery life: ~8 hours
BUY NOW
EA Technology UltraTEV Detector² – Frequently Asked Questions
Q1: What is the EA Technology UltraTEV Detector² used for?
A1: It is used for detecting partial discharge in low-voltage electrical equipment. |
Q2: How does the dual-sensor technology work?
A2: It uses both an ultrasonic sensor and a TEV sensor to detect surface and internal partial discharge. |
Q3: How long does the battery last on a full charge?
A3: The rechargeable lithium-ion battery provides over 10 hours of continuous use. |

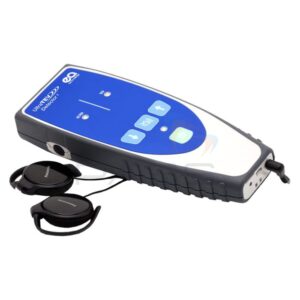

Q4: What is included in the UltraTEV Detector² kit?
A4: The kit includes the detector, clip-on headset, carrying case, mains and car chargers, and a Quick Start Guide. |
Q5: How do the LED indicators help interpret results?
A5: The LED colors indicate PD status: green = safe, amber = monitor, red = immediate investigation required. |
