Mueller AI-000515-X Portable Earthing Kit

Portable Earthing Kit | Protective Ground Clamps & Grounding Assemblies

Mueller AI-000515-X

Grounding Assembly

Contact Thorne & Derrick Sales for technical support, commercial quotation or to place an order for Mueller AI-000515- portable earthing kits/grounding assemblies.

Product Category – Ground & Grounding Clamps | Grounding Assemblies
Manufacturer Mueller
Portable Earthing Kit AI-000515-X includes:
2 x BU-138 2.4″ Smooth Aluminum “C” Clamp
2 x BU-138-F 4/0 Aluminum Ferrule
2 x BU-137 Orange Strain Relief Kit
4/0 Yellow Grounding Cable (AW80101)
The “X” is the part number represents length in feet. Standard
lengths are 6’, 8’, 10’, and 15′. Other lengths available upon request.
ASTM Grade 3
Withstanding Rating
Short Circuit Rating 43kA @ 15 Cycles
Short Circuit Rating 30kA @ 30 Cycles
Colour Yellow
Rating F855
Wire Awg 4/0
View complete range of Ground | Grounding Clamps

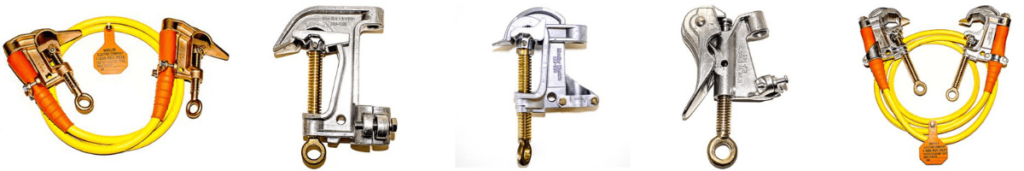

➡ Mueller are leading manufacturers of Ground Clamps and Protective Grounding Cable Sets, also referred to as Portable Earthing Kits.

Linesmens Grounding Assemblies

Linemen utilise heavy weight grounding equipment for use on overhead power lines to ensure electrical safety and maintenance – Mueller certified and tested (ASTM-F2249) light weight utility grounding assemblies feature “C” type clamps smooth jaws and eye screws. These portable earthing cables offer a light weight solution while providing the grounding required for safe work on de-energized medium/high voltage overhead lines.

In the UK, extra high voltage (EHV) overhead power lines (400kV and 275kV) are owned and maintained by National Grid. Although some 132kV power lines are owned by National Grid, most of these (and all lower voltage overhead lines – 33kV, 11kV, 415 volts and 230 volts) are owned by the power companies.
