Mueller BU-139 Ground Clamps

Ground Clamps BU-139 | Protective Ground Clamps

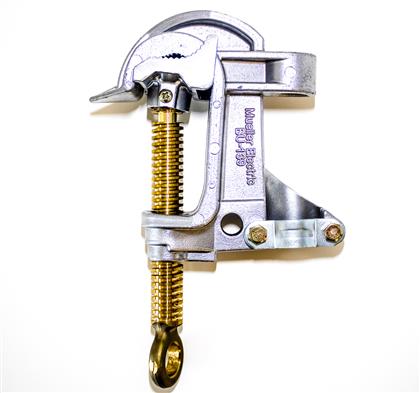

Mueller BU-139

Contact Thorne & Derrick Sales for technical support, commercial quotation or to place an order for Mueller BU-139 type ground clamps.

• Product Category – Ground & Grounding Clamps
• Manufacturer Mueller
• Clamp BU-139
• ASTM F855 Type 1 Design C
• 1.5″ “C” Clamp
• ASTM Grade / Class: 2 / B
• Serrated Jaws
• For use on cables: 0.16″ to 1.5″
• Continuous Current Rating: 400 RMS AMPS, 60 Hz
• Uses Grounding wire up to 1/0 (AW80091)
• Accepts M16 x 1.75 Threaded Ferrules
• Ground Clamp Weight: 873.4 g
• View complete range of Ground | Grounding Clamps

➡ Mueller are leading manufacturers of Ground Clamps and Protective Grounding Cable Sets, also referred to as Portable Earthing Kits.

Mueller BU-139

• Clamp Form C-Clamp
• Clamp Material Aluminium
• Wire Attachment Ferrule

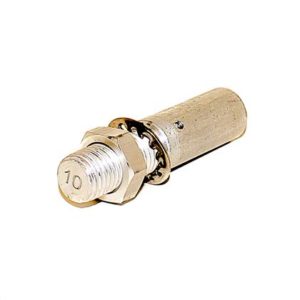

Mueller BU-139-F Grounding Ferrule

Grounding ferrules are used to create a low resistance connection through compressing the cable strands to the threaded stud that screws into the tapped boss on the clamp.

• Use on aluminum body clamps


  Mueller BU-139- F

• Unshrouded
• Nut and Lock washer is included as it increases contact pressure
• Manufactured with a M16 x 1.75 x 35mm threaded stud
• ASTM Grade 2
• Size: 1/0
• Burndy Die Number: U243
• Weight: 0.1 lbs
• Rating F855
• Wire Attachment Crimp
• Wire Awg 1/0

View the complete range of Grounding Clamps manufactured by Mueller.

Data Sheets

• Mueller BU-139 Ground Clamps
  Download
• Mueller BU-139- F Grounding Ferrule
  Download
