Cable Terminations & Minimum Air Clearances for Bushings

Published 11 May 2021

Cable Terminations & Minimum Air Clearances for Bushings

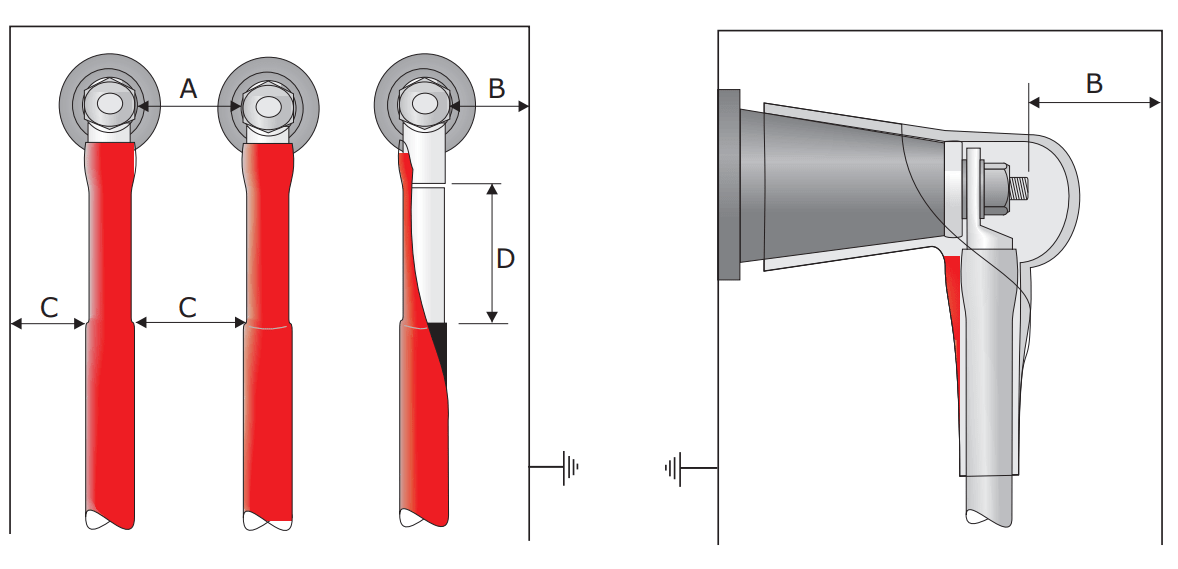

  • Check the cable box for minimum clearances and refer to table 1 below.
  • If actual dimension ‘A’ and ‘B’ is less than the value given, a bushing boot must be fitted.
Table 1 – Minimum Air Clearances for Terminations in Cable Boxes in Accordance with BS 164 Class A.
Maximum System Voltage, Phase to Phase (kV) 7.2 12 24 36
Minimum Air Clearance Between Live Metal ‘A’ (mm) 90 127 242 356
Minimum Air Clearance Between Live Metal and Earth ‘B’ (mm) 65 75 140 222



Table 2 – Minimum Air Clearances for Terminations in Cable Boxes in Accordance with BS 164 Class A. with Bushing Boots Fitted
Maximum System Voltage, Phase to Phase (kV) 7.2 12 24 36
Minimum Air Clearance Between Live Metal ‘A’ (mm) 45 75 100 125
Minimum Air Clearance Between Live Metal and Earth ‘B’ (mm) 32 60 75 100



Table 3 – Minimum Clearance Between Cores and Between Cores and Earth
Maximum System Voltage, Phase to Phase (kV) 7.2 12 24 36
Minimum Clearance ‘C’ (mm) Measured From top of Stress Tubes 15 20 40 50



Table 4 – Minimum Clearance Between top of The Stress Control Tubing and Base of the Cable Lug.
Maximum System Voltage, Phase to Phase (kV) 7.2 12 24 36
Minimum Clearance ‘D’ (mm) 30 50 95 250



Table 5 – Impulse Voltage Withstand for Indoor Terminations, Installed With Bushing Boots, on Bushings in Accordance with BS2562.
Maximum System Voltage, Phase to Phase (kV) 7.2 12 24 36
Impulse Withstand Voltage (kV) 75 95 125 170
