ANSI Connectors | Medium Voltage Power Cable Connectors for Transformers & Switchgear Bushings from Cooper Power Systems
Cooper Power Systems Separable Connectors (ANSI) & Bushings are rated for 15kV, 25kV and 35kV medium voltage power systems in accordance with the following ratings. More Reading | ANSI Connectors | Screened Separable Connectors from Cooper Power Systems

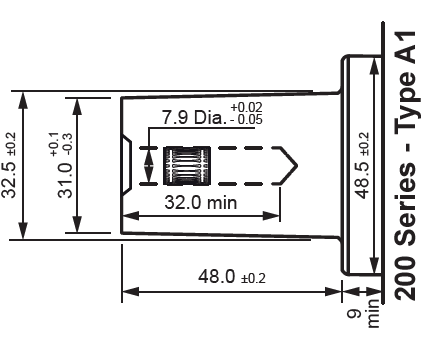

| 200 Series Connectors
Bushing Interface Type: A1 |
Cooper DB250, PPS24/250 |  |
| Connection Type | 7.9mm Plug-in Pin Contact | |
| Max Voltage Rating | 24kV | |
| Max Current Rating | 250A | |
| Complies with | EN50180 & EN50181 | |
| Connectors | DE250 / DE251 / DS250 / DS251 | |

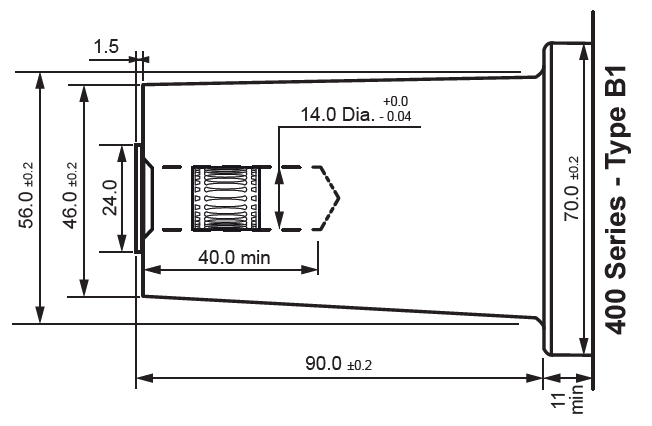

| 400 Series Connectors
Bushing Interface Type: B1 |
Cooper DB400, PPS36/400 |  |
| Connection Type | 14mm Plug-in Pin Contact | |
| Max Voltage Rating | 36kV | |
| Max Current Rating | 400A | |
| Complies with | EN50180 & EN50181 | |
| Connectors | DE400 / DE436 / DT400P / DT436P | |

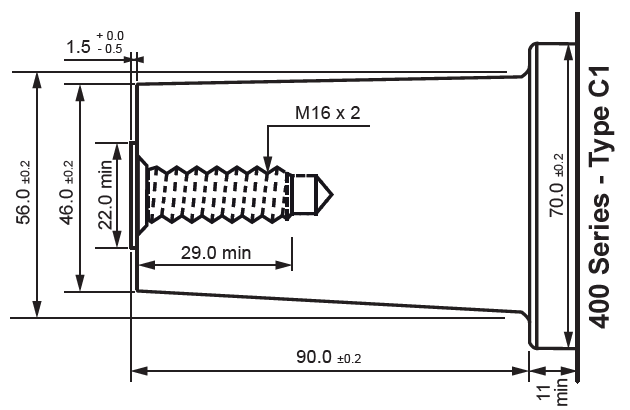

| 400 Series Connectors
Bushing Interface Type: C1 |
Cooper DB630, PPS36/630 |  |
| Connection Type | M16 (Bolted) | |
| Max Voltage Rating | 36kV | |
| Max Current Rating | 630A | |
| Complies with | EN50180 & EN50181 | |
| Connectors | DTB624&636 / DTS624&636 / DTB1242 & DTS1242 | |
| Interface type C2 (1250A) also available upon request | ||

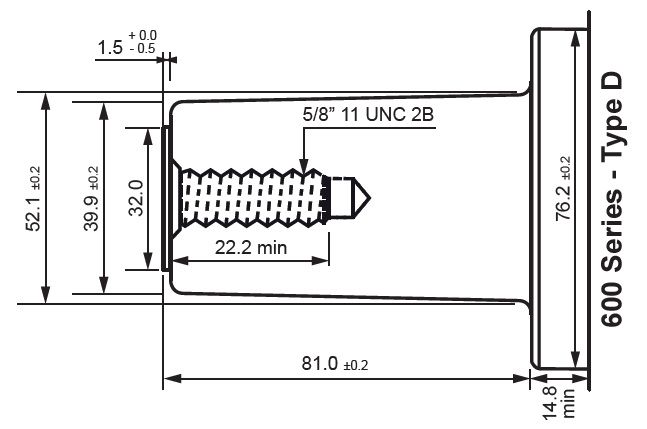

| 600 Series Connectors
Bushing Interface Type: D |
Cooper 15BT-OB |  |
| Connection Type | 5/8 (Bolted), M16 also available | |
| Max Voltage Rating | 24kV | |
| Max Current Rating | 800A (Al) / 1250A (Cu) | |
| Complies with | HD629.1, IEC60525-4, & ANSI/IEE 386 & 404 | |
| Connectors | DE400 / DE436 / DT400P / DT436P | |
| Interface to D1 (800A) & D2 (1250A), EN50180 / EN50181 | ||

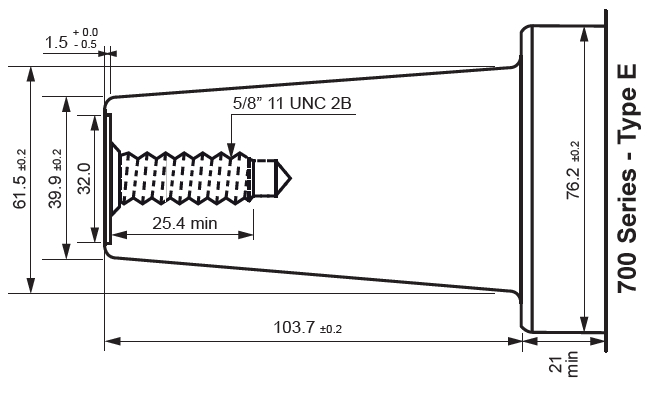

| 700 Series ConnectorsÂ
Bushing Interface Type: E |
Cooper 35BT-OB |  |
| Connection Type | 5/8 (Bolted) | |
| Max Voltage Rating | 36kV | |
| Max Current Rating | 800A (Al) / 1250A (Cu) | |
| Complies with | HD629.1, IEC60525-4, & ANSI/IEE 386 & 404 | |
| Connectors | 35BT Bol-T (DT635 / DT638) | |
| Interface to E1 (800A) & E2 (1250A), EN50180 / EN50181 Interface types F1, F2, & F3 also available upon request |
||
