Cembre CP-P Insulated Chain Terminals – Pin
Cembre CP-P
Cp range Insulated chain TERMINALS – pin
Crimp Type – Pin Chain Terminal Halogen FreeÂ

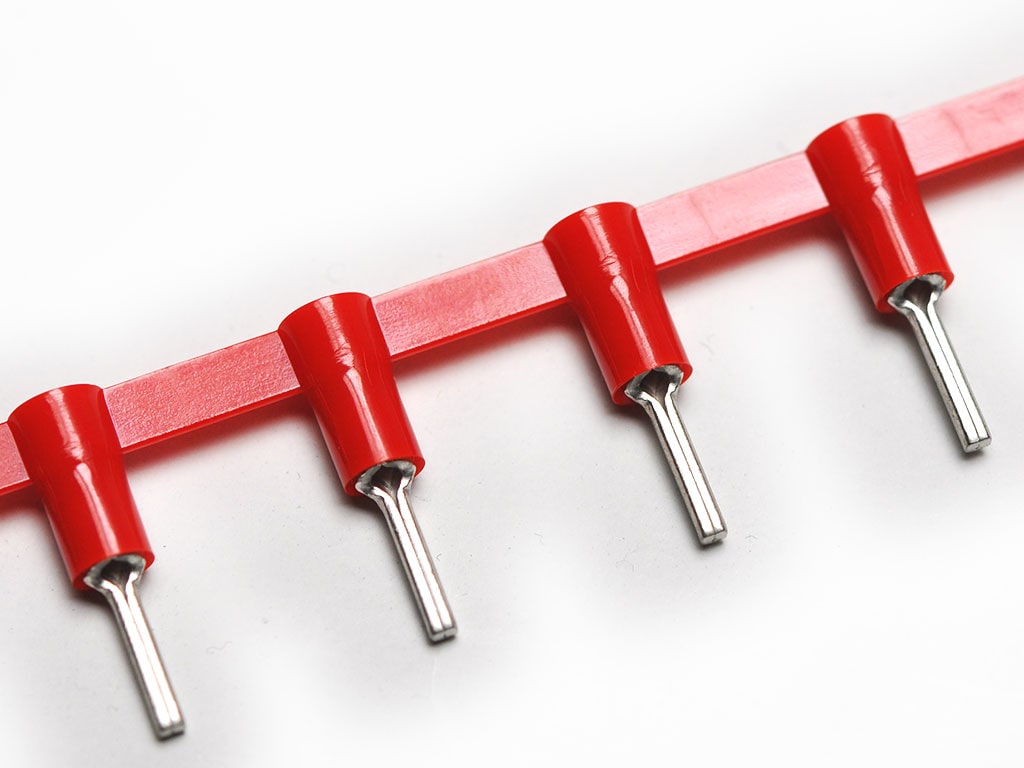

The Cembre CP range of crimp terminals have been designed for the improved safety and reliability of electrical connectors – manufactured by Cembre for use with production equipment to provide a quick and reliable crimped joint. The polycarbonate insulation is halogen free, self extinguishing thermoplastic material class VO (UL 94) – unique funnel shaped entry of the insulation sleeve guarantees total insertion of the copper cable conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
Operating temperature range is -20 °C to +115°C (surge +130°).
The connectors are manufactured from electrolytic Copper Cu-ETP CWOO4A according to UNI EN 13599 and are tin plated with a minimum thickness of 3µm.
Main characteristics of the PC sleeves:
- Dielectric Strength (KV/mm): > 30
- Volume Resistivity (Ω/cm): >1016
- Max Operating Temperature (°C): 115-130
- Flammability (UL-94): V0
- Density (g/cm3): 1,2
- Water Absorption (%): 0,15
- Breaking Load (N/mm2): > 65
The cable connectors can be stored at a minimum temperature not below – 40°C.
Cembre CP-P
SELECTION TABLE FOR Chain TERMINALS

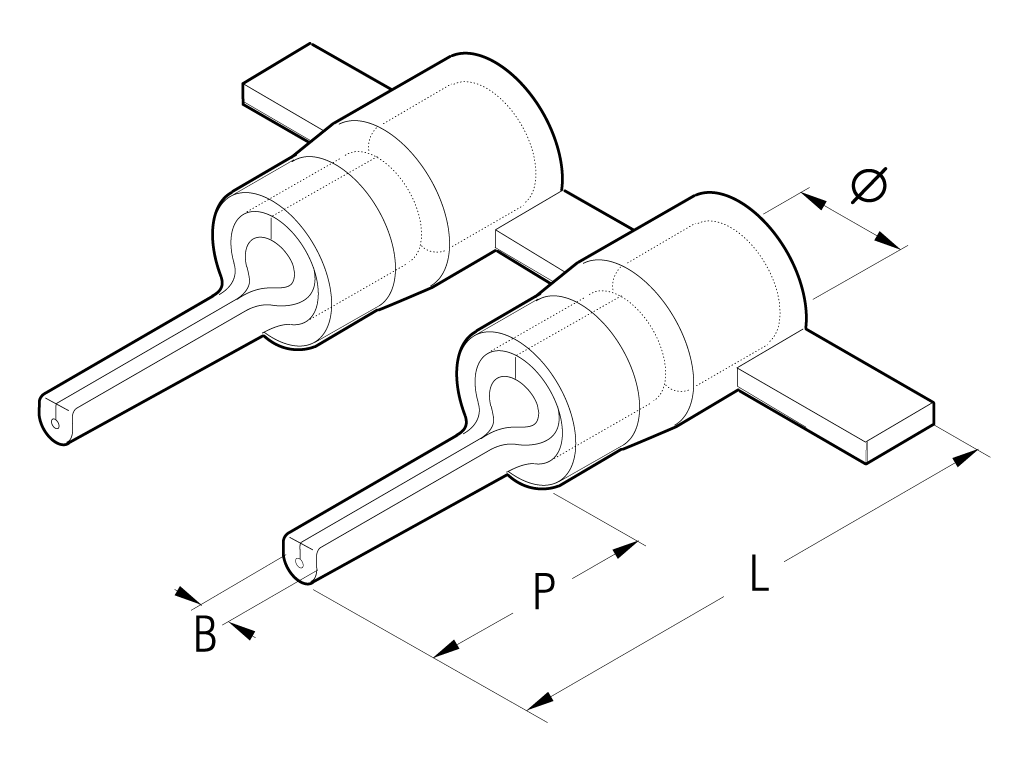

| Conductor Size sqmm (AWG) | Insulated Cover Colour | Cembre Type | Dimensions mm | Quantity Crimps per Box/Bag | |||
| ∅ | B | P | L | ||||
| 0.25÷1.5 (22÷14) | RED | CRP-P 8 | 4.0 | 1.6 | 8.0 | 17.9 | 2000 |
| CRP-PÂ 10 | 4.0 | 1.6 | 10.0 | 19.9 | |||
| CRP-P 12 | 4.0 | 1.6 | 12.0 | 22.1 | |||
| 1.5÷2.5 (16÷14) | BLUE | CBP-P 8 | 4.9 | 1.8 | 8.0 | 17.9 | 1750 |
| CBP-P 10 | 4.9 | 1.8 | 10.0 | 19.9 | |||
| CBP-P 12 | 4.9 | 1.8 | 12.0 | 21.9 | |||
| 4÷6 (12÷10) | YELLOW | CGP-P 10 | 6.6 | 2.2 | 10.0 | 24.5 | 1250 |
| CGP-P 12 | 6.6 | 2.2 | 12.0 | 26.7 | |||
| CGP-P 14 | 6.6 | 2.2 | 14.0 | 28.7 | |||
Tool for Cutting & Crimping Cables Manufactured by Cembre & Distributed by Thorne & Derrick
