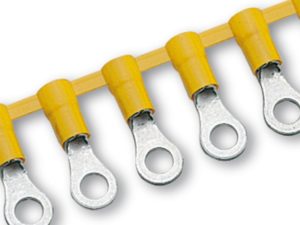

Cembre CP-M Insulated Chain Terminals – Ring
Cembre Chain Terminals – Ring
Cp range Insulated chain TERMINALS – ring
Crimp Type – Ring Chain Terminal Halogen FreeÂ
The Cembre CP range of crimp terminals have been designed for the improved safety and reliability of electrical connectors – manufactured by Cembre for use with production equipment to provide a quick and reliable crimped joint. The polycarbonate insulation is halogen free, self extinguishing thermoplastic material class VO (UL 94) – unique funnel shaped entry of the insulation sleeve guarantees total insertion of the copper cable conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
Operating temperature range is -20 °C to +115°C (surge +130°).
The connectors are manufactured from electrolytic Copper Cu-ETP CWOO4A according to UNI EN 13599 and are tin plated with a minimum thickness of 3µm.
Main characteristics of the PC sleeves:
- Dielectric Strength (KV/mm): > 30
- Volume Resistivity (Ω/cm): >1016
- Max Operating Temperature (°C): 115-130
- Flammability (UL-94): V0
- Density (g/cm3): 1,2
- Water Absorption (%): 0,15
- Breaking Load (N/mm2): > 65
The cable connectors can be stored at a minimum temperature not below – 40°C.
Cembre CP-M
SELECTION TABLE FOR Chain TERMINALS
| Conductor Size sqmm (AWG) | Insulated Cover Colour | Cembre Type | ∅ Stud mm | Dimensions mm | Quantity Crimps per Box/Bag | |||||
| ∅ | B | M | N | L | d | |||||
| 0.25÷1.5 (22÷16) | RED | CRP-M 3 | 3 | 4.0 | 5.6 | 4.5 | 2.8 | 17.4 | 3.2 | 2000 |
| CRP-M 3.5 | 3.5 | 4.0 | 5.6 | 4.5 | 2.8 | 17.4 | 3.7 | 2000 | ||
| CRP-M 3.5/1 | 3.5 | 4.0 | 6.2 | 7.1 | 3.1 | 20.2 | 3.7 | 2000 | ||
| CRP-M 4 | 4 | 4.0 | 7.0 | 6.5 | 3.5 | 20.1 | 4.3 | 2000 | ||
| CRP-M 4/3 | 4 | 4.0 | 7.8 | 7.1 | 3.9 | 21.1 | 4.3 | 2000 | ||
| CRP-M 5 | 5 | 4.0 | 7.8 | 7.1 | 3.9 | 21.1 | 5.3 | 2000 | ||
| CRP-M 6 | 6 | 4.0 | 9.4 | 8.1 | 4.7 | 22.9 | 6.4 | 2000 | ||
| CRP-M 6/1 | 6 | 4.0 | 12.0 | 10.3 | 6.0 | 26.4 | 6.4 | 2000 | ||
| CRP-M 7 | 7 | 4.0 | 9.4 | 8.1 | 4.7 | 22.9 | 7.2 | 2000 | ||
| CRP-M 8 | 8 | 4.0 | 12.0 | 10.3 | 6.0 | 26.4 | 8.4 | 2000 | ||
| 1.5÷2.5 (16÷14) | BLUE |
CBP-M 3 | 3 | 4.9 | 5.6 | 5.0 | 2.8 | 17.9 | 3.2 | 1750 |
| CBP-M 3.5 | 3.5 | 4.9 | 5.6 | 5.0 | 2.8 | 17.9 | 3.7 | 1750 | ||
| CBP-M 3.5/1 | 3.5 | 4.9 | 6.2 | 6.5 | 3.1 | 19.6 | 3.7 | 1750 | ||
| CBP-M 4 | 4 | 4.9 | 8.0 | 6.5 | 4.0 | 20.6 | 4.3 | 1750 | ||
| CBP-M 5 | 5 | 4.9 | 8.0 | 7.5 | 4.0 | 21.6 | 5.3 | 1750 | ||
| CBP-M 6 | 6 | 4.9 | 9.4 | 8.6 | 4.7 | 23.4 | 6.4 | 1750 | ||
| CBP-M 6/1 | 6 | 4.9 | 12.0 | 10.3 | 6.0 | 26.4 | 6.4 | 1750 | ||
| CBP-M 7 | 7 | 4.9 | 10.0 | 7.8 | 5.0 | 22.9 | 7.2 | 1750 | ||
| CBP-M 8 | 8 | 4.9 | 12.0 | 10.3 | 6.0 | 26.4 | 8.4 | 1750 | ||
| 4÷6 (12÷10) | YELLOW |
CGP-M 3 | 3 | 6.6 | 8.0 | 8.1 | 4.0 | 26.2 | 3.2 | 1250 |
| CGP-M 3.5 | 3.5 | 6.6 | 8.0 | 8.1 | 4.0 | 26.2 | 3.7 | 1250 | ||
| CGP-M 4 | 4 | 6.6 | 9.0 | 8.1 | 4.5 | 26.7 | 4.3 | 1250 | ||
| CGP-M 5 | 5 | 6.6 | 9.0 | 8.1 | 4.5 | 26.7 | 5.3 | 1250 | ||
| CGP-M 6 | 6 | 6.6 | 11.0 | 11.1 | 5.5 | 30.7 | 6.4 | 1250 | ||
| CGP-M 6/1 | 6 | 6.6 | 11.0 | 8.1 | 5.5 | 27.7 | 6.4 | 1250 | ||
| CGP-M 7 | 7 | 6.6 | 11.0 | 11.1 | 5.5 | 30.7 | 7.2 | 1250 | ||
| CGP-M 8 | 8 | 6.6 | 13.6 | 12.1 | 6.8 | 33.0 | 8.4 | 1250 | ||
| CGP-M 8/1 | 8 | 6.6 | 11.0 | 8.1 | 5.5 | 27.7 | 8.4 | 1250 | ||
