Cembre F-FM Male/Female | Cembre F-B Bullet & Socket Connectors
Cembre F-FM | F-B
The Cembre cable terminals include a wide range of rings, forks, pins, blades and hooked blades designed to connect, terminate and crimp LV voltage wires and cables into electrical equipment 600/1000V.
male/FEMALE, bullet & socket CONNECTOR Cable Terminals
Crimp Type – Male/Female, Bullet & Socket Connector Terminals
- Manufactured from brass strip by Cembre
- Electrolytically tin plated
- Halogen free cable terminals
- Operating temperature range of cable terminals is between -20°C to +115°C (Surge +130°C)
- Polycarbonate insulated cable terminals which are partially reinforced with copper sleeve
- Certified according to EN 45545-2:2013
- UL94 Class Cable Terminal – VO Flammability
Recommended crimping tools are also available from Thorne & Derrick.
male/female Polycarbonate Insulated Cable Terminals
Cembre BF-FM 608
âž¡ View the complete range of polycarbonate insulated Male/Female Connector Terminals manufactured from Cembre in the following table:
| Cembre Terminal Type | Insulated Cover Colour | Cond. Size sqmm (AWG) | Tab Size | Quantity Terminals Box/Bag |
| RF-FM 608 | Red | 0.25 ÷ 1.5 | 6.35 x 0.8 | 1000/100 |
| BF-FM 608 | Blue | 1.5 ÷ 2.5 | 6.35 x 0.8 | 1000/100 |
Polycarbonate Insulated bullet & socket Cable Terminals

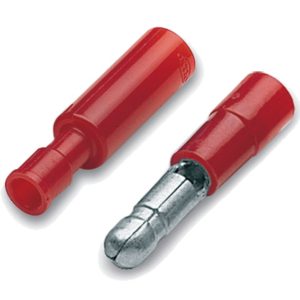

Cembre F-B | F-M
âž¡ View the complete range of polycarbonate insulated Bullet & Socket Connector Terminals manufactured from Cembre in the following table:
|  | Cembre Terminal Type | Insulated Cover Colour | Cond. Size sqmm (AWG) | Ø |
Quantity Terminals Box/Bag |
 |
RF-BM 4 | Red | 0.25÷1.5 (22÷16) | 4 | 2500/100 |
| RF-BF 4 | Red | 0.25÷1.5 (22÷16) | 4 | 800/100 | |
 |
BF-BM 5 | Blue | 1.5÷2.5 (16÷14) | 5 | 2000/100 |
| BF-BF 5 | Blue | 1.5÷2.5 (16÷14) | 5 | 800/100 |
