33kV Heat Shrink Straight Joint Kits By Tom Flavell
Published 20 Feb 2022

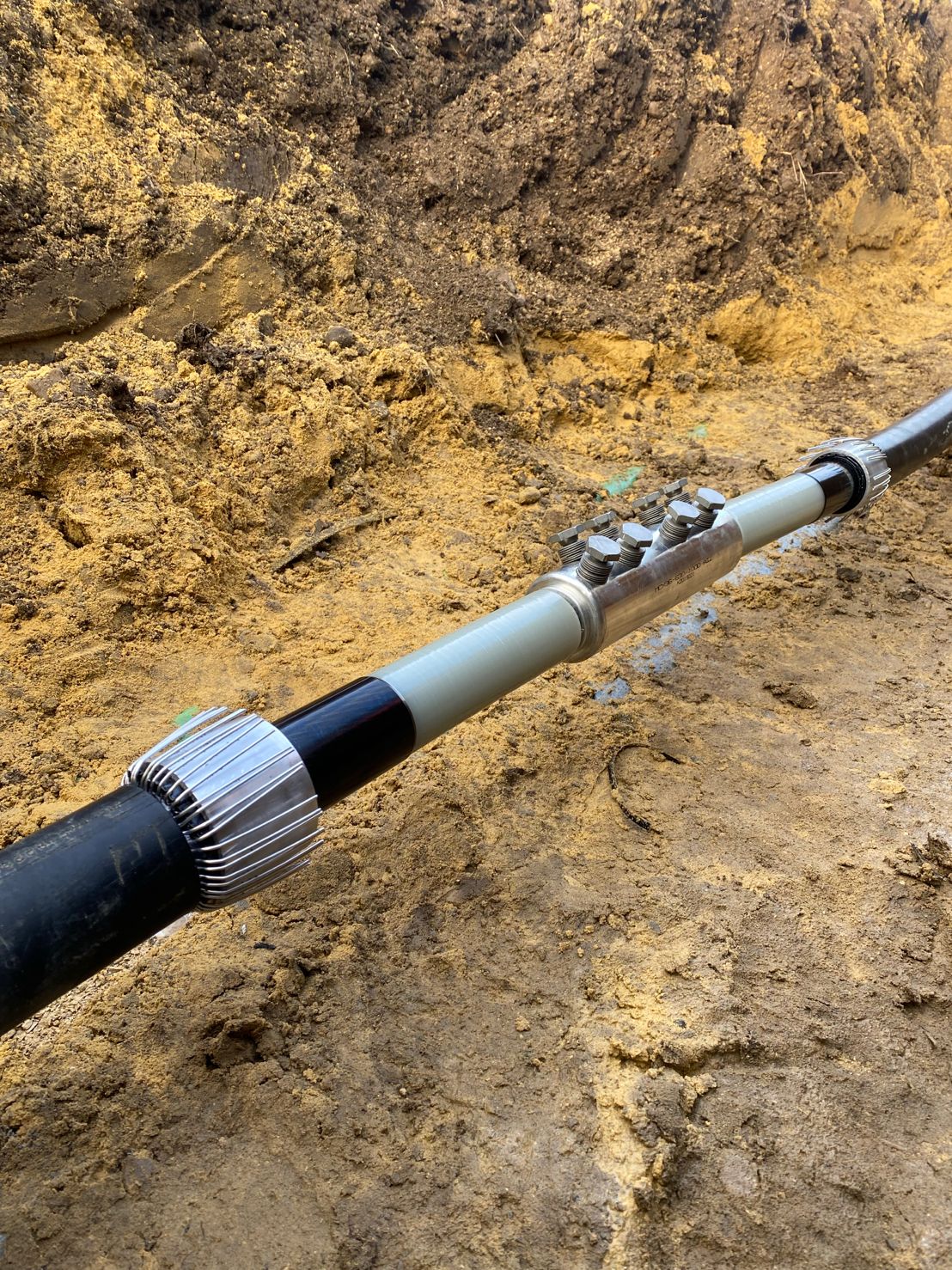

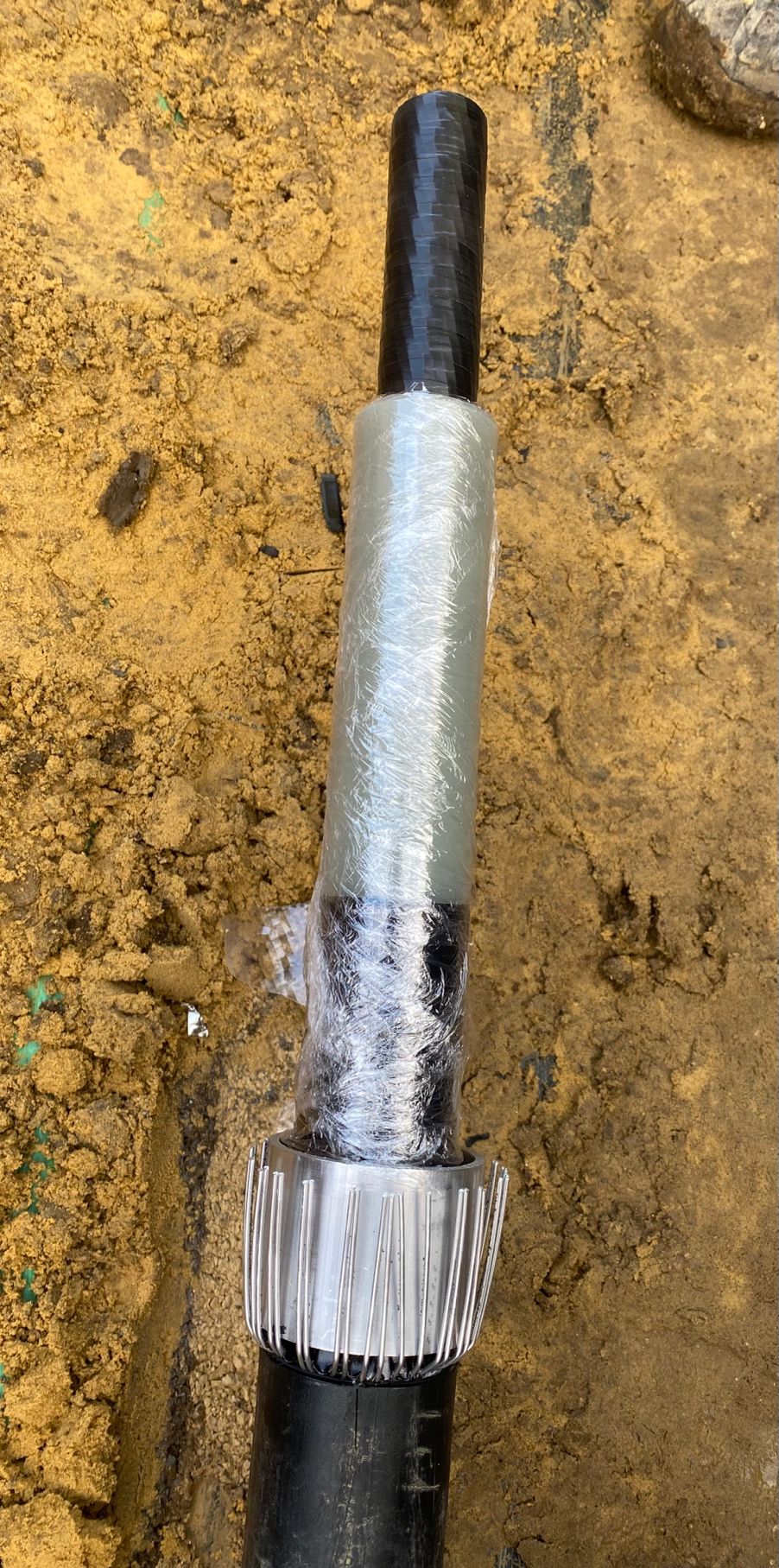

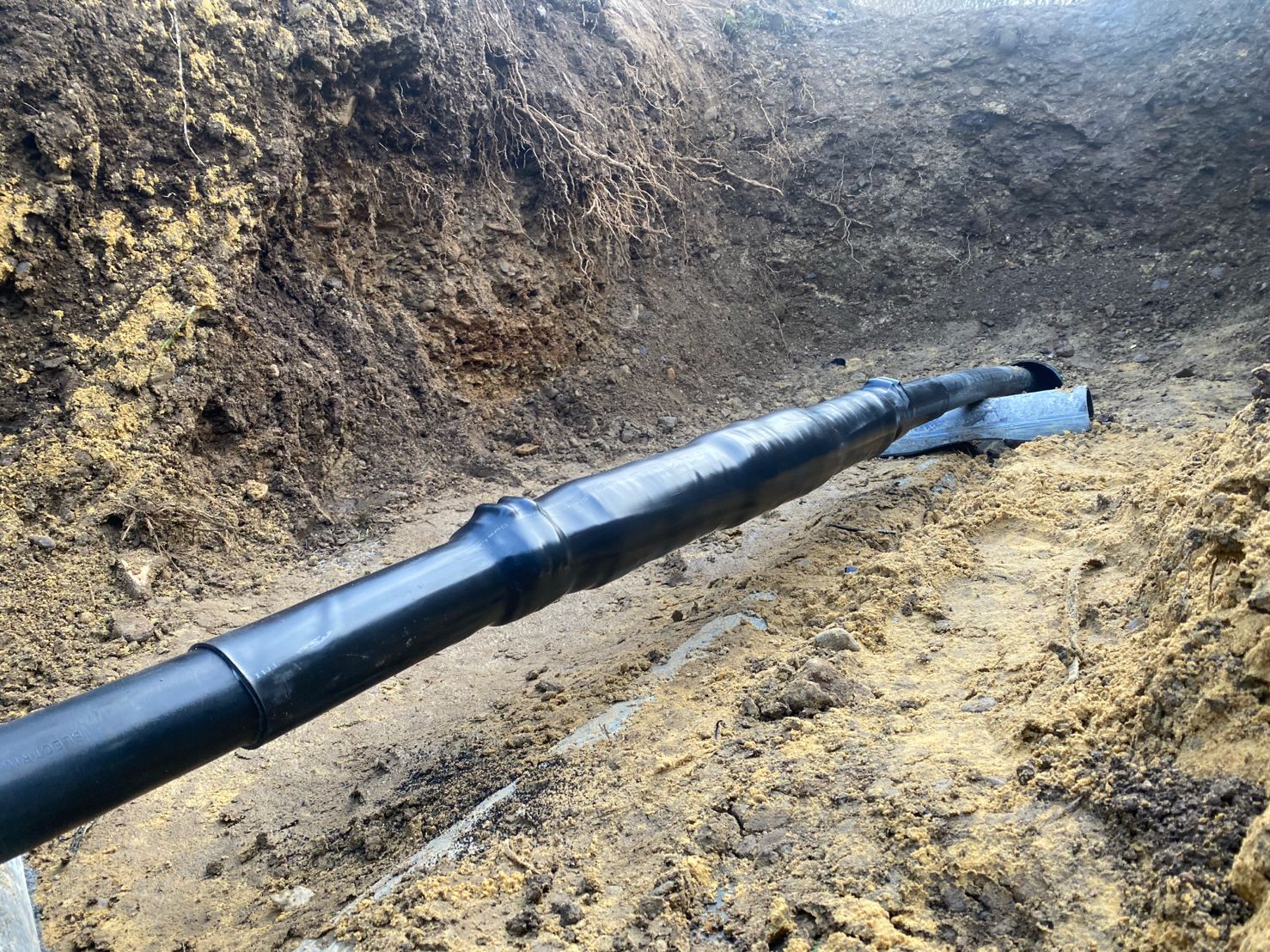

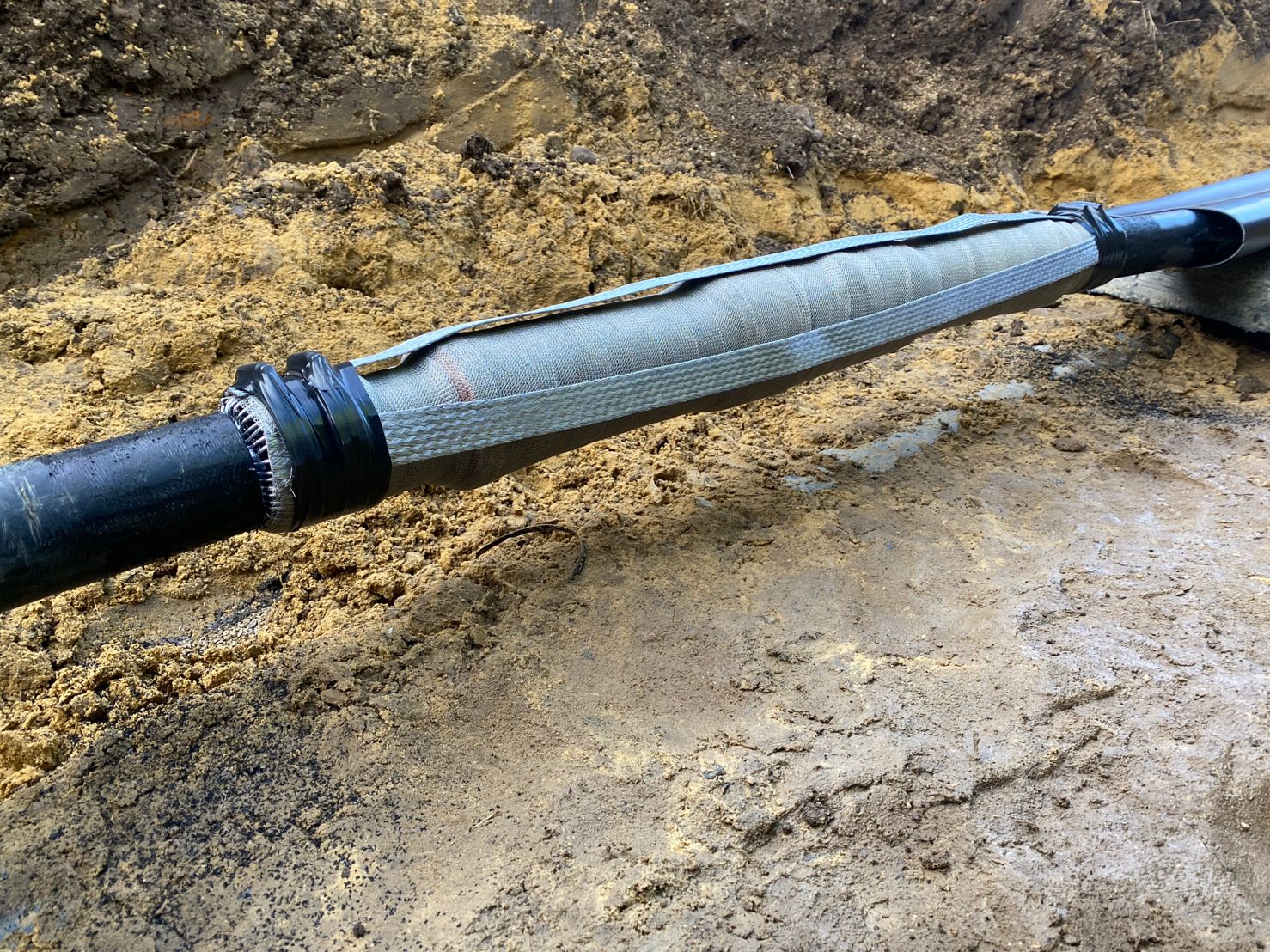

Image: Tom Flavell At Sinewave | 33kV 800sqmm Single Core XLPE AWA Straight Joint
33kV Cable Joints
- Manufacturer – SPS
- Cable Joint Type – Heat Shrink
- Configuration – Straight Joint
- Cable Voltage – 33kV
- Number of Cores – Single Core
- Cable Insulation – Polymeric XLPE EPR
- Conductors – 800sqmm
- Cable Type – XLPE AWA (Polymeric) BS6622
- Suit MV HV Power Cables
- Location – Cable Trench, Direct Burial, Cable Containment
HV cable joints are suitable for jointing medium/high voltage (MV-HV) 33kV single core polymeric cables (XLPE EPR) to DIN VDE 0276-620, BS6622, BS7870-4.10 and other international cable standards.
33kV cable joints use heat shrink tubes and suit 33kV single core polymeric (XLPE EPR) cables with 25sqmm to 800sqmm single core conductors (copper Cu and aluminium Al) – suitable for power cable jointing, repair and installation in ground, air or cable ducts.
