Live Line Electricity Voltage Alarm | CATU ALED3
Published 09 Mar 2021
Electrical Safety Equipment
CATU ALED3
Live Line Electricity Voltage Alarm

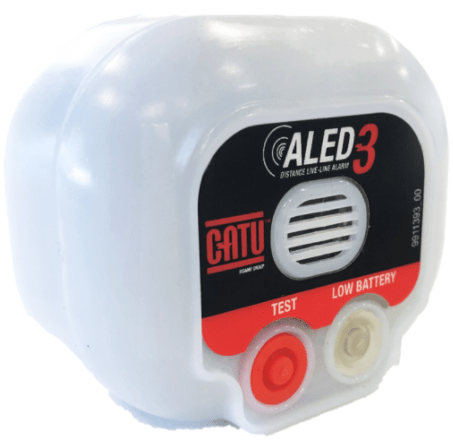

ALED3 from CATU is a distance live line electricity voltage alarm for ensuring the safety of operators while they are working within live powered environments.
The alarm will warn workers of the presence of an electric field from1kV to 66kV using a sound as well as a visual warning.
The ALED3 is compact and lightweight with a built in antenna and can be worn on a helmet, on the arm, on the belt, on the body. This live line electricity voltage alarm features a 360° detection sensor depending on the position of the device.
Live Line Voltage ALarm

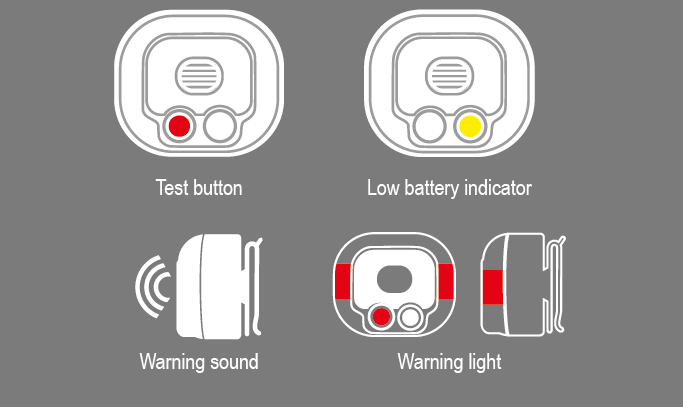

ALED3 Features
- The alarm is automatically triggered when the operator approaches an electric field and turns off when moved away from the source.
- 360º detection according to the positioning of the device which has multiple fixing possibilities (helmet, arms, belt, body).
- Compact and light with integrated antenna.
- Sound intensity: 75 dB
- Response time: < 1 s.
Live Line Electricity Voltage Alarm | CATU ALED3
CATU ALED3
Technical Specification
- Network voltage: 1-66 kV
- Frequency : 50-60 Hz
- Operating temperature: -5ºC / 45ºC
- Sound intensity: 75 dB
- Net weight: 85 g (including batteries).
- Dimensions: 66 x 56 x 39 mm.
- Protection index: IP64
- Power supply: 2 alkaline batteries AAA 1,5 V
- Standards: EN 61326-1: 2013 / EN 62311-1: 2008
- Marking: CE
| Distance | Phase/Earth | Phase/Phase |
| 1m | 1kV | 1.7kV |
| 2m | 2kV | 3.5kV |
| 3m | 5kV | 8.7kV |
| 4m | 10kV | 17.3kV |
| 4.5m | 14.5kV | 25.1kV |
| 5m* | 20kV | 34.6kV |
| 5.5m* | 27.5kV | 47.6kV |
| 6m* | 36kV | 62.4kV |
| Voltages given as an indication, obtained in laboratory conditions using single-phase voltage on a 2-metre bar at 1.5 metres from the ground. * Estimation based on trend line |
||
Blue LED signal lamps
CATU CD-129

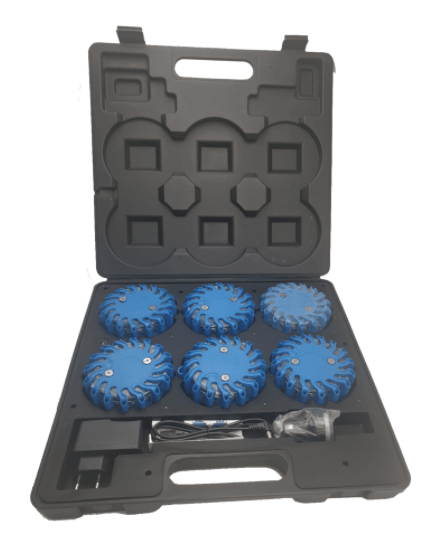

CATU CD-129 blue LED road flare signal lamps are used to alert and signal work on roads and railways. The LED signal lamps adhere to EN 61547 – IEC 61000-4-5:2014 and are supplied in a box which holds six 0.8 watt, 240 lumen LEDs and a 12V/24V car charger or 110V/220V wall charger.
When fully charged, the indicator light aside flares stop flashing and remain steady after 8 to 10 hours of usage. These blue LED signal lamps feature a simple start-up, several different lighting modes and are equipped with a magnet to enable the lamps to be fixed onto a metal surface.
CATU CD-129 have an impact resistant rating of IK07 and are waterproof to IP65.

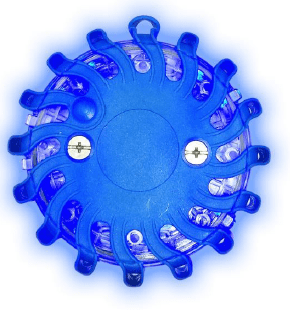

CATU CD-129 Blue LED Road Flare Lamps
T&D are the UK’s largest stockist of CATU Electrical Safety Equipment of products for underground, overhead line and substation safety at LV, MV and HV cable networks.
Insulating Gloves | Insulating Matting | Voltage Detectors | Arc Flash Clothing | Substation Safety | Portable Earthing LV MV HV
