Online Monitoring Unit For Measuring 5 Individual Dissolved Gases & Moisture – Transfix DGA 500
Published 07 Sep 2020

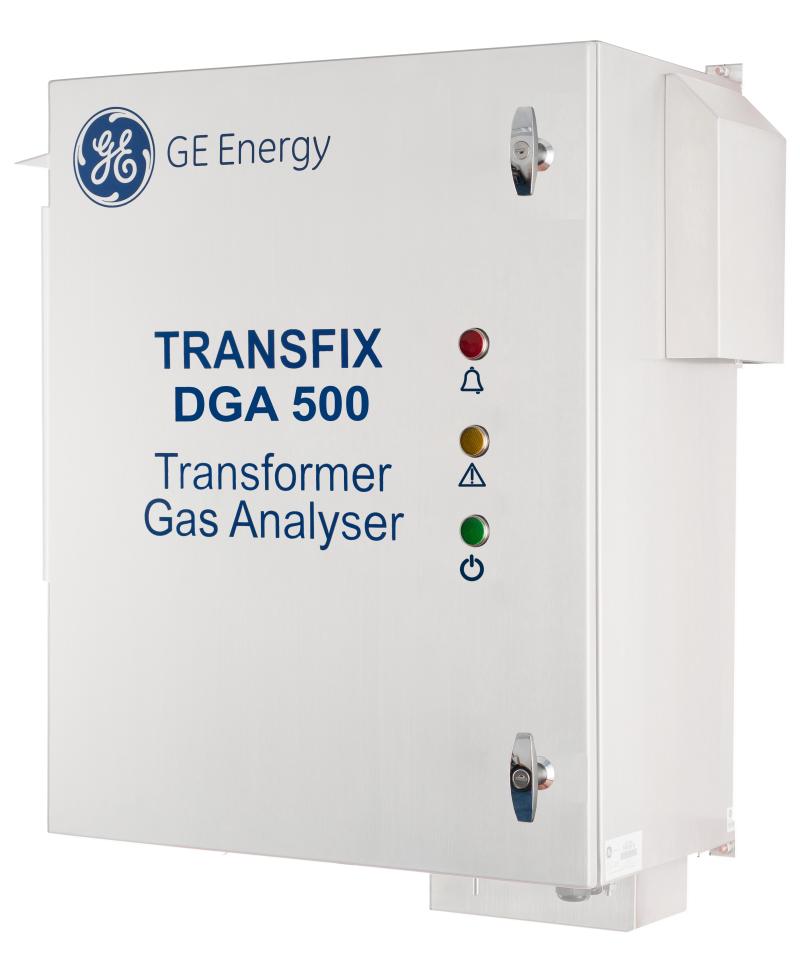

Transfix DGA 500 Transformer Gas Analyser
Online Monitoring
Transfix DGA 500 Transformer Gas Analyser
Guest Article | Fundamentals Ltd
Fundamentals exists to solve problems.
Their products and solutions have been improving the health and performance of the medium voltage and high voltage electrical grid for 25-years.
The Transfix DGA 500 transformer gas analyser is no exception.
Fundamentals Ltd is the only UK approved GE Monitoring & Diagnostics Channel Partner able to offer maintenance, repair, upgrade, installation and commissioning works for the Transfix DGA 500.
The Transfix DGA 500 is an online monitoring unit that measures five individual dissolved gases and moisture whilst providing both online monitoring and key exploratory diagnostics.
It provides dashboard and risk information for the transformer monitored and compares that transformer’s health with other similar assets to showcase its priority as part of the fleet management tool.
IEC Standard 60599
The Transfix DGA 500 enables the well-known Duval’s triangle DGA diagnostic described in Appendix B of IEC Standard 60599Â and integrates seamlessly with Perception to provide not only dashboard and risk information for the transformer monitored but also to compare that transformer’s health with that of other similar assets and showcase its priority as part of the fleet management tool.
Online Monitoring Unit Key Benefits
- Five gases plus moisture (Hydrogen, Carbon Monoxide, Acetylene, Ethylene, Methane, and Moisture)
- Automated multi-gas plus moisture on-line monitoring
- Can specifically identify early arcing issues
- Ability to perform Duval’s triangle DGA diagnostic
- Easily replaceable with a full nine gas unit
- Communicates data to allow remote diagnostic
- No carrier or calibration consumable gases required
- Available with AC or AC/DC power supply
Transformer Gas Analyser Applications
Power Utilities
- Middle of the road solution for medium-criticality transformers
- Monitoring together with remote exploratory diagnostic
Industrial Plants
- Reduces the risk of process interruption due to power failure
- Minimizes costly production downtime
Should you require any further information, technical support and place an order for Transfix DGA 500 please do not hesitate to contact the Thorne & Derrick Sales Team.
