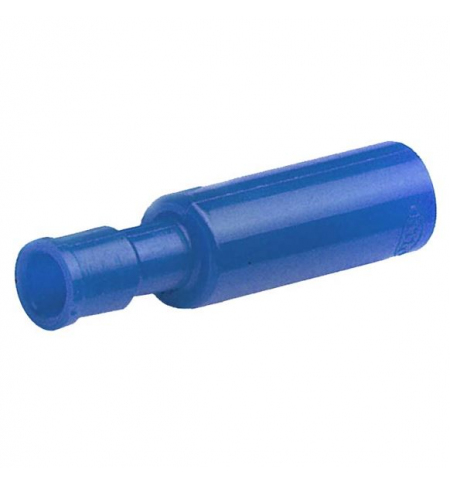

Cembre BF-BF 5 Cable Terminals
Cembre BF-BF 5
Cembre bf-BF 5
Crimp Type – Socket Connector Terminal
Cembre BF-BF 5 electrical connectors are socket connector terminals, used to connect, terminate and crimp low voltage cables.
Cembre BF-BF 5 socket connectors are designed for use with Cembre BF-BM 5 bullet connectors.
- Manufactured from brass strip by Cembre
- Electrolytically tin plated
- Halogen free cable terminals
- Operating temperature range of cable terminals is between -20°C to +115°C (Surge +130°C)
- Polycarbonate insulated cable terminals which are partially reinforced with copper sleeve
- Certified according to EN 45545-2:2013
- UL94 Class Cable Terminal – VO Flammability
- Weight per piece: 1.46g
Commodity Code (Export Code) for Cembre BF-BF 5 is 85369010.
| Cembre Terminal Type | Insulated Cover Colour | Cond. Size sqmm (AWG) | Ø (mm) |
Quantity Terminals Box/Bag | |
 |
BF-BM 5 | Blue | 1.5÷2.5 (16÷14) | 5 | 2000/100 |
| BF-BF 5 | Blue | 1.5÷2.5 (16÷14) | 5 | 800/100 |
Recommended cable crimping tools are also available from Thorne & Derrick.
