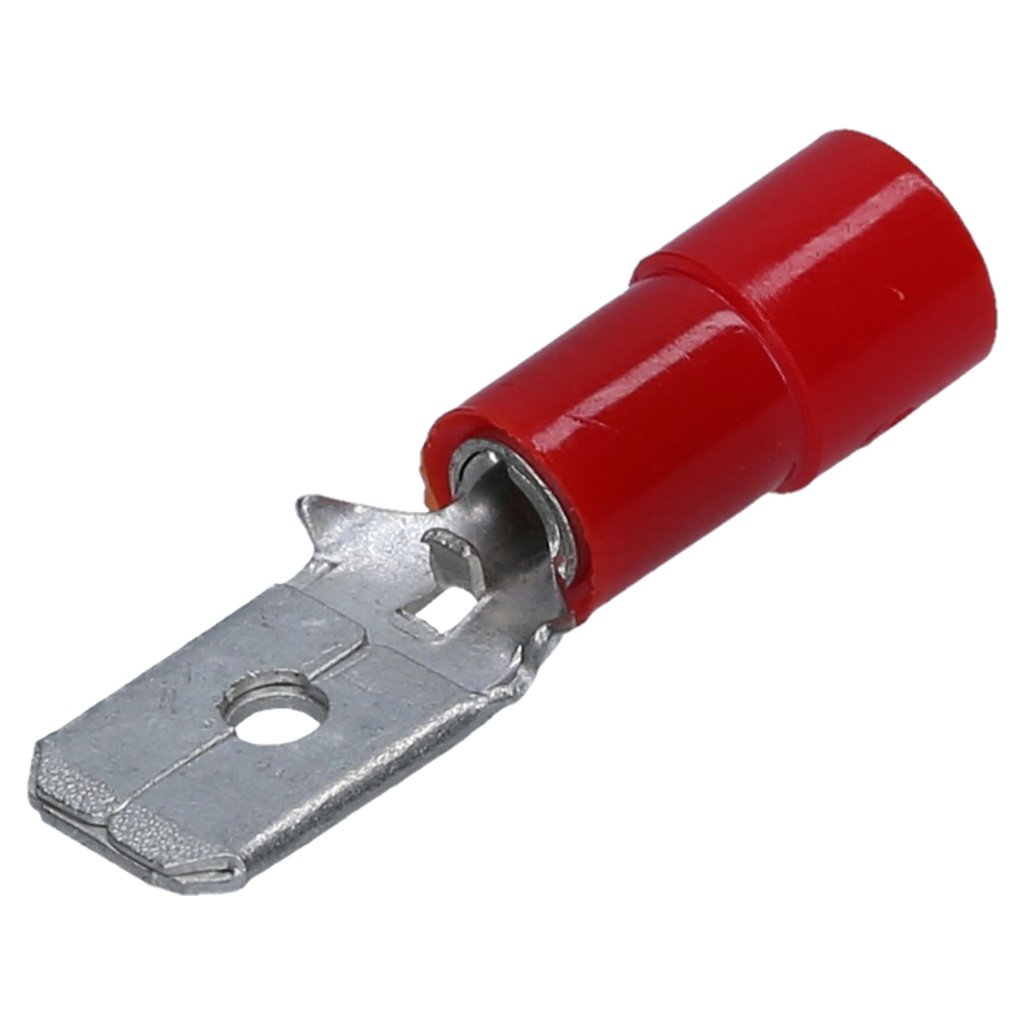

Cembre RF-M 608 Cable Terminals
Cembre RF-M 608
Cembre Rf-M 608
Crimp Type – Male Disconnect Terminal
Cembre RF-M 608 electrical connectors are male disconnect terminals, used to connect, terminate and crimp low voltage cables.
Cembre RF-M 608 disconnect terminals terminate 0.25-1.5 sqmm cross section cables manufactured from copper:
- Manufactured from brass strip by Cembre
- Electrolytically tin plated
- Halogen free cable terminals
- Operating temperature range of cable terminals is between -20°C to +115°C (Surge +130°C)
- Polycarbonate insulated cable terminals which are partially reinforced with copper sleeve
- Certified according to EN 45545-2:2013
- UL94 Class Cable Terminal – VO Flammability
- Weight per piece:Â 0.74g
Commodity Code (Export Code) for Cembre RF-M 608 is 85369010.
| Cembre Terminal Type | Insulated Cover Colour | Cond. Size sqmm (AWG) | Tab Size | Quantity Terminals Box/Bag |
| RF-M 608 | Red | 0.25÷1.5 (22÷16) | 6.35 x 0.8 | 3000/100 |
Recommended cable crimping tools are also available from Thorne & Derrick.
➡ The Cembre ‘F’ range of cable terminals offers a wide range of rings, forks, pins, blades and hooked blades designed to meet the ever changing end user requirements – complete range of cable lugs available for LV MV HV power cables.
To support the installation of LV Cable Systems we distribute a complete range of cable accessories to joint, terminate, cleat and crimp cables operating at 600V/1000V.
