Dual-Mode Rotary Remote Racking System

CBS Arc Safe RRS-4

The RRS-4 remote circuit breaker racking device shares many of the same structural and mechanical features as the CBS ArcSafe RRS-1 model, making it one of the most portable, adjustable, and user-friendly remote racking systems available. What sets the RRS-4 apart from the RRS-1 and other remote racking systems on the market is its use of a dual-mode, source-programmable controller.

Thorne & Derrick can provide electrical safety equipment to substation engineers, cable jointers, overhead linesmen and utility workers with PPE to ensure worker safety when carrying out maintenance on LV-HV switchgear, substations, cables and electrical equipment.

---

CBS ArcSafe RRS-4 Benefits & Specifications

• Two Operating Modes
  • CCM Mode: Current Control Monitoring Mode
  • SEK Mode: turn counting mode
• Real time breaker location feedback
• AC/DC Power System
• Source programmable – all setup and operation can be done in the field without factory assistance
• Hand-truck design provides easy mobility
• Status indicator to let the operator know when racking is complete
• Dual redundant racking protection
• Aids compliance with NFPA 70E relative to protecting personnel by using external circuit breaker rack-out devices

WEIGHT	200 lbs
BATTERY LIFE	>50 operations*
SYSTEM VOLTAGE	24 V DC
INPUT VOLTAGE	120 ±10% V AC, 47-63 Hz†
MAXIMUM AC CURRENT	12.2 A
DRIVE MOTOR POWER	250 W
DRIVE ASSEMBLY SPEED	Variable: 60/80 RPM
CHARGE TIME	Approx. 6 hours
DIMENSIONS	74″ H x 26″ W x 38.1″ D
OPERATING DISTANCE	35 ft. wired; 300 ft. wireless‡

*Number of operations is dependent on the nature of the operation

† May be custom ordered to match different local power standards

‡Standard configuration; contact CBS ArcSafe for other options

---

CBS Arc Safe RRS-4 Operating Modes

CCM mode is a truly universal operating mode capable of racking virtually any rotary style breaker and requires minimal setup. In SEK mode, users create a custom profile for each breaker style being operated that includes real-time breaker location feedback. Both modes are considered “Source Programmable”, meaning that all setup and operation can be done in the field without factory assistance by following the setup procedures detailed in the manual.

The RRS-4 is powered utilising an AC/DC power system, meaning that the unit can be operated using standard 120VAC wall power or the internal batteries (which can provide approximately 30-60 racking operations depending on the application) when wall power is not available. The RRS-4 comes standard with both a corded 35 foot pendant station (extended lengths available) and a wireless radio remote pendant station capable of operating the unit from over 300 feet away.

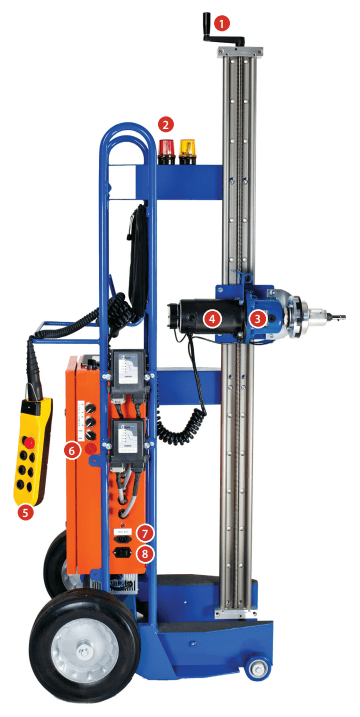

1. Height Adjustment Handle
2. CCM Status Indicator Light
3. Drive Motor Gearbox
4. Drive Motor
5. Wired Pendant Station
6. CCM Status Indicator Siren
7. AC Power Input Receptacle
8. Battery Indicator
9. Frame
10. Storage Bag
11. Control Cabinet
12. PD Alert (Partial Discharge Sensor)
13. Power Supply
14. Slide Rail
15. Torque Limiter Assembly
16. Drive Encoder
17. Drive Motor Brake
18. Wireless Pendant Station
19. User Interface
20. Main Disconnect
21. Front Wheels
22. Rear Wheels

---

Circuit Breaker Compatibility

The RRS-4 is compatible with the following circuit breaker models:

• ABB – AmVac
• ABB – HD4
• ABB – VD4
• ABB – VD4 (Vacuum Retrofit)
• ABB, BBC, ITE – 38 HKV
• ABB, BBC, ITE – HK
• ABB, BBC, ITE – HK-1000
• ABB, BBC, ITE – K-Line
• ABB, BBC, ITE – LK
• ABB, BBC, ITE – MB
• ABB, Sace – Emax
• Allis Chalmers – AM-250
• Allis Chalmers – Ruptair
• Allis Chalmers, Siemens Allis – G25, G50
• Allis Chalmers, Siemens Allis, Siemens – LA
• Alstom – HVX
• Alstom – HWX
• Areva – HVX
• Asea – MV
• Brusk – VSI
• Controlled Power – HVF
• Cutler-Hammer, Eaton – Magnum DS
• FPE – DST
• FPE – FPS-4 & FMS-4
• FPE – H1, H2, & H3
• Fuji – VCB
• GE – AKD-5 (AK)
• GE – AKD-8 (AKR)
• GE – AKR
• GE – AMH
• GE – AMH (34.5kV)
• GE – EntelliGuard
• GE – FK
• GE – Magne-blast
• GE – Magne-blast (Canadian)
• GE – PowerBreak
• GE – PowerBreak II
• GE – PowerVac
• GE – WavePro
• GEC – VMX
• ITE – HV
• McGraw Edison – PSD
• McGraw Edison – WSA
• Merlin Gerin – FG2
• Merlin Gerin – LF2
• Merlin Gerin – MP
• Mitsubishi – DHP
• Mitsubishi – HC-Z
• Powell – PowlVac
• Power Solutions – BV
• Rerolle – LMT2
• Siemens – 3AF
• Siemens – 81000
• Siemens – GMI
• Siemens – VR
• Siemens – WL
• Siemens-Allis, Siemens – RL
• Square D – SE
• Square D – VAD-1
• Square D – VAD-2
• Square D – VAD-3
• Square D, Schneider – NT
• Square D, Schneider – NW
• Toshiba – VK
• Westinghouse – DB-75 & 100
• Westinghouse – DH & DHP
• Westinghouse – DH (Large)
• Westinghouse, Cutler-Hammer – SPB
• Westinghouse, Cutler-Hammer – VCP
• Westinghouse, Cutler-Hammer, Eaton – VCP-W
• Westinghouse, Cutler-Hammer, Eaton, Square D – DS, DSL, DSII
• Yorkshire – YSF6
