Insulated Wheelbarrows

Insulated Wheelbarrow

Wheelbarrow

Network Rail PADS Approved

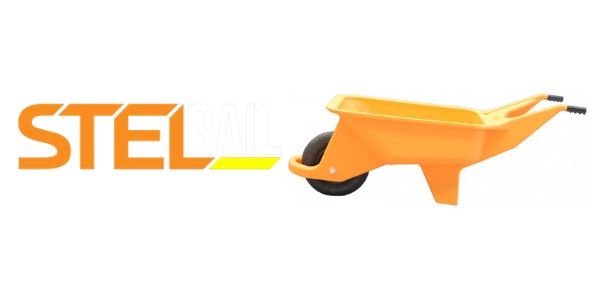

The STEL Rail range of insulated tools for the rail industry include insulated wheelbarrows fabricated from a rugged single mould polythylene material ideal for use on rail possessions and also utilities.

The STEL Insulated Wheelbarrow has a puncture proof tyre, also a double skin with 6mm walls made of Polyethylene to ensure maximum durability
No metal core parts are used resulting in the insulated wheelbarrow being a safer option for use in areas where conductivity may be an issue
The STEL insulated wheelbarrow is commonly used on or around 3rd rail / conductor rail working environments for safer working within possession zones
The STEL insulated wheelbarrow is also used for the application of cable laying
Our insulated wheelbarrow is robust with re-enforced handles and an extra strong tipping bar located in front of the wheel
Designed for the outside, the insulated wheelbarrow is rust free with a one piece mould construction resulting in fewer stress points

Insulated Wheelbarrows

Technical Specification

Insulated Wheelbarrow
Capacity: 90L / 20 Gallon (Approx)
Weight: 12kg (Empty)
Dimensions: Length: 1540 x Width: 615 x Height: 620mm
Part Number: SKU: STELBARROWPP
