Medium Voltage (MV) 200 Amp Load Break Bushing Insertion Tool – Ripley LBIT-1T

Medium Voltage (MV) Load Break Bushing Insertion Tool - Ripley LBIT-1T

Load Break Bushing Insertion Tools

Ripley LBIT-1T



Ripley LBIT-1T is a load break bushing insertion tool for 200 amp bushing inserts and has an internal hexagon socket drive.

The Ripley LBIT-1T secures bushing inserts for positive installation and removal and has an adjustable T handle, 1″ (25.4 mm) square socket drive, 7/8″ (22.2 mm) hexagon for a wrench & standard ‘Penta’ head.

Ripley LBIT-1T Cable Tool

Specifications

  • For 200 amp Bushing Inserts with internal hexagon socket drive
  • LBIT-1T (Part No.: 35900) pre-set torque setting of 180 in-lb
  • LBIT-1T-125 (Part No.: 35907) pre-set torque setting of 125 in-lb optional
  • LBIT-1TR (Part No.: 36770) available with hotstick ring
  • Secures Bushing Insert for positive installation and removal
  • Protects bushing and well during installation and removal
  • Multiple Drive systems:
    – Adjustable “T” Handle
    – 1 in. (25.4 mm) square socket drive
    – 7 /8 in. (22.2 mm) hexagon for wrench
    – Standard ‘Penta’ Head
  • Made in the U.S.A.
  • Length: 14-1/4 in. (36.2 cm)
  • Weight: 21 oz (596 g)
  • More: Cable Jointers Tools for LV-MV Cables & Equipment
Tool Model Order Code Hotstick Ring Torque
LBIT-1T 35900 No 180 in-lb
LBIT-1TR 36770 Yes
LBIT-1T-125 35907 No 125 in-lb

Medium Voltage (MV) Load Break Bushing Insertion Tool - Ripley LBIT 1T

Ripley LBIT-1T cable tool – Operating Instructions

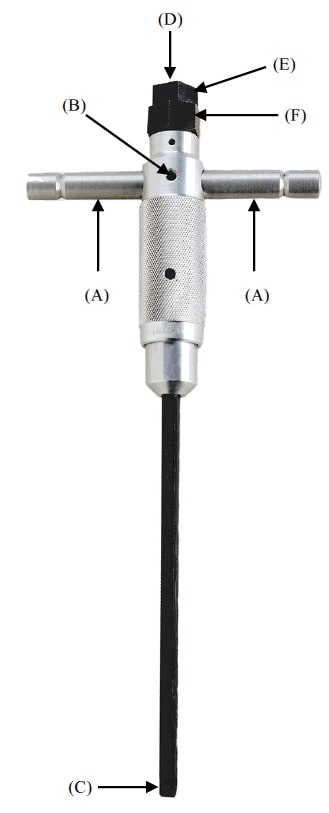

  • 1. Assemble the T-Bar handle (A) into the tool body and secure by tightening screw (B).
  • 2. Slide the bushing insert onto the tool shaft until the socket drive on the end of the tool shaft (C) seats itself in the bottom of the bushing insert.
  • 3. Position the tool with the bushing insert into the bushing well on the pad mounted transformer and carefully rotate the tool to thread the bushing insert onto the stud.
  • 4. Continue to rotate the tool and tighten until the clutch ratcheting is felt. An audible snapping will be heard, along with the clutch ratcheting of the tool. This will indicate the torque value of 180 in/lbs. has been reached.

For Additional Leverage

  • The T-Bar handle can be repositioned by loosening screw (B) and sliding the T-Bar handle to the groove(s) provided.
  • A 3/8” (9.53mm) drive opening (D) at the top of the tool is also provided for using a 3/8” (9.53mm) socket wrench as leverage.
  • 7/8” (22.2mm) hexagon (E) for a fixed or adjustable wrench.
  • A 13/16” (20.64mm) pentagon (F) is provided for using a penta-socket wrench.

Calibration

Tool torque can be checked by placing a 3/8” (9.53mm) torque wrench into the 3/8” (9.53mm) drive opening (D).
