5kV-25kV Adjustable Mid-Span Strippers (15.24 to 41.28mm) – Ripley WS55

Cable Stripping Tools

Ripley Ws55

Ripley WS55 is a cable stripping tool used when mid-span stripping, jointing and terminating overhead lines and primary distribution cables.

The Ripley WS55 is for 15.24 – 41.28mm cables O.D with plastic easy to grip handles. The mid-span cable stripper is designed for gloved hand operation only, is easily adjusted with a fast-slide action to meet different cable sizes and insulation thickness and has the ability to operate on all tree wire and spacer cables

The WS55 is a versatile tool which can be used for midspan stripping of aerial cable and end stripping and jacket removal of URD cables.

Features of Ripley WS55 Cable Stripper

Versatile tool with a fast slide-action adjustment to easily accommodate a variety of cable sizes & insulation thicknesses
Operates on all tree wire & spacer cables
Easy grip plastic handles are designed for gloved hand operation only
Applications include the mid-span & end stripping of aerial cable

Ripley Cable Tools | Jointing, Splicing & Cable Preparation Tools for Underground Cables & Overhead Line Conductors | LV MV HV

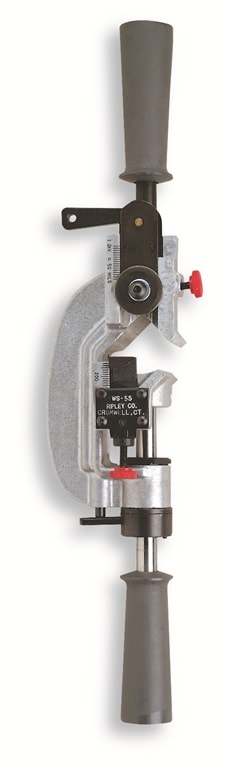

RIPLEY WS55 MID-SPAN CABLE STRIPPER

Specification

For 5 to 25 KV cable
600 to 1.625 in. (15.24 to 41.28 mm) Cable O.D
Operates on all tree wire and spacer cables
Designed for gloved hand operation only
Adjusts easily to handle variety of cable sizes and insulation thicknesses
Versatile tool which can be used for:
– Midspan stripping of aerial cable
– End stripping and jacket removal of URD cables
Fast slide-action adjustment for many cable sizes
Easy grip plastic handles
Tools and blades marked for easy adjustment
Made in the U.S.A.
Length: 16.5 in. (419 mm)
Weight: 2.6 lb (1.18 Kg)
