UKPN 33kV XLPE Aluminium Wire Screen Single Core 185sqmm-300sqmm IEC 60502-2

Published 01 Nov 2018

UK DNO: UKPN UK Power Networks

Approved Manufacturer: Nexans Cables

Voltage: Medium Voltage Cables

Cable Type: 33kV Power Distribution

Cable Designation: AL(WB) XLPE/AWS/WBT/PE 1 CORE 19/33KV

Solid Aluminium Conductors: 185sqmm, 300sqmm

Download UKPN 33kV XLPE AWS Single Core 185sqmm-300sqmm IEC 60502-2

See our complete range of Cables MV HV.

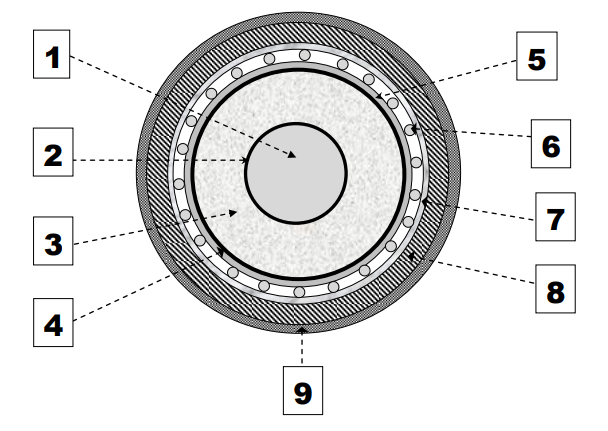

33kV Cable Construction

1 Aluminium Conductor With Water Blocking Protection

2 Semiconducting Screen

3 XLPE Insulation

4 Semiconducting Screen

5 Semiconducting / Waterblocking Tape

6 Aluminium Wires Screen

7 Waterblocking Tape

8 PE Outer Sheath

9 Extruded Semiconducting Layer
