Locating Cable Faults
-
uploaded by Chris Dodds - Thorne & Derrick Sales & Marketing Manager

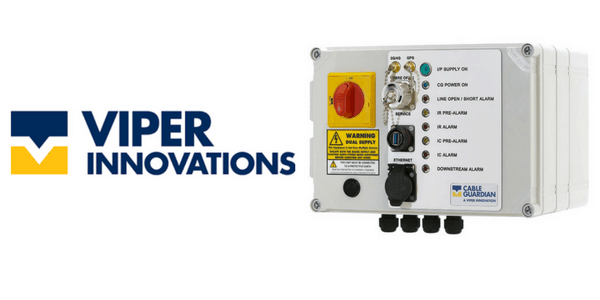

CableGuardian by Viper Innovations allows for quick electrical fault location on rail signalling power systems and displays them clearly on a user-friendly interface.
The cable fault locator traces both insulation and conductor faults as multiple units can be connected can isolating insulation faults to a section of cable and pinpointing the location of the conductor fault.
CableGuardian has the ability to send notifications via e-mail, SMS, and even voice call for serious faults such as open circuits, short circuits and intermittent faults reducing the time spent trying to locate the fault due to Spread Spectrum Time Domain Reflectometry (SSTDR).
The modular nature of CableGuardian allows for remote compliance with the Network Rail M003 Maintenance and Testing requirements.
The cable fault detector is suitable for the following locations including rail industry signalling power systems, legacy system equipment upgrades and electrical power distribution systems with ungrounded (Isolation Terra) AC pairs at working low voltages of up to 750V on Network Rail infrastructure.
CableGuardian – Cable Fault Location & Detection
CableGuardian
Cable Fault Location & Detection
Features & Benefits
- Distributed and intelligent infrastructure for cable health monitoring
- Integrity alarms and fault information direct to asset stakeholders
- Helps to avoid injury and reduce downtime through early fault detection and cable location
- Analytics facilitate proactive, rather than reactive, maintenance
- Enables faster and more accurate repair, minimising service outage
- Permits a move from a frequency based inspection regime to one driven by actual asset condition and performance
- Immediately locates and alarms the first cut during cable theft
- Enables compliance with the requirements of the Network Rail standard for Insulation Monitoring NR/L2/SIGELP/27725
- Fault tolerance built in – each CableGuardian node is a “slave” to the “Supervisor and Analytics System” – no “Master” node required
- Automatic configuration of CableGuardian nodes added or removed from the system
- Inbuilt GPS for auto-location on installation (option)
- Provides “data hub” for interfacing with IOT nodes such as weather centres and IP enabled cameras
CABLEGUARDIAN – Product specification
| Electrical | |
| Input Power Supply (wiring options): | 110V AC 47/63Hz “domestic supply” 230V AC 47/63Hz “domestic supply” Direct from Line Supply being monitored |
| Line Supply Conditions: | Voltage: 300V to 750V 1 AC Frequency: 47Hz to 63Hz Capacitance: Up to 500μF |
| Power Consumption: | 25W typical 30W maximum |
| Earth Connections: | “Reference Earth” and “Protective Earth” wired connections via cable gland to internal Earth terminal |
| Interfaces | |
| Communications Options: | Ethernet 10/100 Base-Tx 3G/4G Cellular (SIM embedded) Fibre Optic 100Base-FX, LC Duplex, 1300nm Multimode |
| Service Port (setup & configuration): | USB 2.0 Type A |
| IR Current Loop (option): | Output: 4-20mA @ ±1% (various modes available) |
| Front Panel Indicators: | Input supply on Internal power on Line open / short circuit alarm IR pre-alarm (Warning) IR alarm (Fault) IC pre-alarm (Warning) IC alarm (Fault) Downstream IR alarm |
| GPS & Cellular Aerial (option): | External mounted, dual function (IP67) |
| Measurements | |
| Network Insulation Resistance (IR): | 1kΩto 1GΩ@ |
| Directional Insulation Resistance: (via External Coil) |
1kΩto 10MΩ@ Network IC dependent |
| Response Value (Alarms) 2: | 1kΩto 10MΩ |
| Network Insulation Capacitance (IC): | 0.1μF to 150μF @±25% ±0.05μF |
| Directional Insulation Capacitance: (via External Coil) |
0.1μF to 80μF @ Network IR dependent |
| Line Voltage (True RMS): | Up to 750V1 AC @±3% ±5V |
| Line Current (True RMS): (via External Coil) |
Up to 120A @±1% |
| Line Frequency: | 47Hz to 63Hz @±1% ±0.5Hz |
| Line Power (True RMS): | ±3% ±5W |
| Line Power Factor: | -1 to +1 |
| Polarisation Index (PI): | In accordance with IEEE-43-2000 |
| Dielectric Absorption Ratio (DAR): | In accordance with IEEE-43-2000 |
| Conductor Short/Open Circuit: | Located to 98% accuracy by distance |
| Intermittent Conductor Faults: | Duration >100mS |
| Environmental | |
| Operating Temperature Range: | -25 °C to +70 °C (-13 °F to 158 °F) |
| Storage Temperature Range: | -40 °C to +85 °C (-40 °F to 185 °F) |
| Relative Humidity: | Up to 100% |
| Design Life: | Minimum 15 years operation |
| Climatic Conditions: | ‘Category T1 environment’ as defined in BS EN 50125-3 |
| Solar Radiation: | 1120 W/m2 as defined in BS EN 50125-3 |
| Shock and Vibration: | ‘Outside the track’ as defined in BS EN 50125-3 |
| Dimensions: | See diagram below (in millimetres [inches]) |
| Weight: | <10kg |
| Mounting: | See diagram below (M6 fixings) |
| Construction and Assembly: | In accordance with BS EN 61439-2 and BS 7671 |
| Ingress Protection: | IP54 as defined in BS EN 60529 |
| Fire Protection: | Category F1 as defined in BS EN 50125-2 |
| Product Standards | |
| Safety: BS EN 61010-1: | Overvoltage Category III (110/230V Mains & 750V 1 Line) Pollution degree 2 |
| BS EN 61010-2-030: | Measurement Category III |
| Electro-Magnetic Compatibility: | In accordance with BS EN 50121-5 |
| Insulation Monitoring Device: | IEC 61557-1 IEC 61557-8 |
| Network Rail: | NR/L2/SIGELP/27725 NR/L2/SIGELP/27409 |
CableGuardian – Diagram
The CableGuardian system may consist of a single node or multiple nodes, depending on the system monitoring requirements and the level of fault location granularity desired.
