NEW Ripley Stripping Tools Improve Safety And Reliability

IMPROVE SAFETY AND RELIABILITY

Cable Stripping Tools

The following blog has been republished alongside the below video from Utility Service Agency, where they demo their favourite Utility Tool® tools for improving safety and reliability during cable preparation.

“What I like about this tool is that it’s very easy to see your blade when you’re doing your chamfer in the field.”

Improve reliability and safety at the same time; take the knife out of your hand and put the Ripley cabling tools in your hand.

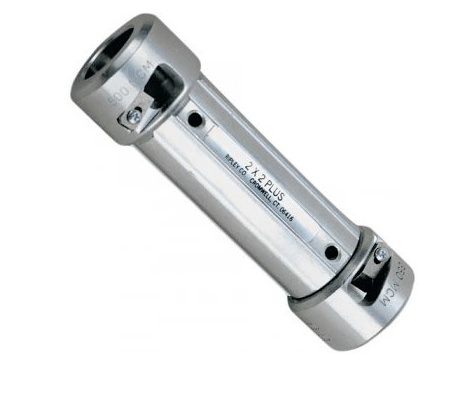

Utility Tool from Ripley offer two by two and four by four cable strippers with bushings. The bushings on each side are specifically designed for the conductor sizes you need. “Take about a twelve to 14 inch cut of all those sizes, and send them off to Ripley tools to get your specifically sized bushing.”

NEW | Ripley Cable Stripping Tools to Improve Safety & Reliability NEW | Ripley Cable Stripping Tools to Improve Safety & Reliability

“To use these tools, just run it down to your spot, I have my hand as a stopper. Perfect cut. No scoring. Safe. Good to go.”

NEW | Ripley Cable Stripping Tools to Improve Safety & Reliability

For those that need more adjustability on the system, the WS 71 and WS 72 Series provides mid span. Just tighten it down and again, run it right down. If you want to take the WS 71 and 72 and make them into one tool, take the US07-7000.

This is new tool from Ripley is capable of doing end strips and also your midspan strips all in one tool. “We used to have two tools for your chamfering. Now we have one tool.”

We also have a US10 7000 which performs a 30 degree chamfer, and then we have a US10 7001 which performs a 45 degree chamfer. See below for further product specification.




US07 SeriesAdjustable 600-1000V Secondary Cable Stripper

Adjustable 600-1000V Secondary Cable Stripper

Introducing the new US07 Adjustable Cable Stripper that quickly and easily end strips or midspan strips cable insulation with no conductor damage on 8 to 1000 kcmil secondary cables. The tool utilizes a size adjustment clamping system to swiftly adjust and lock onto the insulation. Its compact, low friction, thermoplastic, impact-resistant polymer v-jaw and body provides a stable and precise clamping platform in any space.

  • Equipped with safe, recessed blade to prevent potential injury & blade damage
  • Quickly adjusts to suit THHN, XHHW & USE secondary cables with 0.3″ to 1.375″ (7.6 mm to 35 mm) cable diameters, eliminating the need for bushings
  • Easily adjusts with detent actuated knob & fine adjustment knob to match insulation thickness for fast stripping without conductor damage
  • Features a replaceable, machined & ground tool steel blade
  • Combines the end & mid-span strip performance of the UtilityTool® WS 71 & WS 72 with added features, stability & cable sizes
  • Durable bronze bushings provides longevity



US10 SeriesUS10 Cable Insulation Chamfering Tool

URD Cable Insulation Chamfering Tool

The new innovative US10 Cable Insulation Chamfering Tool utilizes a size adjustment clamping system to quickly and easily adjust and lock onto the insulation. Its compact, low friction, thermoplastic V-jaw construction and PTFE-coated aluminium frame provides a stable and precise clamping platform in any space.

  • Easily adjusts to suit XLPE & EPR insulation materials on 0.5″ to 2.36″ (12.7 mm to 60 mm) cable diameters
  • 30 degree or 45 degree angle bevel models perform with a factory-set chamfer depth of 0.075″ (1.905 mm), adjustable from 0″ to 0.150″ (0 mm to 3.81 mm); 15-35 kV
  • Equipped with safe, recessed blade to prevent potential injury & blade damage
  • Features a replaceable, machined & ground tool steel blade

See our complete range of Jointing Tools for the preparation and stripping of LV MV HV cable prior to the installation of joints, terminations and connectors.
