Cubis Systems Network Rail PADS Approved Access Chambers & Cable Protection
Published 17 Aug 2020
Access Chambers & Cable Protection
Cubis Access Chambers & Cable Protection
Network Rail PADS Approved
The Cubis Systems Network Rail PADS approved access chamber and cable protection products ULTIMA access chambers and MULTIduct™ cable protection were specified by Amey Consulting on a recent Midland Mainline upgrade at Kettering Electrical Stabling.
Reduction in track possession and installation times were key factors in the products being selected to deliver the electrical containment and chamber access elements of this light maintenance and stabling facility.

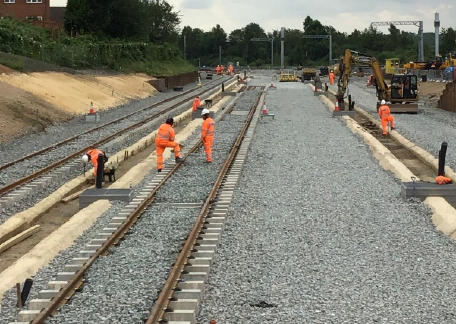

800×800 and 1200×1200 sized ULTIMA Chambers and approximately 700m of 4 Way XL MULTIduct™ were used on this part of the project and installed mainly along the four walkways between the tracks of the sidings.
The versatility of the modular ULTIMA sections was fully utilized on site, building up the levels of the chambers in segments to get to the correct height. This was found to be a much easier installation process than traditional build options given that the stabling facility was created by excavating down in excess of 2m from ground level to sub track formation.
Space is also at a premium when operating at trackside and the use of MULTIduct™ created significant installation space and time savings over regular circular ducting due to the compact profile.
The Cubis team helped from design phase to final installation advice, to ensure another successful rail project.
Cubis Access Chambers
CUBIS ACCESS CHAMBERS
STAKKAbox™ chambers are significantly faster to install than conventional alternatives, with complete installations typically taking under one hour. This results in reduced costs for the installer and significant time saving. No specialist equipment or plant is required in order to install an access chamber and there is no need for specialist box builders. With flexible installation, Cubis access chambers can be adapted to suit on-site conditions with standard tools to build over existing networks.
