ULTIMA

Access Chambers | Cubis Stakkabox

ULTIMA is the next generation in Access Chamber Systems from the STAKKABOX range of access chambers. The Ultima Access Chamber features flexible access with no compromise on strength with strong Glass-reinforced plastic. ULTIMA should be used anywhere where sidewall loading is a concern, such as alongside highways or railway tracks; the design and material used makes these suitable applications.

How do access chambers work? STAKKAbox™ ULTIMA  access chambers are manufactured in 150mm deep sections that stack one on top of each other to reach the desire depth – ring sections are castellated to positively interlock with the unit above and below.

The ULTIMA Chamber System features a twinwall sectional design that is made up of GRP material. Most 150mm deep sections fall under 25kg in weight, making it suitable for a single person lift under manual handling regulations.

Cubis Ultima Installation

Installation of Cubis’ Ultima Access Chamber

STAKKAbox ULTIMA Access Chambers

Access Chambers

ULTIMA ACCess chamber

Features & Benefits

Variability in Size

ULTIMA offers a huge range of access chamber dimensions thanks to the large number of standard sections and the variability offered by the ULTIMA system. STAKKAbox™ ULTIMA can be used to create any access chamber clear opening, due to the versatility of the product.

Lightweight

Due to the sectional twinwall design and the GRP material, most 150mm deep sections fall under 25kg in weight, making them suitable for a single person lift under manual handling regulations.The lightweight material allows for fast and efficient installation.

Fast and Easy to Install

Utima Access Chamber Installation Video

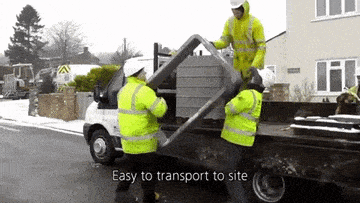

Stakkabox™ chambers are significantly faster to install than conventional alternatives, with complete installations typically taking up to one hour; resulting in reduced costs and significant time saving. Specialist equipment is not needed, except for when the largest chamber sizes are used. Therefore, Stakkabox ULTIMA access chambers can be trusted to do the job quickly and efficiently.

FLEXIBLE during installation

Chambers can be adapted to suit on-site conditions with standard tools to build over existing networks. The adaptability of these access chambers on site is comparatively more compliant with typical requirements against traditional inspection chambers on the market.

high Strength

Stakkabox™ ULTIMA encompasses significantly lighter material than conventional access chambers – providing the same inherent strength.

fire RETARDANT

Ultima has low smoke properties meaning that it can be used in enclosed areas, such as tunnels and underground transport, as it won’t catch fire.

Smooth Outer Walls

Gaps in the outer wall will negatively impact the effectiveness of compaction around the chamber. STAKKAbox™ chambers have smooth outer walls and an outer lip which keys into the backfill.

Sectional & Twin Wall Design

With 150mm sections combined to build the required depth, chambers are tailored to specific needs. The individual sections, thanks to the twinwall design, are light meaning they can be manually lifted. Each access chamber possesses vertical and horizontal ribs,  resulting in a product that is strong vertically and on the sidewall. For most applications, ULTIMA doesn’t require specialist backfills, which reduces installation costs.

ULTIMA Access Chamber - How It Works




How The ULTIMA Access chamber Works

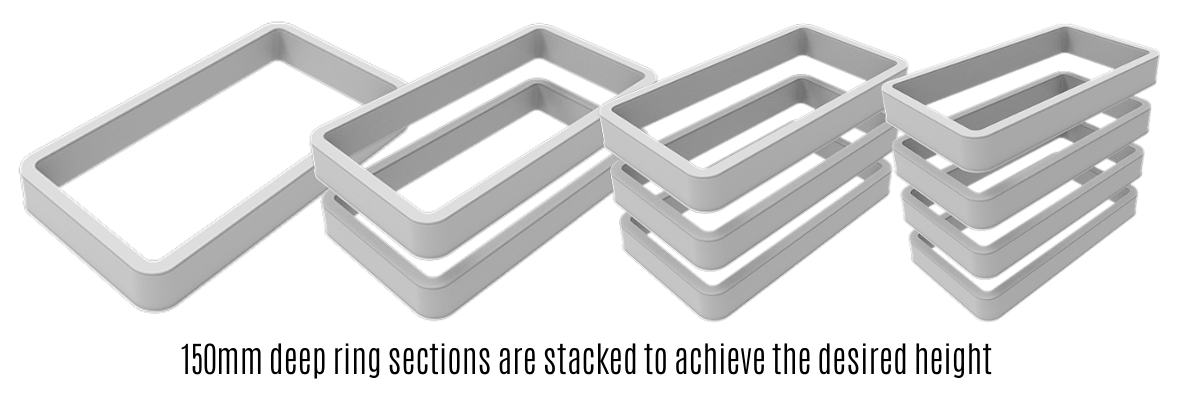

These chambers are constructed by stacking 150mm deep ring sections to reach the desired height. Each ring section is castellated to positively interlock with the unit above and below.

Due to the sectional twinwall design and the GRP material, most ULTIMA 150mm deep sections fall under 25kg in weight, making it suitable for a single person lift under manual handling regulations.

See also | Access Covers | Cable Protection | Cable Trough



Chamber MaterialsCubis Ultima Material

GRP Access Chambers

The ULTIMA access chamber is made from Glass-reinforced plastic (GRP), which is a composite material. It consists of fibre-reinforced polymer made of a plastic, reinforced by fine fibres made of glass.









Access Chamber SizesUltima Access Chamber Sizes

STAKKAbox™ ULTIMA can be used to create virtually any conceivable access chamber clear opening.

Cubis offers a huge range of chamber dimensions due to the large number of standard sections and the variability offered by the system.

ULTIMA chamber sizes have been selected to be reflective of the most commonly used traditional access chamber sizes. This makes ULTIMA an ideal retrofit solution for existing networks, minimising site disruption and installation costs.

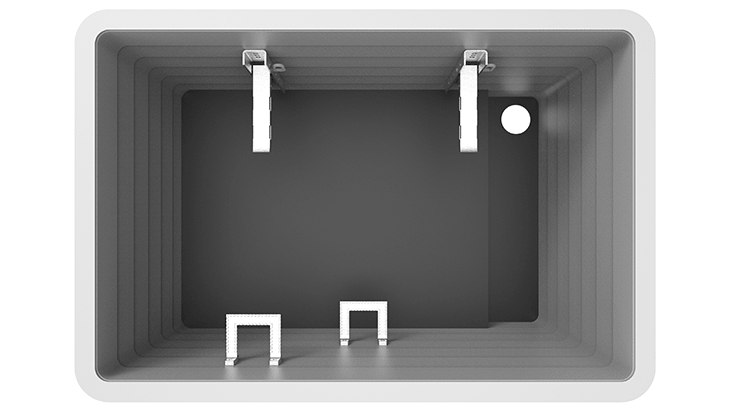

Ultima Access Chamber Accessories

Load Rating

STAKKAbox™ ULTIMA is suitable for installation in environments rated to E600 under EN124.

Suitable for areas imposing high wheel loads, e.g. docks, aircraft pavements.











Access Chamber

Technical Specification

ULTIMA Size

Weight

Product Code

420 x 240 6.6 kg CPULRS-04200240
500 x 500 8.9 kg CPULRS-05000500
530 x 380 7.6 kg CPURLS-05300380-150
800 x 800 12.7 kg CPURLS-08000800
885 x 520 12.0 kg CPURLS-08850520
915 x 445 11.5 kg CPULRS-09150445
1160 x 380 15.0 kg CPURLS-11600380-150
1200 x 600 19.3 kg CPULRS-12000600
1200 x 1200 20.4 kg CPULRS-12001200
1310 x 610 14.0 kg CPULRS-13100610
1310 x 850 20.0 kg CPULRS-13100850
1380 x 530 16.4 kg CPULRS-13100530
1500 x 750 16.2 kg CPULRS-15000750
2320 x 740 23.5 kg CPULRS-23200740

Network Rail PADS Approved Access Chambers

Cubis Systems is Europe’s leading manufacturer of innovative, lightweight structural access chamber and cable protection systems used in the construction of rail infrastructure networks. Cubis work closely with some of the largest Rail network operators in Europe to provide integrated systems for telecoms, drainage, signalling and power applications.

Chamber Type Clear Opening (mm) Depth (mm) MULTIduct Cover Type (B125 loading) Base CUBIS Code PADS no
ULTIMA 1310 x 610 600 4-Way Concrete Standard SYULD4-13100610-IR04TBADC 087/004536
ULTIMA 1310 x 610 600 6-Way Concrete Standard SYULD6-13100610-IR04TBADC  087/004537
ULTIMA 1310 x 610 600 9-Way Concrete Standard SYULD9-13100610-IR04TBADC  087/004538
ULTIMA 1310 x 610 600 4-Way (XL) Concrete Standard SYULDX-13100610-IR04TBADC  087/004539
ULTIMA 1310 x 610 600 4-Way Composite Standard SYULD4-13100610-CR04LBE8C  087/004532
ULTIMA 1310 x 610 600 6-Way Composite Standard SYULD6-13100610-CR04LBE8C  087/004533
ULTIMA 1310 x 610 600 9-Way Composite Standard SYULD9-13100610-CR04LBE8C  087/004534
ULTIMA 1310 x 610 600 4-Way (XL) Composite Standard SYULDX-13100610-CR04LBE8C  087/004535
