Nexans MONOi Heat Shrink Termination | XLPE Indoor Single Core 12kV 24kV 36kV MV

Published 05 Dec 2018

Cable Terminations | Heat Shrink | Cold Shrink | Push-On | MV HV Medium & High Voltage

Cable Terminations

Nexans MONOi are single core heat shrink cable terminations for use indoor and specified to terminate and connect medium/high voltage cables in the following voltage classes:

6/10 (12) kV
6.35/11 (12) kV
8.7/15 (17.5) kV
12/20 (24) kV
12.7/22 (24) kV
18/30 (36) kV
19/33 (36) kV

Nexans MONO type MV cable terminations are heat shrink terminations consisting of a single-piece heat shrink tube – the anti track tube features integral stress control co-extruded into the heat shrink tubing suitable for terminating single core polymeric insulated cables, such as XLPE or EPR, with working voltage classes of 11kV, 24kV and 33kV.

Both Nexans MONOi (Indoor Termination) and MONOe (Outdoor Termination) contain sufficient material to terminate 3 single core cables i.e. 3 phase cable termination kits.

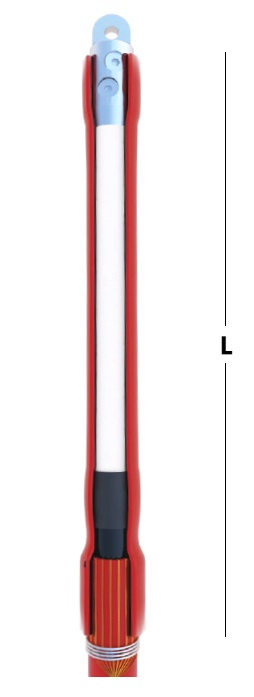

Nexans MONOi Heat Shrink Termination

Nexans MONOi

MV HV Heat Shrink Indoor Cable Terminations

Up To 33kV

The following table enables the selection of Nexans MONOi heat shrink terminations for 11kV, 24kV and 33kV voltage cables:

Voltage Um kV	Indoor Cable Termination Nexans Type	Application Range (sqmm)	Termination L (mm)
11/12kV	3x12MONOi 1.95	25-95	260
11/12kV	3x12MONOi 1.240	70-240	260
11/12kV	3x12MONOi 1.400	185-400	280
11/12kV	3x12MONOi 1.630	400-630	310
24kV	3x24MONOi 1.95	25-95	320
24kV	3x24MONOi 1.240	70-240	320
24kV	3x24MONOi 1.400	185-400	340
24kV	3x24MONOi 1.630	400-630	370
33/36kV	3x36MONOi 1.95	25-95	420
33/36kV	3x36MONOi 1.240	70-240	420
33/36kV	3x36MONOi 1.400	185-400	440
33/36kV	3x36MONOi 1.630	400-630	460

Nexans

Thorne & Derrick distribute the complete range of medium/high voltage electrical equipment manufactured by Nexans – this includes Euromold bushings for use with oil fluid or gas insulated switchgear or transformers and associated screened separable connectors according to both IEC (Euromold) and IEEE (Elastimold) for the termination, connect+disconnect of MV-HV cables onto power distribution systems. To protect power systems against high voltage surges resulting from lightning or switching a complete range of surge arresters are available to be used with Euromold connectors in 11kV/12kV, 24kV and 33kV/36kV voltage classes.
