NEW | High Current, High Voltage Power Connectors from Marechal

Published 10 Feb 2025

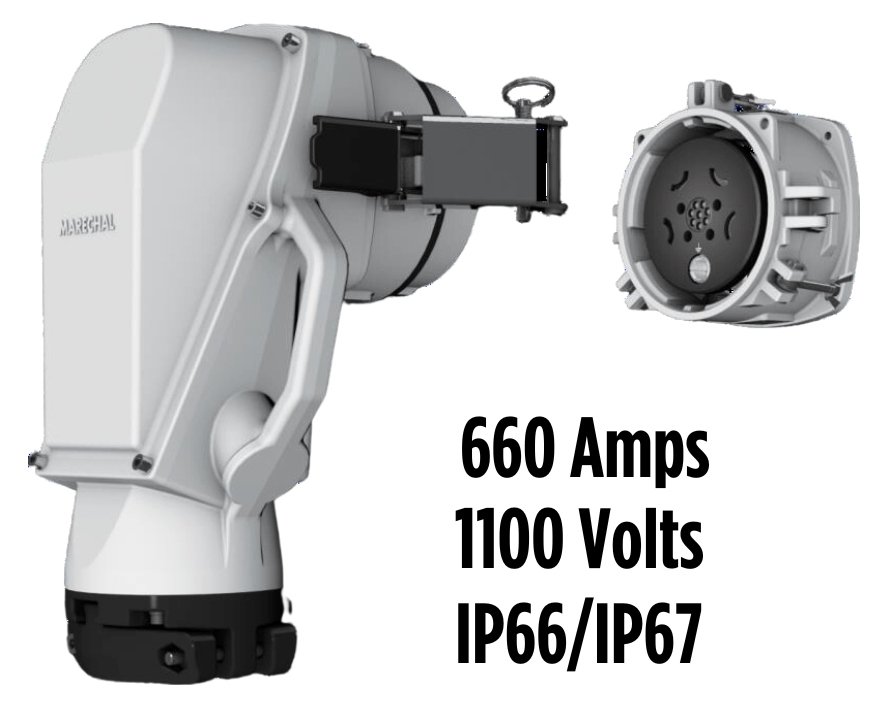

P66 cONNECTOR

660 Amps | 1100V

MARECHAL P66 Connector is the highest performance plug and socket-outlet which has now secured extensive specifications for power distribution applications across industry with a market-leading current rating up to 660A and voltage capacity of 1,100V.

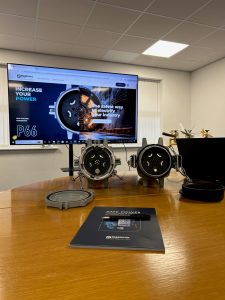

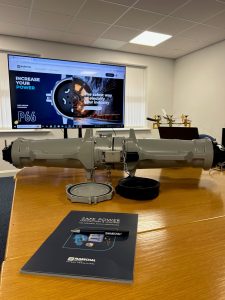

Thorne & Derrick, the UK Stockist & Channel Partner for Marechal Electric, recently welcomed Ross Allan (Area Sales Manager) for a Training Session with our Technical Sales Engineers to support the industry with innovative industrial power connection solutions.

Click ‘GET A QUOTE‘ to enquire for the P66 Connector and ‘Electrify Your Industry’:

P66

HV Connector | Rated For 660A High Current & 1100V High Voltage Distribution

The high voltage plugs and socket-connectors withstand harsh conditions and integrate into industrial high power systems requiring maximum reliability and performance.

• High current – 660A
• High voltage – 1100V (1.1kV)
• 8 Auxiliary contact + 2 pilots
• Metal casing IK10
• T °C : -40 °C / +80 °C
• Safe pre-wired – Reed sensor switch
• Robust – IP66/IP67 & IK10
• User friendly connectors – drawing mechanism
• Compact plug and socket – designed to fit in minimal confined space
• Ease of installation – multiple mounting and wiring configurations
• LOTO compliant
• Downloads | Brochure | Specification | Instruction

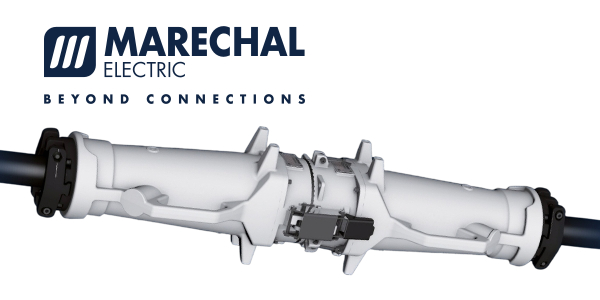

The P66 Connector is modelled to be all-purpose, whether it’s straight or angled, handles can be offered with a threaded plate to suit different cable diameters, allowing configuration variations – the high voltage power connector is lightweight, high-technology and easy to wire providing optimum versatility to international electrical safety standards.

MARECHAL | Plug, Sockets & Connectors

Established over 70 years ago, MARECHAL Electric are currently one of the worlds largest manufacturers of industrial electrical Plugs, Sockets & Connectors for commercial, industrial, hazardous area and high voltage applications.  With over 500+ employees worldwide and a consolidated turnover of nearly €100 million, MARECHAL are established market-leaders in the manufacture of LV Power & Electrical Distribution Connection products.

600V to 66kV | Substation to Socket Connections for LV & HV Electrical Power

Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing and connection of 11kV/33kV and 66kV-/132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

Further Reading

• MARECHAL P66 High Voltage Plug, Sockets & Connectors – Brochure Size: 1.87 MB
• MARECHAL P66 High Voltage Plug, Sockets & Connectors – Data Sheet Size: 378.47 KB
• MARECHAL P66 High Voltage Plug, Sockets & Connectors – Installation Instructions Size: 1.06 MB
