Pipe & Cable Seals for Onshore Windfarm, Enclosures, Foundation & Stations

Published 03 Nov 2020

Roxtec

Sealing Pipes & Cables

Roxtec Pipe & Cable Seals

Onshore Windfarm Substations, Enclosures & Foundation

Roxtec provides offshore wind farms with an “all in one” solution for cable entry sealing, cable management and vibration damping. Standardise with Roxtec seals for efficient offshore windfarm cable protection design, quick roll-out and certified protection – cables are securely fixed, sealed and cable lifetime is extended.

An overview of sealing cables in LV MV HV onshore windfarm, cabinets & enclosures, kiosks and foundation based upon industry standards and practical experience – see the Roxtec range of sealing products suited to the application below and the importance of sealing cable entry points and cable ducts.

Thorne & Derrick are distributors for Roxtec, the leading manufacturer of sealing solutions for cables and pipes, to protect electricity Transmission & Distribution assets including substations against the potential catastrophic effects water, gas and fire.

➡ Also: Sealing Cables In Onshore Substations – A Roxtec CPD

Sealing Cables In Onshore Substations - A Roxtec CPD

Sealing Cables In Onshore Substations


Pipe & Cable Sealing Application Areas

Roxtec have 5 application areas within the Onshore Wind Industry where there are great benefits from using their solutions:

  • Cabinets & Enclosures
  • Turbine Foundations
  • Kiosks
  • Collector Stations
  • Landing Stations of Offshore Wind Farms

Cabinets & enclosures

Roxtec multi-cable entry seals are ideal for control cabinets, junction boxes and other electrical and instrumentation enclosures. By using our seals, you can handle high cable density and reduce the size and weight of the cabinets. Save time and labour with sealing solutions prepared for last minute changes.

Why use Roxtec?

  • Watertight
  • Firestop
  • Gas-tight
  • Cable Retention

Superior Simplicity

  • One cut-out for dozens of pre-terminated cables
  • Flexibility for cables and pipes of different sizes
  • Built-in spare capacity for future cables and pipes
  • EMC solutions for bonding, grounding and electrical safety
  • Customized solutions for specific requirements

Turbine Foundations

Roxtec seals work efficiently in underground walls. Specify them with their knock-out sleeve to seal openings until cable routing. Avoid water, humidity and rodent issues in your turbine foundations.

Why use Roxtec?

  • Watertight
  • Pest and rodent barrier
  • Cable retention

Superior Simplicity

  • Flexibility for cables and pipes of different sizes
  • Built-in spare capacity for future cables and pipes
  • Installation in wet conditions and running water







Kiosks

Roxtec seals work efficiently in underground walls. Specify them with their knock-out sleeve to seal openings until cable routing. Avoid water, humidity and rodent issues in your kiosks. Roxtec seals take the load off the cables and eliminate the cable bending issue.

Why use Roxtec?

  • Watertight
  • Pest and rodent barrier
  • Cable retention

Superior Simplicity

  • Flexibility for cables and pipes of different sizes
  • Built-in spare capacity for future cables and pipes
  • Installation in wet conditions and running water

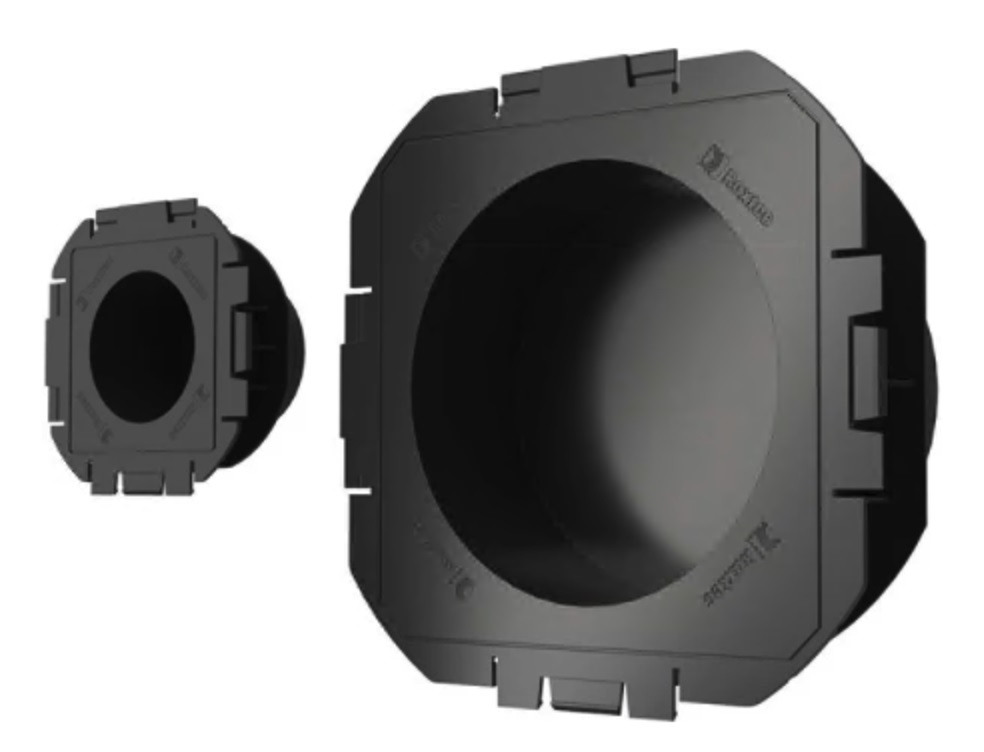

Roxtec Knock-Out Sleeve

Roxtec Knock-Out Sleeve



Collector stations

Roxtec seals work efficiently in underground walls. Specify them with their knock-out sleeve to seal openings until cable routing. Avoid water, humidity and rodent issues in your collector stations. Roxtec seals take the load off the cables and eliminate the cable bending issue.

Why use Roxtec?

  • Watertight
  • Pest and rodent barrier
  • Cable retention

Superior Simplicity

  • Flexibility for cables and pipes of different sizes
  • Built-in spare capacity for future cables and pipes
  • Installation in wet conditions and running water

Landing stations of offshore wind farms

Roxtec seals work efficiently in underground walls. Specify them with their knock-out sleeve to seal openings until cable routing. Avoid water, humidity and rodent issues in your landing stations. Roxtec seals take the load off the cables and eliminate the cable bending issue. Fulfill EMC requirements with our EMC solutions for bonding, grounding and electromagnetic shielding.

Why use Roxtec?

  • Watertight
  • Firestop
  • Gas-tight
  • Dust-tight
  • Pest and rodent barrier
  • Cable retention
  • EMI/EMP protection

Superior Simplicity

  • Flexibility for cables and pipes of different sizes
  • Built-in spare capacity for future cables and pipes
  • EMC solutions for bonding, grounding and electrical safety
  • Customized solutions for specific requirements
  • Installation in wet conditions and running water

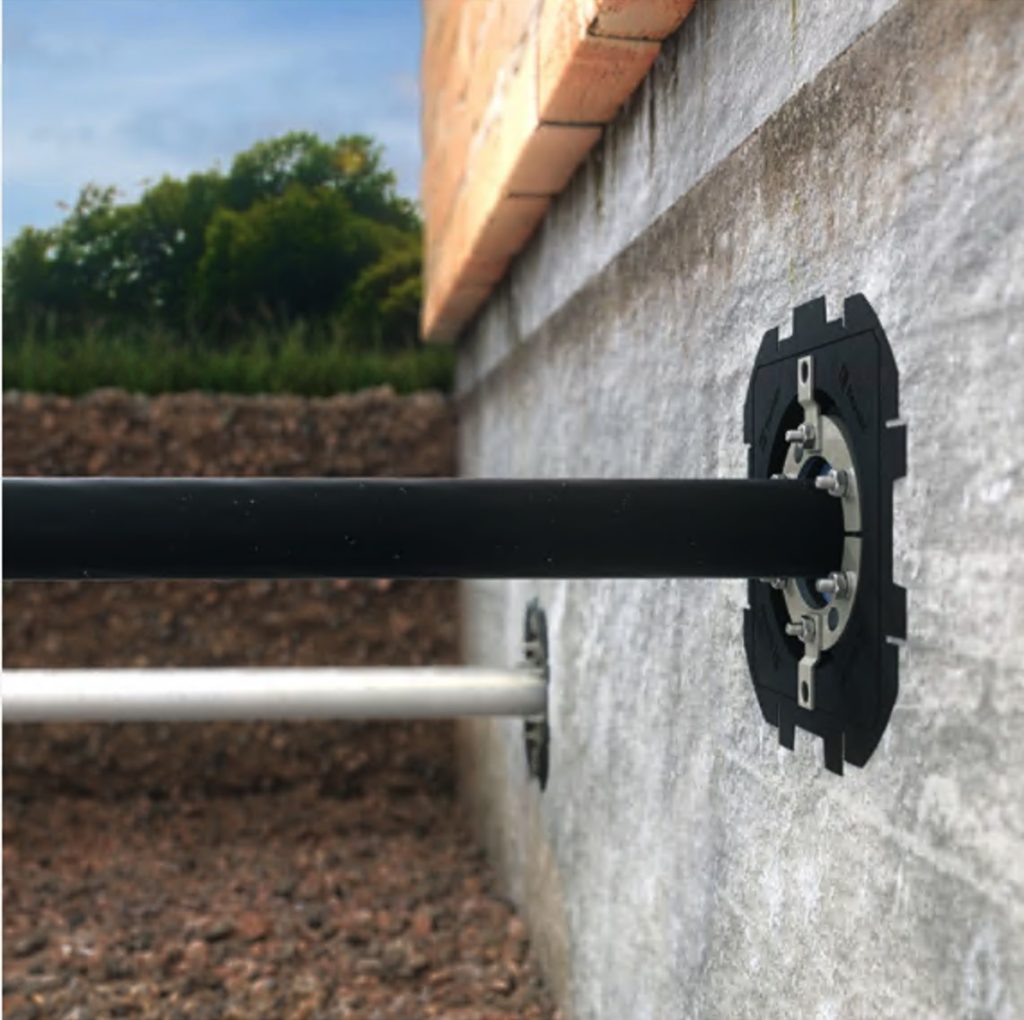

Seals for underground use - Use Roxtec UG™ solutions where cables and pipes enter basements in order to eliminate the risk of rodents, flooding and partial discharge.

Seals for underground use – Use Roxtec UG™ solutions where cables and pipes enter basements in order to eliminate the risk of rodents, flooding and partial discharge.
