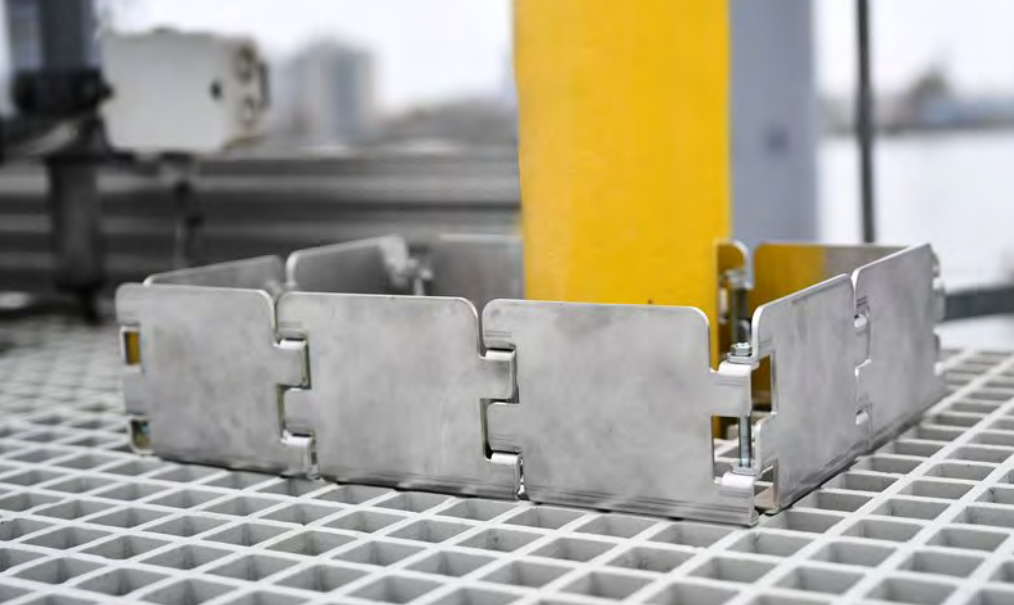

Adjustable Kick Plate CableSafe

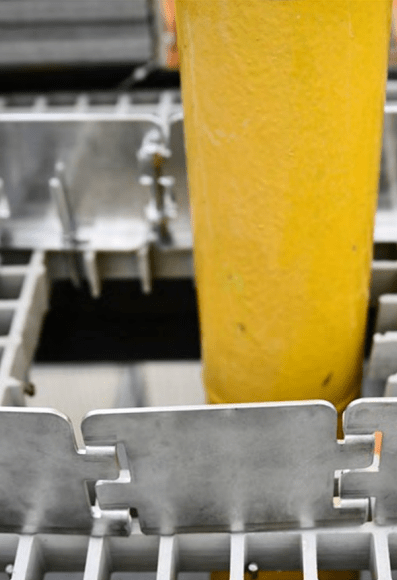

The CableSafe Adjustable Kick Plate is an essential piece of Electrical Safety Equipment designed for Dropped Objects Prevention, acting as a low protective barrier surrounding openings/gaps on elevated work/installation platforms, ultimately reducing any risk of dropped objects and tools falling through from a height preventing the possibility of injuries. The Adjustable Kick Plate by CableSafe features a strong and solid design, saves time and money, is durable and requires no maintenance, and is easy to install using galvanised J-bolts, nuts and spring pins. CableSafe have expertly designed this Dropped Objects Prevention Equipment (approved with OSHA), to be flexible with any edge or opening, ensuring maximum safety.

The Adjustable Kick Plate‘s reusability makes this a highly cost-efficient product, allowing grated openings to be finished and safely closed off with a toe board directly. No matter where active works are being carried out, the Adjustable Kick Plate can move locations and prevent unexpected costs of lost or damaged tools and equipment.

♦ OSHA Approved Design

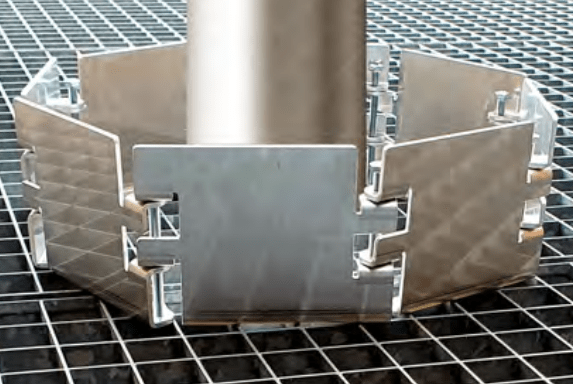

Adjustable Toeboard Circular | CableSafe

The CableSafe Adjustable Kick Plate is an Occupational Safety and Health Administration (OSHA) guided design of a standard toe board. OSHA‘s guidance on edge protection/guarding states that Toeboards/Kick Plates should be provided when employees/workers below could be exposed or at risk to falling objects and equipment, such as work tools. Toeboards are required to be at least 3½ inches (8.9cm) in height from top edge to floor level, and be capable of withstanding a force of 50 pounds (222 N) applied in any direction.

No openings over one inch (25mm)
Almost 4 inches high, should be at least 3½ (or 90mm) high
CabelSafe Adjustable Kick Plate is capable of withstanding a force of at least 50lbs applied in any direction

Dropped Objects Prevention Walkway Mat

Thorne & Derrick are also stockists and suppliers of the CableSafe Dropped Objects Prevention Walkway Mat, working in conjunction with the Adjustable Kick Plate. The pairing of the two products allow for complete platform grating and gap protection, preventing any tools and equipment from falling. The Dropped Objects Prevention Walkway Mat is also designed for use in wet and slippery conditions with enhanced boot gripping, as well as protecting flooring and walkways from damage.

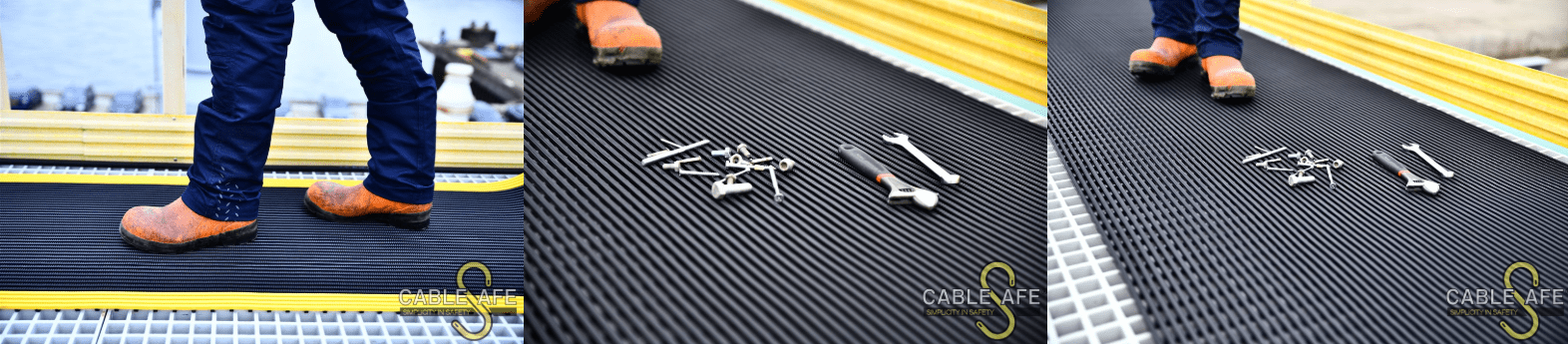

Dropped Object Prevention Walkway Mat with Tools

Dropped Objects Prevention Walkway Mat

Kick Plate Dropped Objects Prevention Technical Specifications

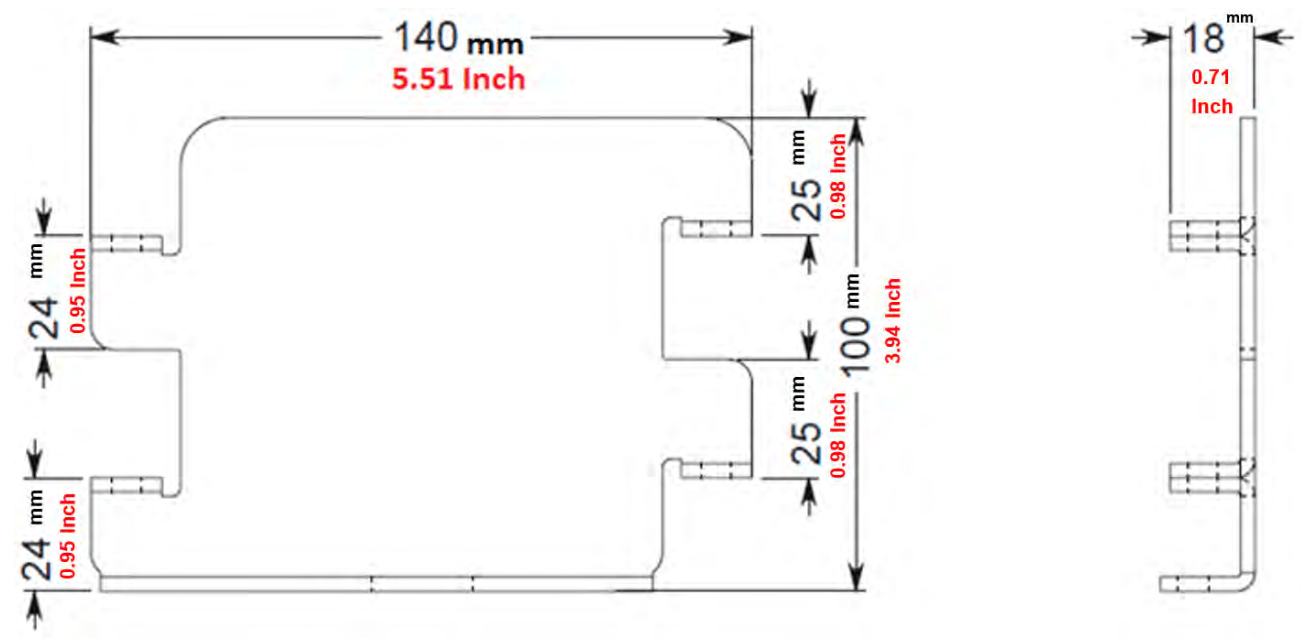

CableSafe Adjustable Kick Plate Dimensions & Layout

The Adjustable Kick Plate is available in universal standard sizing:

Adjustable Kick Plate Dimensions | CableSafe

Kick Plate Materials & Weatherability

Strong aluminium frame (thickness 3mm – 012inch)
Aluminium production is corrosion resistant, recyclable and is greener/environmentally friendly in comparison to plastic alternatives
Silver coloured, but available in safety yellow for enhanced visibility of Adjustable Kick Plate barrier
Excellent weather resistance and robustness
Design in accordance with NEN-EN-ISO 14122
OSHA approved design (Occupational Safety and Health Administration)

Kick Plate Features & Benefits

Dropped Object Prevention
Solid re-usable toeboard
Lightweight and strong aluminium design
Universal design for steel grated floors and walkway

Kick Plate Widespread Success

Standard size universal design
New design based on heavy industrial experience
Used in many different applications
Strong and simple in use

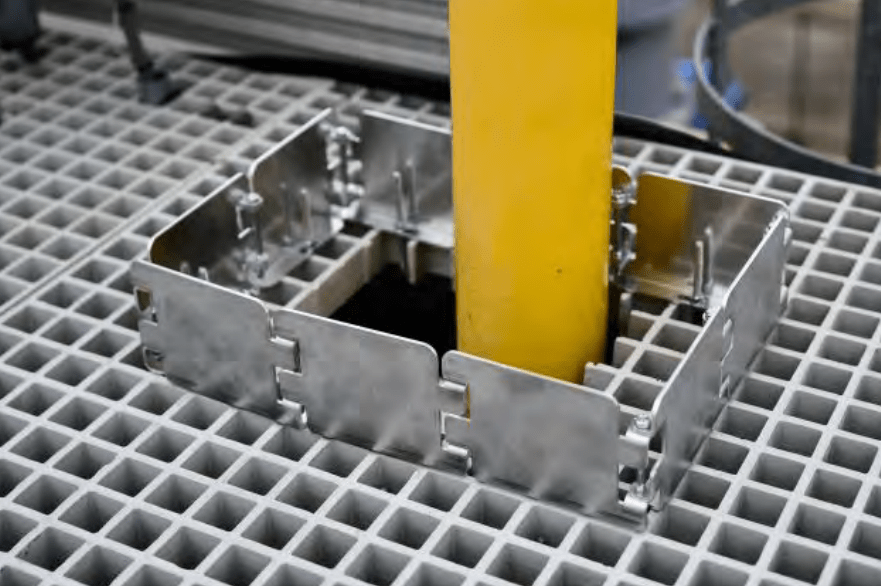

CableSafe Adjustable Kick Plate Installation

The CableSafe Toeboard product is very simple to install and can be easily removed by hand to provide flexible and reusable installation. Available in a universal standard size, the product is design to protect any size opening, simply by increasing the number of Adjustable Kick Plate units to suit the desired size gap/opening. The Adjustable Kick Plates will reduce turnaround time for engineering and design, as well as installation time constructing the grated floors and railings.

Installed with clamps on grated steel floors
Supplied with galvanised J-Bolt, spring pin and nuts
No necessity for welding or hot work
Not hot work permit or scaffolding required
Fast and easy to install by hand (no tools required)

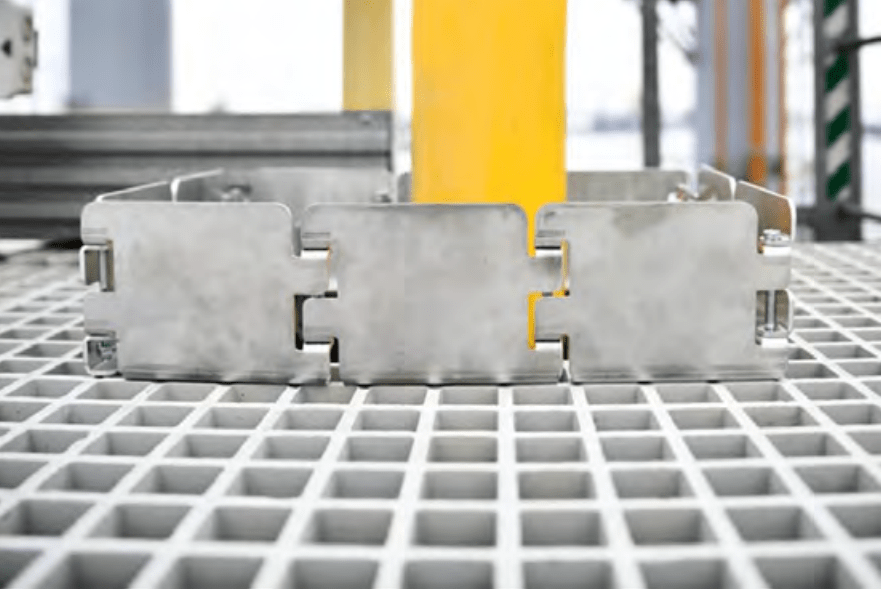

Adjustable Kick Plate CableSafe | Side View

Electrical Safety Equipment | CableSafe

Thorne & Derrick stock and supply the complete range of CableSafe Electrical Safety Equipment, including Dropped Object Prevention, such as the Walkway Mat, Guard Net & Safety Nets. CableSafe safety solutions are essential to ensure LV MV HV cable safety and a generally safe working environment in sectors such as, construction, renewable energy, data centres, rail, oil & gas and petrochemical industries.
