Cembre BKF-F 405 | Reinforced PA 6.6 Insulated Female Disconnect Terminals

Cembre

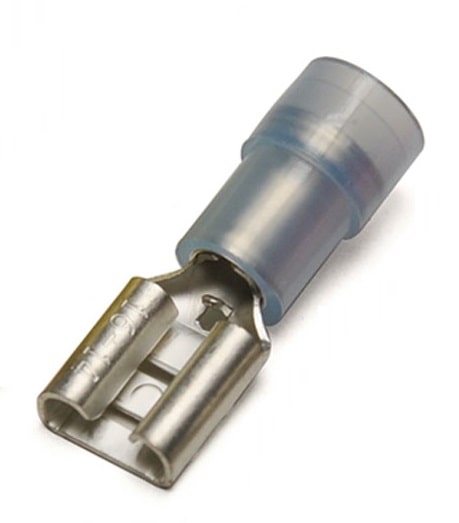

Cembre bKf-f 405

Cembre ‘KF’ type terminals are designed to offer improved mechanical and electrical integrity under heavy-duty LV cable termination applications using female disconnect terminals. This is achieved via a copper sleeve located between the copper barrel and polyamide insulation of the cable terminal. Then during crimping cables the insulation of the conductor is integrated into the crimp due to the copper sleeve being deformed around it by the crimping tool to maintain the level of ‘grip’ required in applications subject to continuous mechanical vibrations.

BKF-F 405 type terminals are manufactured by Cembre from electrolytic copper Cu-ETP CWOO4A according to UNI EN 13599 and are tin plated to a minimum thickness of 3µm.

Cembre RKF-F

Conductor Size Minimum (sqmm) 1.5 sqmm
Conductor Size Maximum (sqmm) 2.5 sqmm
Cable Terminal Type – Insulated Female Disconnect Terminal
Colour Of Cable Terminal Insulation – Blue
Max. Voltage Rating (KV) – 600 Volts
Halogen Free? Yes
Flammability Rating (UL94) V2
Suitable For Indoor Use? (No Exposure To Water Or Moisture) Yes
Suitable For Outdoor Use? (Exposure To Water And Moisture) No
Order Code – Cembre RKF-F 405

➡ The following table enables the selection of the correct insulated female disconnect terminal – visit Cembre lugs to view the complete range of LV MV HV cable connectors to joint and terminate cables with copper or aluminium conductors. Cembre brand electrical connectors, splices and cable lugs are approved and compatible with leading cable accessory manufacturers in both cold shrink and heat shrink technology for use in their cable jointing and termination kits.

Conductor Size sqmm (AWG)	Cembre Type	Tab Size	Quantity per Box/Bag	Insulated Cover Colour
1.5÷2.5 (16÷14)	BKF-F 405	4.8 x 0.5	3000/100	♦
