Cembre BKY-U 5 | Reinforced PA 6.6 Insulated Fork Terminals

Cembre

Cembre Fork/Spade Terminals

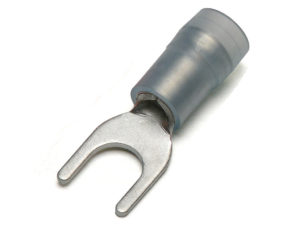

Cembre BKY-U 5

Cembre ‘KY’ type terminals are designed to offer improved mechanical and electrical integrity under heavy-duty LV cable termination applications using fork/spade terminals. This is achieved via a copper sleeve located between the copper barrel and polyamide insulation of the cable terminal. Then during crimping cables the insulation of the conductor is integrated into the crimp due to the copper sleeve being deformed around it by the crimping tool to maintain the level of ‘grip’ required in applications subject to continuous mechanical vibrations.

BKY-U 5 type terminals are manufactured by Cembre from electrolytic copper Cu-ETP CWOO4A according to UNI EN 13599 and are tin plated to a minimum thickness of 3µm.

Cembre BKY-M

Conductor Size Minimum (sqmm) 1.5sqmm
Conductor Size Maximum (sqmm) 2.5sqmm
Cable Terminal Type – Insulated Fork Terminal
Colour Of Cable Terminal Insulation – Blue
Fork Width (mm) – 5.3
Max. Voltage Rating (KV) – 600 Volts
Halogen Free? Yes
Flammability Rating (UL94) V2
Suitable For Indoor Use? (No Exposure To Water Or Moisture) Yes
Suitable For Outdoor Use? (Exposure To Water And Moisture) No
Order Code Cembre BKY-U 5

➡ The following table enables the selection of the correct insulated fork/spade terminal – visit Cembre lugs to view the complete range of LV MV HV cable connectors to joint and terminate cables with copper or aluminium conductors. Cembre brand electrical connectors, splices and cable lugs are approved and compatible with leading cable accessory manufacturers in both cold shrink and heat shrink technology for use in their cable jointing and termination kits.

Conductor Size sqmm (AWG)	Ø Stud mm	Dimensions mm						Cembre Type	Crimp Quantity Box/Bag
Conductor Size sqmm (AWG)	Ø Stud mm	Ø	B	M	N	L	d	Cembre Type	Crimp Quantity Box/Bag
1.5÷2.5 (16÷14)	5	5.2	7.9	6.5	4.5	22.0	5.3	BKY-U 5	2500/100
