Furse

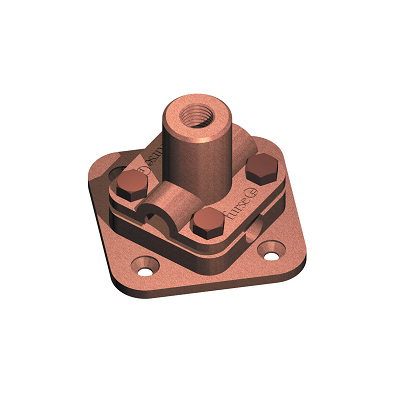

Furse range of flat saddles are manufactured from high quality copper, ensuring that a high level of conductivity is maintained throughout the air termination system.
Furse Product Details
-
Manufactured from high quality copper alloy
-
Simple to install
-
Provide an effective connection between air rod and stranded conductor
-
Fix using countersunk wood screws 1½” No.10 or M6 (Part no. SW005) and wall plugs (Part no. PS305)
-
Tightening torque 12 Nm
Earthing Standards
- IEC/BS EN 62561-1 Class H (SD160)
- BS EN 50164-1 Class H (SD155/SD165)
| Furse Flat Saddle | Air rod diameter (mm) | Thread size | Conductor size (mm²) | Conductor material | Weight each (kg) |
| SD155 | Ø 15 | M16 | 50 | Copper | 1.00 |
| SD160 | Ø 15 | M16 | 70 | Copper | 0.95 |
| SD165 | Ø 15 | M16 | 95 | Copper | 0.95 |
