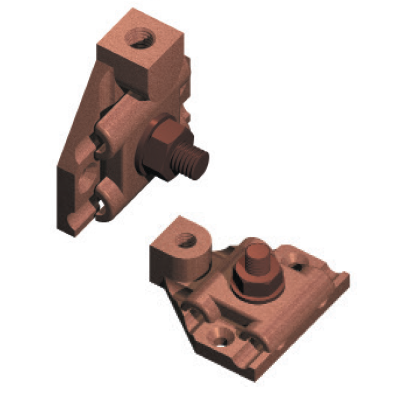

Horizontal or Vertical Air Rod Base

Furse

Furse range of air rod bases are manufactured from high quality copper earthing or aluminium alloys, ensuring that a high level of conductivity is maintained throughout the air termination system forming part of the Furse air termination network.

Furse Product Details

Manufactured from high quality alloys of either copper or aluminium
Simple to install
Provide an effective connection between air rod and solid circular air termination conductor, in either the horizontal or vertical plane
Fix using countersunk wood screws 1½” No.10 or M6 (Part no. SW005 or SW105) and wall plugs (Part no. PS305)
Tightening torque 15 Nm

Earthing Standards

BS EN 62561-1 Class H

Horizontal or Vertical Air Rod Base	Air rod diameter (mm)	Thread size	Conductor size (mm)	Conductor material	Mounting plane	Weight each (kg)
SD305	Ø 10	M10	Ø 8	Copper	Horizontal	0.30
SD307	Ø 10	M10	Ø 8	Copper	Vertical	0.30
SD005	Ø 10	M10	Ø 8	Aluminium	Horizontal	0.11
SD007	Ø 10	M10	Ø 8	Aluminium	Vertical	0.11
