Klauke EK12032 CFB/M | Battery Powered Cable Crimping Tool 10-240sqmm

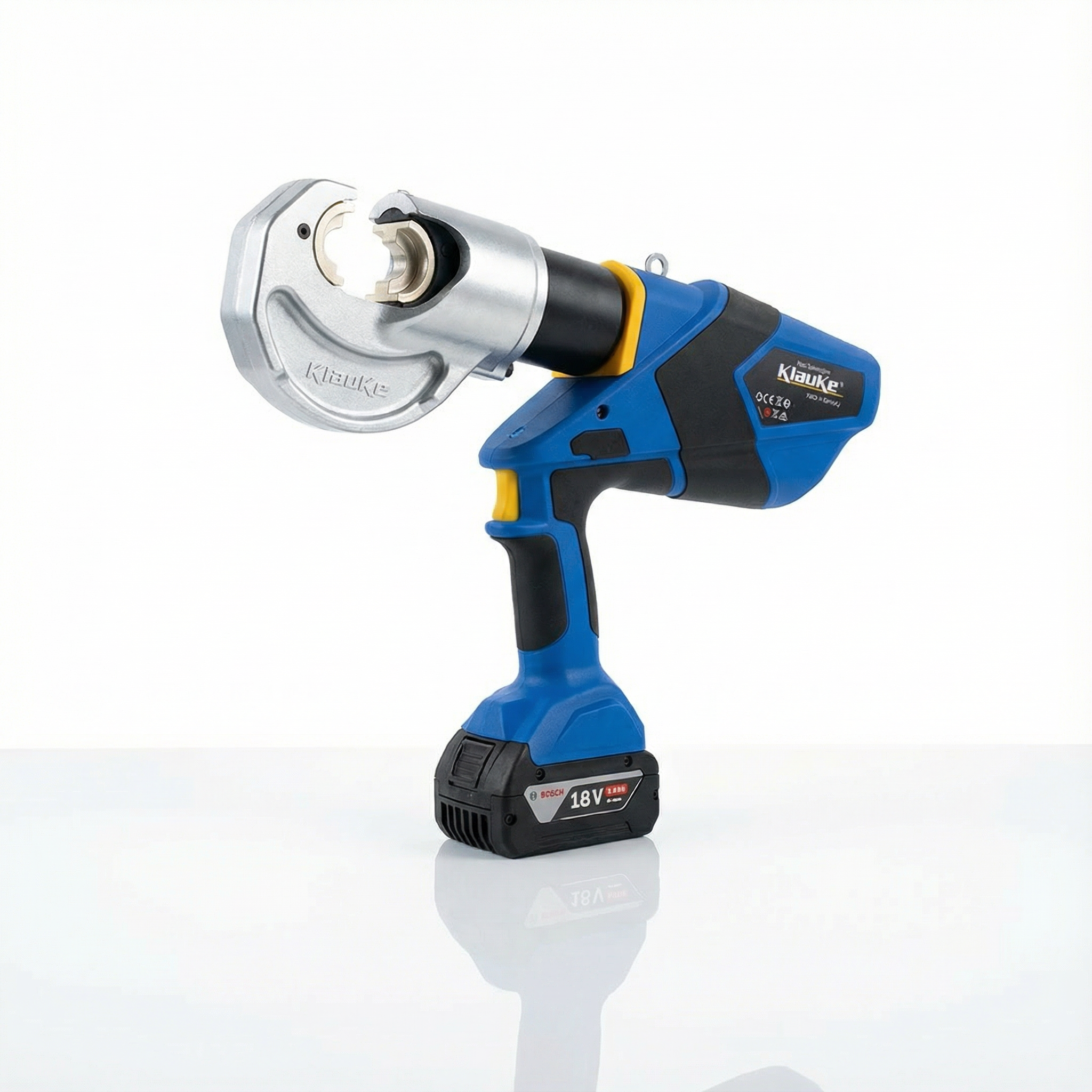

Klauke EK12032 Battery-Powered Crimping Tool

Klauke EK12032 CFB/M Battery-Powered Crimping Tool

£POA

Request a Quote

Call Us: +44 (0)191 410 4292

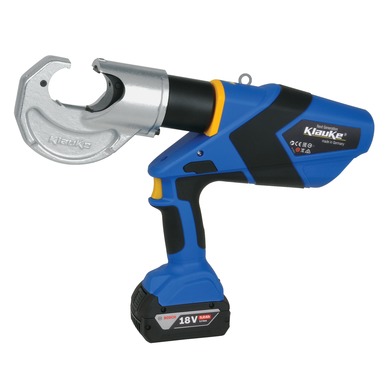

Klauke EK12032 CFB is a compact, high-performance battery-powered crimping tool designed for reliable crimping of solderless terminals, connectors, and pin terminals in industrial and on-site electrical applications.

klauke EK12032 CFB/M BATTERY CRIMPING TOOL

The Klauke EK12032 CFB/M is a compact, high-accuracy, battery-hydraulic crimping tool built to deliver dependable results in tight or restricted installation areas.

With a strong 30–60 kN crimping force, the EK12032 CFB/M is optimised for fine and superfine-stranded copper conductors, enabling secure crimps on connectors up to 32 mm in diameter, depending on the application.

Powered by an 18 V Li-Ion battery, the tool offers cordless flexibility, rapid 45-minute recharge capability, and a low overall weight of just 1.8 kg including the battery, making it ideal for mobile field use, overhead tasks, and continuous on-site operation.

Its narrow, open, 360° rotatable crimping head provides exceptional access in confined spaces, while the simple one-button interface ensures quick, precise, and controlled crimping even in challenging working positions.

An onboard electronic control system constantly supervises each crimping cycle, supports automatic return after completion and includes a maintenance indicator LED to help maintain optimal performance.

Contact our experts – Order or learn more about the Klauke EK12032 CFB/M and our full range of Klauke crimping tools, batteries and compatible dies.
We provide technical advice, quotations and fast delivery for both UK & export projects.

Contact Our Experts

BATTERY POWERED CRIMPING TOOL – SPECIFICATIONS (bosch BATTERY SYSTEM)

EK12032 Electrical Features
Crimping force	120 kN
Stroke/opening width	32 mm
Crimping range	16 – 400 sqmm
Crimping Cycle	7 s to 8s (depending on crimping cross section)
Battery Voltage	18V
Battery Capacity	5.0 Ah, Li-Ion
Battery Charging Time	45 mins
Weight including battery	6.8kg
Ambient Temperature	– 10°C to +40°C

BATTERY POWERED CRIMPING TOOL – SPECIFICATIONS (makita BATTERY SYSTEM)

EK12032 Electrical Features
Crimping force	120 kN
Stroke/opening width	32 mm
Crimping range	16 – 400 sqmm
Crimping Cycle	7 s to 8 s (depending on crimping cross section)
Battery Voltage	18V
Battery Capacity	4.0 Ah, Li-Ion
Battery Charging Time	36 mins
Weight including battery	6.8kg
Ambient Temperature	– 10°C to +40°C

HYDRAULIC CABLE CRIMPING TOOL – FEATURES

Choose your battery system: Bosch or Makita

All tool data readable via Bluetooth
Open, rotatable head for easier crimp positioning
2-stage hydraulic system (fast feed + power stroke) for efficient crimps
One-button operation — simple and safe control of all functions
Built-in LED light to illuminate the work area
Automatic retraction and ARS (Automatic Retract Stop) for precise multiple crimps
Visual and audible error signals for quality assurance
Balanced centre of gravity for easier handling and reduced fatigue
Battery charge & service display — always ready to use

CABLE CRIMPING TOOL – COMPATABILITY

The hydraulic cable crimping tool offers precise, repeatable crimps and is suitable for professional electrical installation and maintenance applications.

Suitable For	Connecting Material	Crimping Range (mm²)	Crimping Profile
Tubular cable lugs and connectors, standard type, tubular cable lugs for switch cabinet connections		16 – 400
Insulated cable lugs and connectors, insulated pin terminals		10 – 150
Tubular cable lugs and connectors for fine stranded conductors		10 – 150

crimping tool – Tubular cable lugs and connectors – stainless steel, Ni

Suitable For	Connecting Material	Crimping Range mm²	Crimping Profile
Compression cable lugs and connectors according to DIN – Al		50 – 240

Compression cable lugs and connectors – Al/Cu

Suitable For	Connecting Material	Crimping Range mm²	Crimping Profile
Solderless terminals (DIN 46234) and pin terminals (DIN 46230) According to DIN – CU, solderless connectors (DIN 46341) according to DIN – Cu		50 – 240

Cable Tools

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
