Klauke

Thorne & Derrick | Distributed from Stock | Approved Supplier | UK & Export Sales

Klauke Tools

Cable Cutting & cable Crimping

Cable cutting and crimping tools manufactured by Klauke are renowned for high-quality, electrical connection tools for cable crimping, cutting and punching – special cable tooling solutions for applications in a range of different sectors.

Klauke tools are used by electrical contractors, cable jointers and linemen for underground cable and overhead conductor crimping and cutting on power, transmission and distribution networks including LV MV & HV systems, 11kV-33kV up to 132kV – this includes battery, hydraulic and ratchet type cable cutters.

Battery operated cable crimping tools are made from the highest quality materials, rust proof and surface finished with a reputation for providing a long service live, consistently delivering safe electrical cable crimping connections for low and high voltage applications, 6-400sqmm. See also: Cable Cutters – Battery Type.

Should you require technical support, product information or a demonstration of a specific Cable Crimping or Cutting Tool manufactured by Klauke please do not hesitate to contact us – this includes the Klauke range of innovative and safe remote cable cutting tools.

Klauke Tools for cutting cables

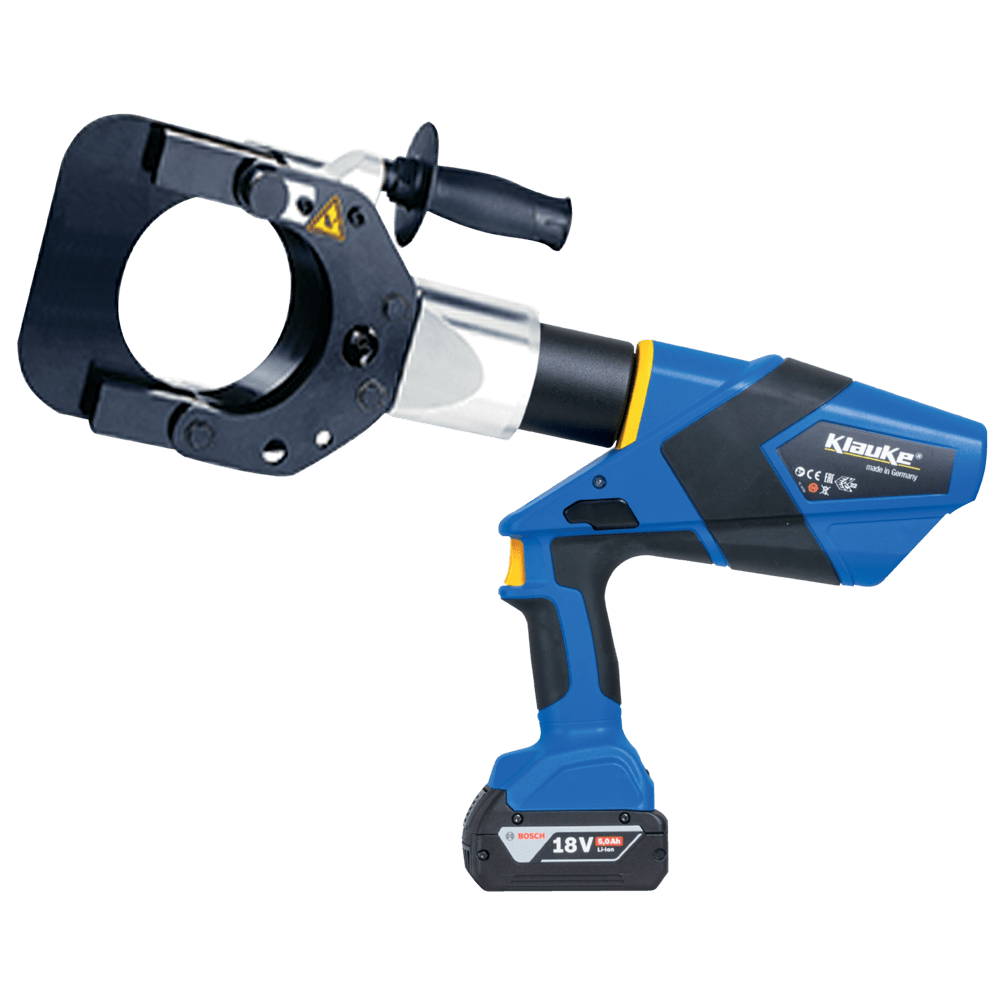

Klauke ESG105 Battery Hydraulic Cable Cutting Tool up to 105mm

• Cutting armoured (SWA) cables with copper and aluminium conductors
• 120kN cable cutting tool force for extremely wide cutting range up to 105 mm diameter
• Remarkably lightweight for tools in this Klauke performance class
• Saves time with multiple cuts thanks to innovative opening mechanism
• All tool data in view thanks to display and i-press® app

Should you require any further information about cable cutting tools, a product demonstration or a quotation for Klauke ESG105 please do not hesitate to contact us.

Battery Powered Cable Cutting Tool 105mm Dia – Klauke ESG105

Klauke Tools for crimping cables

Klauke EK135 Hydraulic Cable Crimping Tool up to 630sqmm

Should you require any further information about cable crimping tools, a product demonstration or a quotation for Klauke EK135 please do not hesitate to contact us.

Battery Powered Cable Crimping Tool 10-630sqmm – Klauke EK135FT

Battery Operating Cable Crimping & Cutting Tools

Battery type tools are preferred for repetitive application of cable crimp connectors and routine cutting of MV-HV cables, single or multi-core copper/aluminium conductors, armoured/non-armoured with lead sheath and copper tape or wire screens – compatible with all common LV-MV-HV cable insulation types (XLPE EPR Paper), contact us to discuss your application.

Although, voltage classification terminology has international variations Medium Voltage is a category defined by IEC as including cable voltages of above 1kV and up to 100kV, including European standard voltages of 11kV and 33kV.

Insulated Tools

The world‘s first battery hydraulic crimping and cutting tools with Tri-Insulation Barrier technology that provides users with 1000V protection against
electrical shocks.

Watch Video for further information.

Insulated Cable Cutters

The Klauke ES32SISML-WSH is a battery powered cable cutting tool with a maximum cutting range of 32mm suitable for use with copper and aluminium conductors up to 300sqmm. The Klauke ES32SISML has a slim cutting head for Jointers working in substations, switchgear and trenches with confined spaces – the insulated cable cutters provide advanced worker and electrical protection to utility contractors working live in the vicinity of energised Mains and Service cables up to 1000V.

Klauke cutting tools are available with 10.8V DeWalt Li-Ion Batteries and are fully insulated to the electrical requirements of IEC 60900.

Designed specifically for LV Cable Jointers, the ES32SIS-WSH features a shortened blade profile, minimizing the risk of accidental contact with an adjacent phase during cable cutting and jointing operations. The redesigned blade pivot point ensures maximum cutting leverage, allowing for the efficient cutting of single-core stranded copper and solid aluminium cables up to 300sqmm  lightweight, compact and providing ultimate electrical safety when cutting and working on LV networks and cables prior to Jointing or Terminating.

Insulated Cable Cutters

The Klauke Orange battery hydraulic Cutting and Crimping Tools are VDE-approved in accordance to IEC 60900and fully VDE-certified to IEC 62841-1. See full Klauke Orange range below:

Klauke EKM 60/22 ID ISM VDE battery powered hydraulic crimping tool 6 – 300 mm²	Klauke EKM 60 ID ISM VDE battery- powered hydraulic crimping tool 10 – 240 mm²
Klauke ES 20 ISM VDE battery-powered hydraulic cutting tool 20 mm dia.	Klauke ES 32 ISM VDE battery-powered hydraulic cutting tool 32 mm dia.

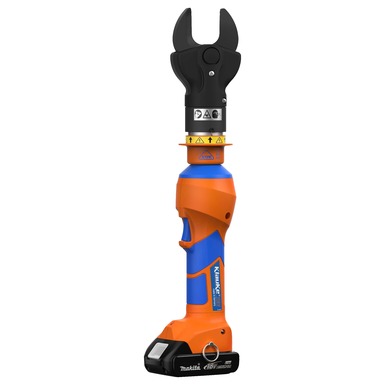

Klauke ES 25 ISM VDE battery powered hydraulic cutting tool 25 mm dia.	Klauke ESM 35 ISM VDE battery powered hydraulic cutting tool 35 mm dia.
Klauke ESM 50 ISM VDE battery powered hydraulic cutting tool 50 mm dia (copper + aluminium cables)

Bluetooth enabled tools from Klauke for cutting and crimping cables

Klauke – DISTRIBUTORS & SUPPLIERS

Thorne & Derrick provide competitive prices and fast delivery from stock for the complete range of Klauke cable cutting and crimping tools.

View the complete range of Klauke tools  ➡
