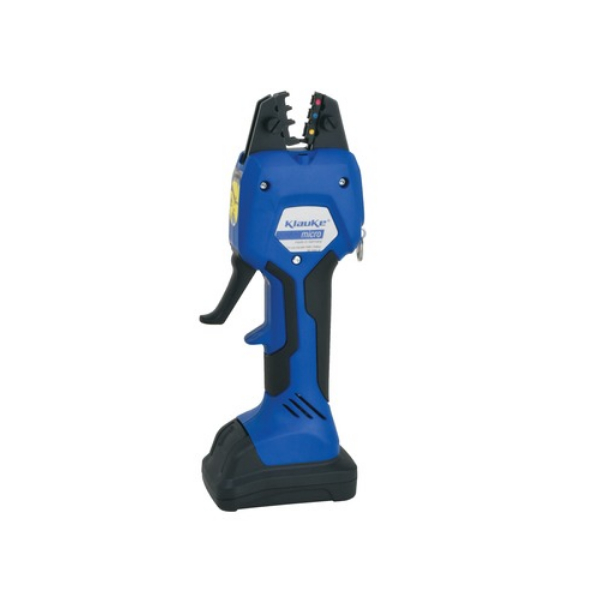

Klauke EK50ML
Cable Strip, Cut & Crimping Tool 6-35sqmm
The Klauke EK50ML is a battery powered cable strip, cut & crimping tool that is part of the Klauke Micro range which is an all rounder when it comes to cable stripping. Using the stripping dies there is now, for the first time, an electromechanical tool available on the market for stripping conductors from 6 to 35sqmm cross-section.
Until now, users could only strip cables in the range up to 16sqmm by applying physical force – either with manual wire stripping tools or with a knife. Compared to manual stripping with pliers, the Klauke EK50ML micro-strip is much faster and much safer to work with.
The Klauke EK50ML Electromechanical Crimping Tool is a speedy, simple-to-use, safe crimping tool that can be adjusted for a variety of applications. Due to its highly controlled action, the EK50ML also produces more accurate and consistent results than are possible using a hand-operated tool.

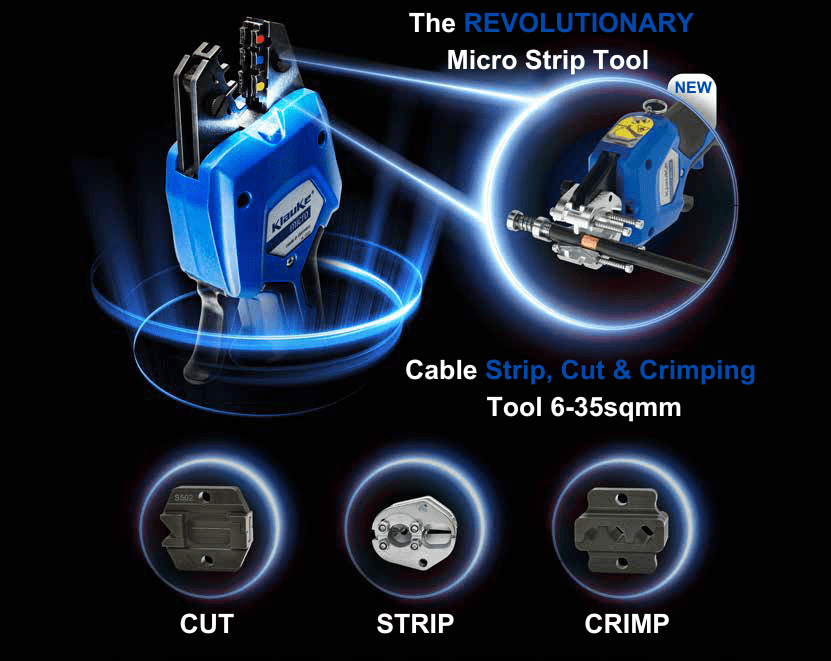

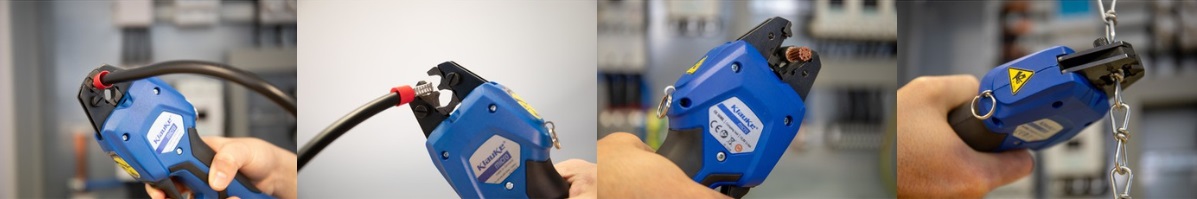

3-in-1 Micro Tool | Klauke EK50ML
 |
Cutting of various materials |

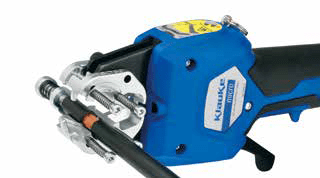

| Stripping (NEW Function) |  |
 |

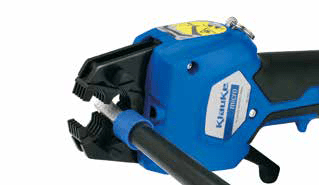

Crimping tools for cable end-sleeves |

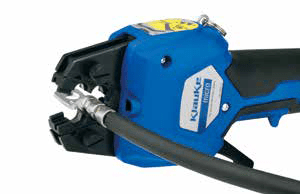

| Crimping tools for cable lugs |  |
 |

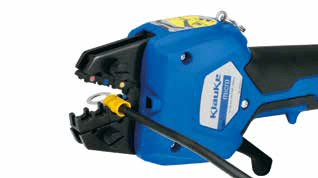

Crimping tools for solderless terminals |
Should you require any customer service or technical support in order to select the correct crimping or cutting tool for all types of LV MV HV electric cables please do not hesitate to contact us.
➡ See also: Battery Operated Cable Cutting Tools
Cable Stripping tool – EKSD50ML
Simply & Safely | No Conductor Damage to Cables

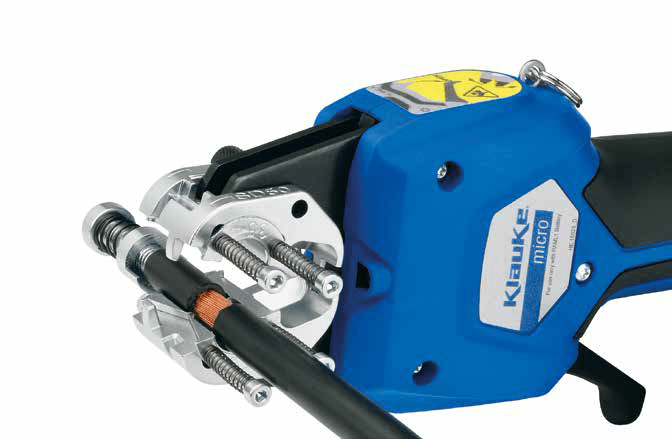

Electromechanical Wire Stripping Tool 6-35sqmm | EKSD50ML
Did you know? – Electromechanically effective: perfect results with only 20 % effort compared to a hand tool
The drawback of manual stripping are well known: repeated use of the muscles in the forearm can lead to fatigue and overloading.
Stripping more than a hundred conductors in one day? | No problem with the Micro!
Using the cable stripping dies, the Klauke micro becomes a tool that achieves consistently clean results – with considerably less force and significantly less strain on the joints.
Klauke Micro-Strip
It might be impossible using wire strippers but it‘s no problem for the Klauke micro-strip: large cross-sections up to 35 mm² can also be stripped as well as thick insulation (NSFGAÖU), double-insulated cable types plus harder and tougher insulation.
In many applications – for example in switch cabinet construction – stripping and cutting of cables are often completed simultaneously. By use of the integrated cutting die inside the stripping die, conductors of all classes can be cut, regardless of whether they are solid, stranded or fine-stranded.
Left & Right-Handed Variant
Does your work team include left-handed and right-handed people?
Then no need to worry, with the Klauke micro-strip it‘s no problem. The die can be used by both left- and righthanded people by changing the installation direction accordingly.

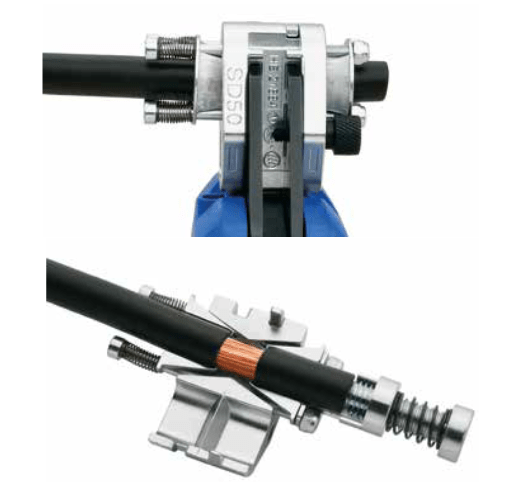

Cable stripping TOOL function
The cutting cones are guided and connected by pins (screws) and pretensioned into the initial position by compression springs.
- When the tool is operated, the die bodies approach each other and the cutting cones cut into the cable
- Further activation of the tool causes the cones to move axially and strip off the jacket
The stripping length can be adjusted using the stop sleeve, thus ensuring consistent quality.
Stripping Tool Function

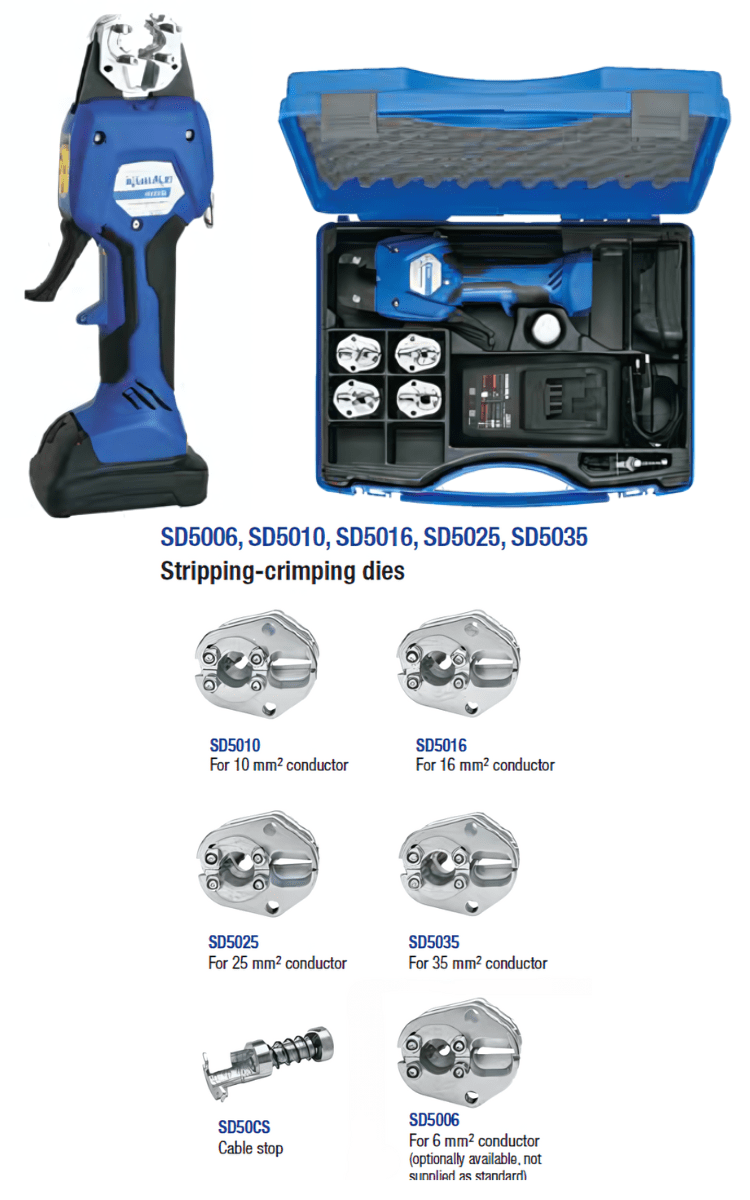

Klauke EKSD50ML Cable Stripping-Crimping Dies
Scope of Tool Supply
| Klauke Part Reference | Tool Description |
| SD5010 | Stripping die for 10sqmm conductor |
| SD5016 | Stripping die for 16sqmm conductor |
| SD5025 | Stripping die for 25sqmm conductor |
| SD5035 | Stripping die for 35sqmm conductor |
| SD50CS | Cable Stop |
| KKEK50ML | Plastic Carry Case |
| KTG-H1 | Total Grease |
| LGML1 | Charger for 10.8 V Li-Ion rechargeable batteries, 230 V |
| RAML1225 | Rechargeable battery 10.8 V / 2.5 Ah, Li-Ion (27 Wh) |
CRIMPING – CABLE END-SLEEVES
Perfect crimping tool for results using crimping dies for cable end-sleeves

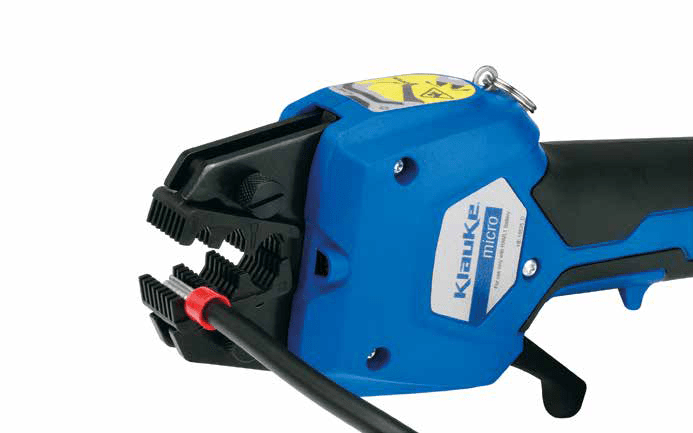

Crimping Cable End-Sleeves 0.5-50sqmm | EKWF50ML

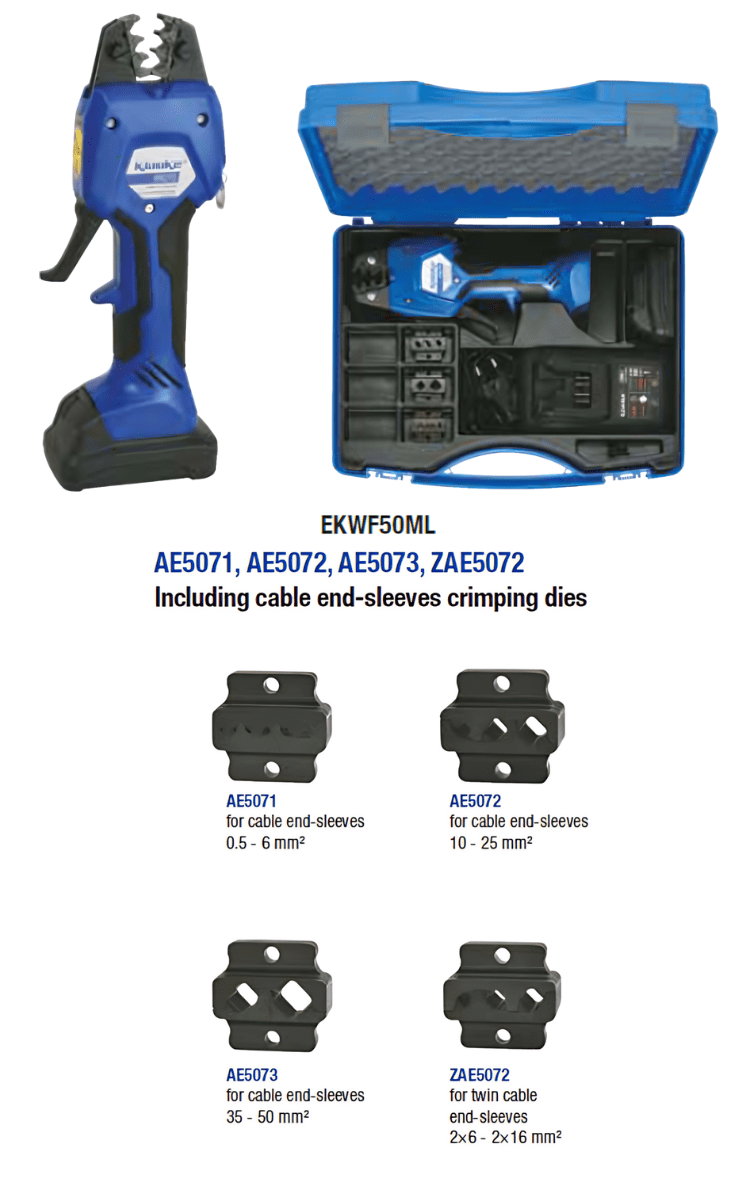

Klauke EKWF50ML Cable End-Sleeves Crimping Dies
Scope of Tool Supply
| Klauke Part Reference | Tool Description |
| AE5071 | Crimping die for cable end-sleeves, 0.5 – 6 sqmm |
| AE5072 | Crimping die for cable end-sleeves, 10 – 25 sqmm |
| AE5073 | Crimping die for cable end-sleeves, 35 – 50 sqmm |
| ZAE5072 | Crimping die for twin cable end-sleeves, 2×6 – 2×16 sqmm |
| KKEK50ML | Plastic Carry Case |
| KTG-H1 | Total Grease |
| LGML1 | Charger for 10.8 V Li-Ion rechargeable batteries, 230 V |
| RAML1225 | Rechargeable battery 10.8 V / 2.5 Ah, Li-Ion (27 Wh) |
CRIMPING – INSULATED CONNECTORS
Highly Versatile Cable Crimping Tool

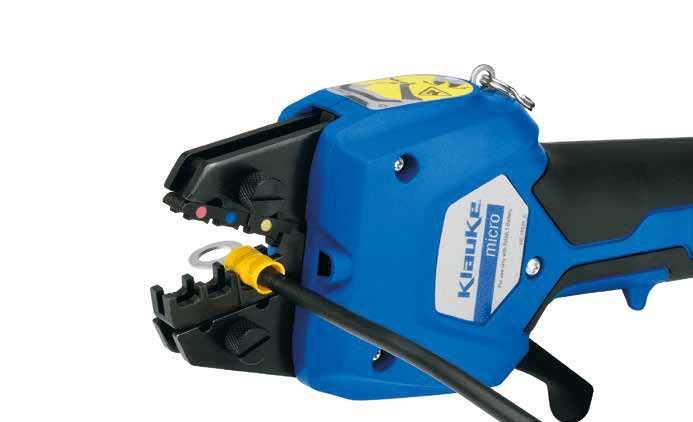

Crimping Insulated Connectors 0.14-50sqmm – EK50ML

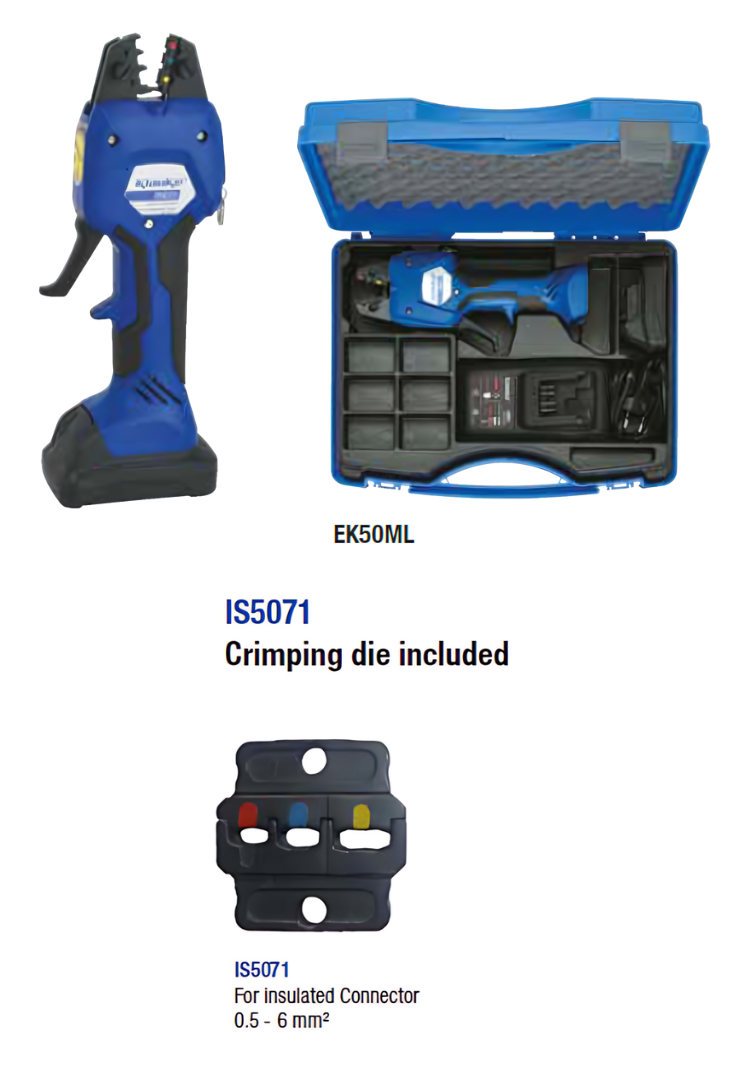

Klauke EK50ML Crimping Insulated Connectors
Scope of Supply
| Klauke Part Reference | Tool Description |
| IS5071 | Crimping die for insulated connectors 0.5 – 6 sqmm |
| KKEK50ML | Plastic case |
| LGML1 | Charger for 10.8 V Li-Ion rechargeable batteries, 230 V |
| RAML1225 | Rechargeable battery 10.8 V / 2.5 Ah, Li-Ion (27 Wh) |
Cutting Tool
One Die Countless Possibilities
Electromechanical Cutting Tool 0.5 – 50sqmm – EC50ML
New Klauke Tooling Function

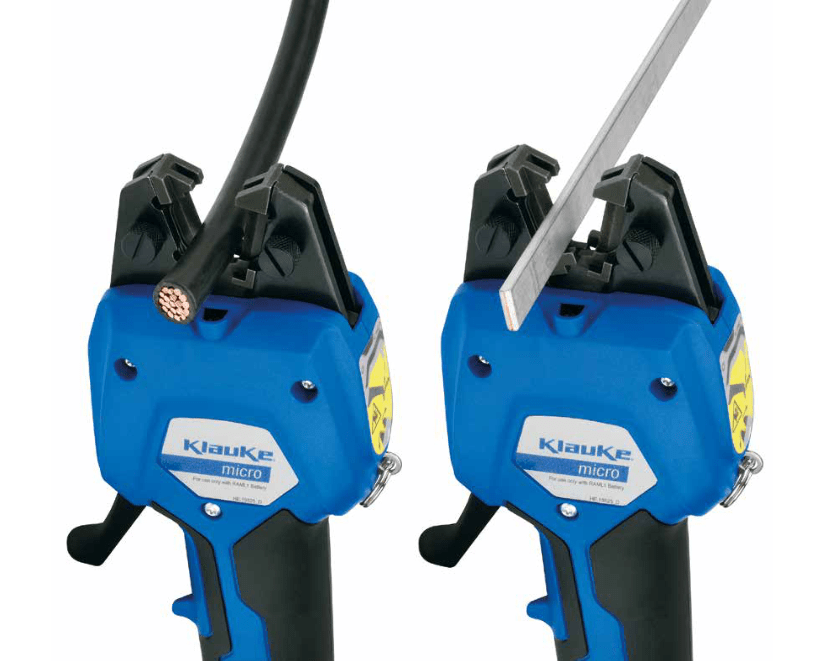

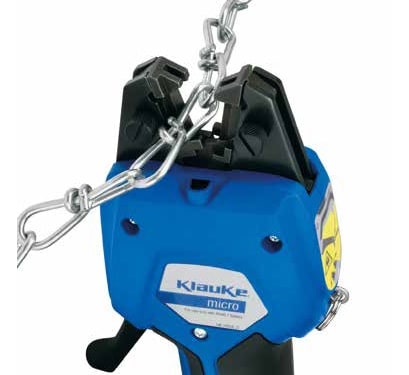

Thanks to the new S502 cutting die, the Klauke micro gains a whole new function. A simple change of die now transforms the Klauke micro into a cutting tool. This makes it possible to cut double-loop chains, Class 2 cables up to 25 sqmm, copper busbars up to 3 mm × 10 mm, or steel cables up to 3 mm.
The die is designed to make cutting of copper, aluminium and steel bands no trouble at all. This is facilitated as well by pre-clamping to ensure cutting begins at the right location and goes easy on the operator’s arm thanks to the motor-driven technology.

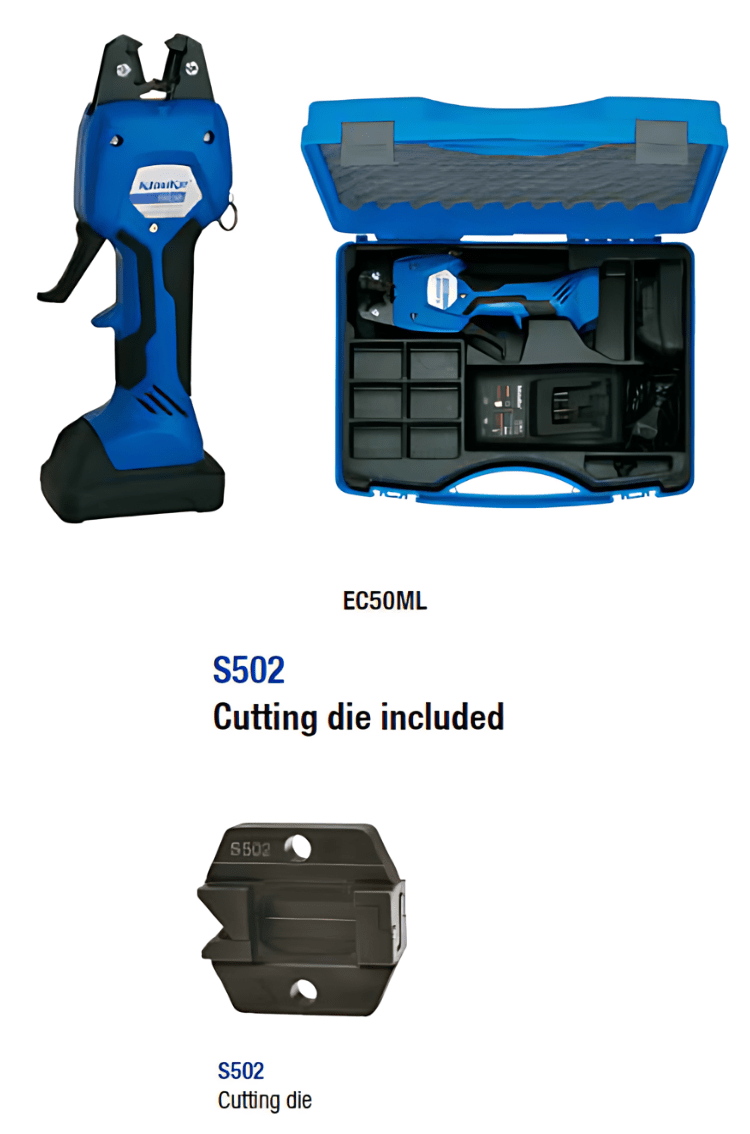

Klauke EC50ML Electromechanical Cutting Tool
Scope of Supply
| Klauke Part Reference | Tool Description |
| S502 | Cutting die |
| KKEK50ML | Plastic case |
| LGML1 | Charger for 10.8 V Li-Ion rechargeable batteries, 230 V |
| RAML1225 | Rechargeable battery 10.8 V / 2.5 Ah, Li-Ion (27 Wh) |
KLAUKE EK50ML

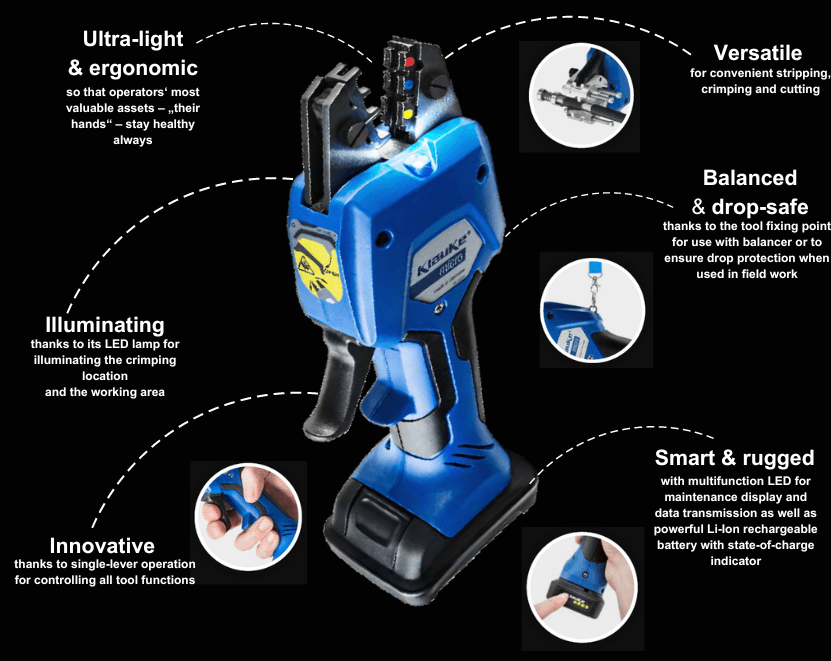

Features & Benefits
- Micro compact & handy tool ro cut, crimp and strip cables
- Versatile for convenient stripping, crimping and cutting
- Ultra-light and ergonomic so that operators’ most valuable assets ‘their hands’ – stay healthy always
- Illuminating thanks to its LED lamp for illuminating the crimping location and the working area
- Innovative thanks to single-lever operation for controlling all tool functions
- Smart and rugged with multifunction LED for maintenance display and data transmission as well as powerful Li-Ion rechargeable battery with state of the art indicator
- Balanced and drop-safe thanks to the tool fixing point for use with balancer or to ensure drop protection when used in filed work
Klauke EK50ML Features & Benefits

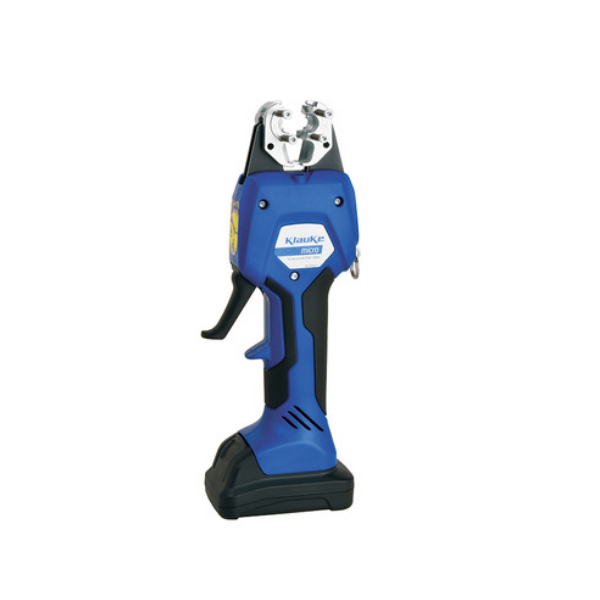

Klauke EK50ML
Tool Technical Data
| Battery voltage | 10.8 V |
| Battery capacity | 2.5 Ah, Li-Ion |
| Battery charging time | 45 min |
| Weight with Battery | 0.96 kg |
| Ambient temperature | -10 °C to +40 °C |
POWERSENSE FUNCTION

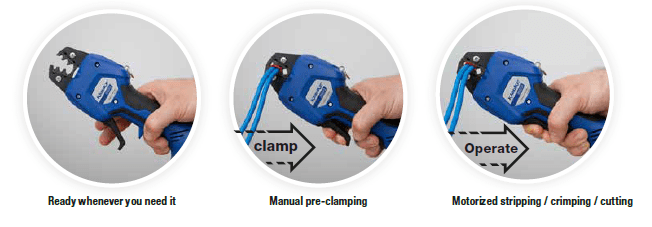

What makes the Klauke micro so unique is its innovative operating concept with PowerSense function. Workpiece pre-clamping is done by hand – with the familiar precision and speed of mechanical crimping pliers. The stripping, cutting or crimping operation is performed automatically using the force of the integrated motor.
This micro tool features the intuitive PowerSense function and combines the benefits of manual crimping tools with the convenience of battery powered hydraulic crimping tools.
The Klauke EK50ML electro-mechanical crimp tool features a single lever trigger control for all tool functions. This ergonomic lightweight crimp tool with PowerSense function makes this versatile tool essential for high volume crimping.
The enormous easing of the burden on nerves and muscles thanks to the PowerSense function is particularly worthwhile when you consider the costs that can arise from lost working
time of employees, for example due to carpal tunnel syndrome.
- Fewer symptoms of stress overloading
- Less lost working time and fewer delays in schedule
- Greater planning security for everyone
 |
 |

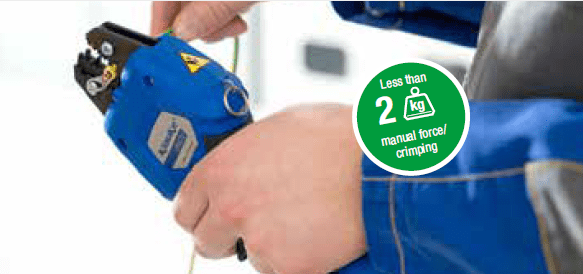

| Frequent manual crimping: leads, in the long term, to repetitive strain injuries in the wrist and forearm | Motorised crimping with innovative PowerSense function: ensures optimised efficiency with low strain and minimum health risk. |
How the Klauke EK50ML tool works?
Klauke Tools | Reviews

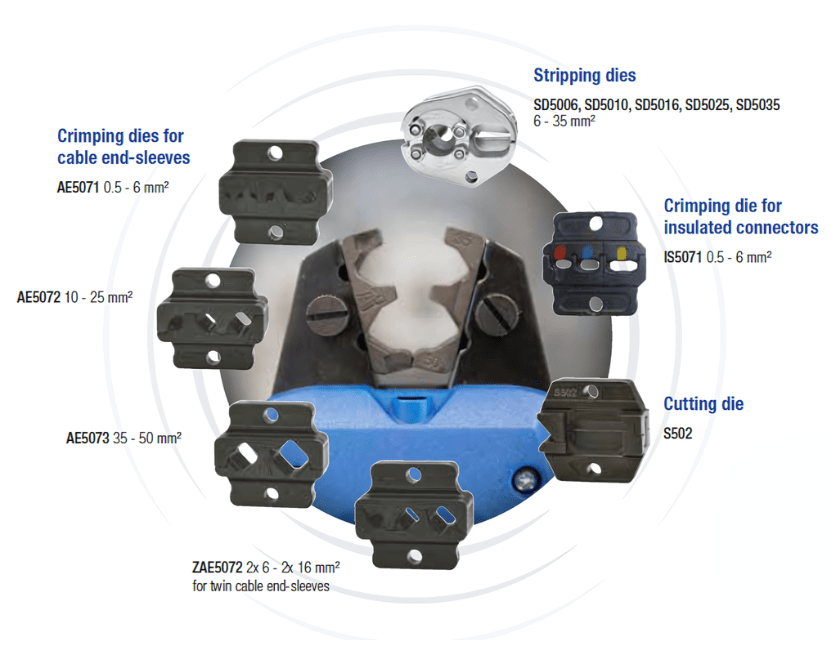

BATTERY POWERED CABLE CRIMPING TOOL – DIES
The following diagram show the correct die sets to use for installing cable lugs, connectors, joints and end sleeves using Klauke EK50ML crimping tool:

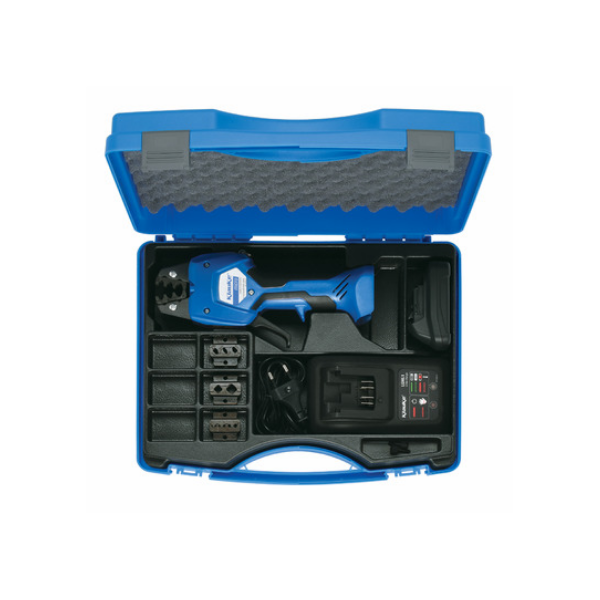

Full Tool Kit – L-BOXX WITH ELECTROMECHANICAL CRIMPING TOOL
Klauke EK50ML Tool & Additional Equipment
| Klauke LBOXXEK50ML SCOPE OF TOOL SUPPLY |
||
| Klauke Part Reference | Description | Quantity |
| 3R8 | Tubular cable lug without inspection hole, 16 sqmm, M8, Cu tin-plated |
25 |
| 47612 | Insulated Cable end-sleeves, 10 sqmm, 22 mm | 50 |
| 47712 | Insulated Cable end-sleeves, 16 sqmm, 24 mm | 50 |
| 47818 | Insulated Cable end-sleeves DIN 46228 Part 4, 25 sqmm | 25 |
| 47918 | Insulated Cable end-sleeves DIN 46228 Part 4, 35 sqmm | 25 |
| 48025 | Insulated Cable end-sleeves DIN 46228 Part 4, 50 sqmm, 40 mm length |
20 |
| 4R8 | Tubular cable lug without inspection hole, 25 sqmm, M8, Cu tin-plated |
25 |
| 652C6 | Insulated Solderless terminal M6, 10 sqmm, fork type | 50 |
| AE5072 | Crimping dies for cable end-sleeves, 10 – 25 sqmm | 1 |
| AE5073 | Crimping dies for cable end-sleeves, 35 – 50 sqmm | 1 |
| EK50ML | Electromechanical crimping tool 0.14 – 50 sqmm | 1 |
| IS5072 | Crimping dies IS 50, simple crimping, 10 – 16 sqmm | 1 |
| K118 | Manual cutting tool for Al- and Cu cables up to Ø 12 mm | 1 |
| LBOXX136LFG | L-BOXX with front handle (B/T/H: 442 x 357 x 151 mm) | 1 |
| LGML1 | Charger for 10.8 V Li-Ion rechargeable batteries, 230 V | 1 |
| R505 | Crimping dies R 50, 16 – 25 sqmm | 1 |
| RAML1225 | Rechargeable battery 10.8 V / 2.5 Ah, Li-Ion (27 Wh) | 1 |
Klauke ML family | INNOVATIVE TECHNOLOGY
Thanks to its lightweight design and size, the tools of the Klauke ML family are the ideal tools when working in confined spaces, thereby speeding up and simplifying the work to be done. Equipped with a 2.5 Ah rechargeable battery, one charge easily suffices to get the job done for an entire working day. The Klauke Micro is the perfect supplement to the Klauke ML family portfolio.
 |
 |
 |
 |
 |

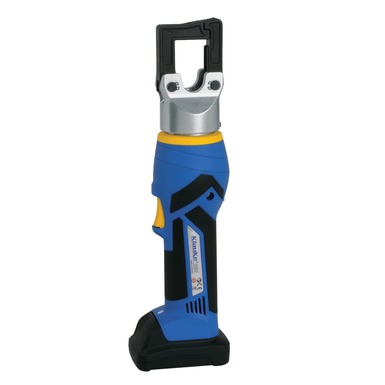

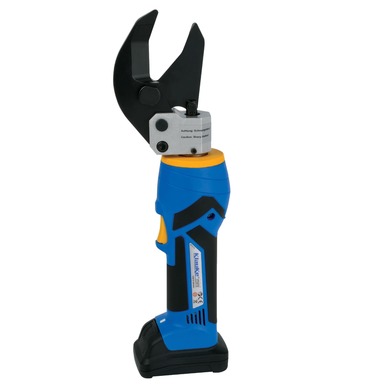

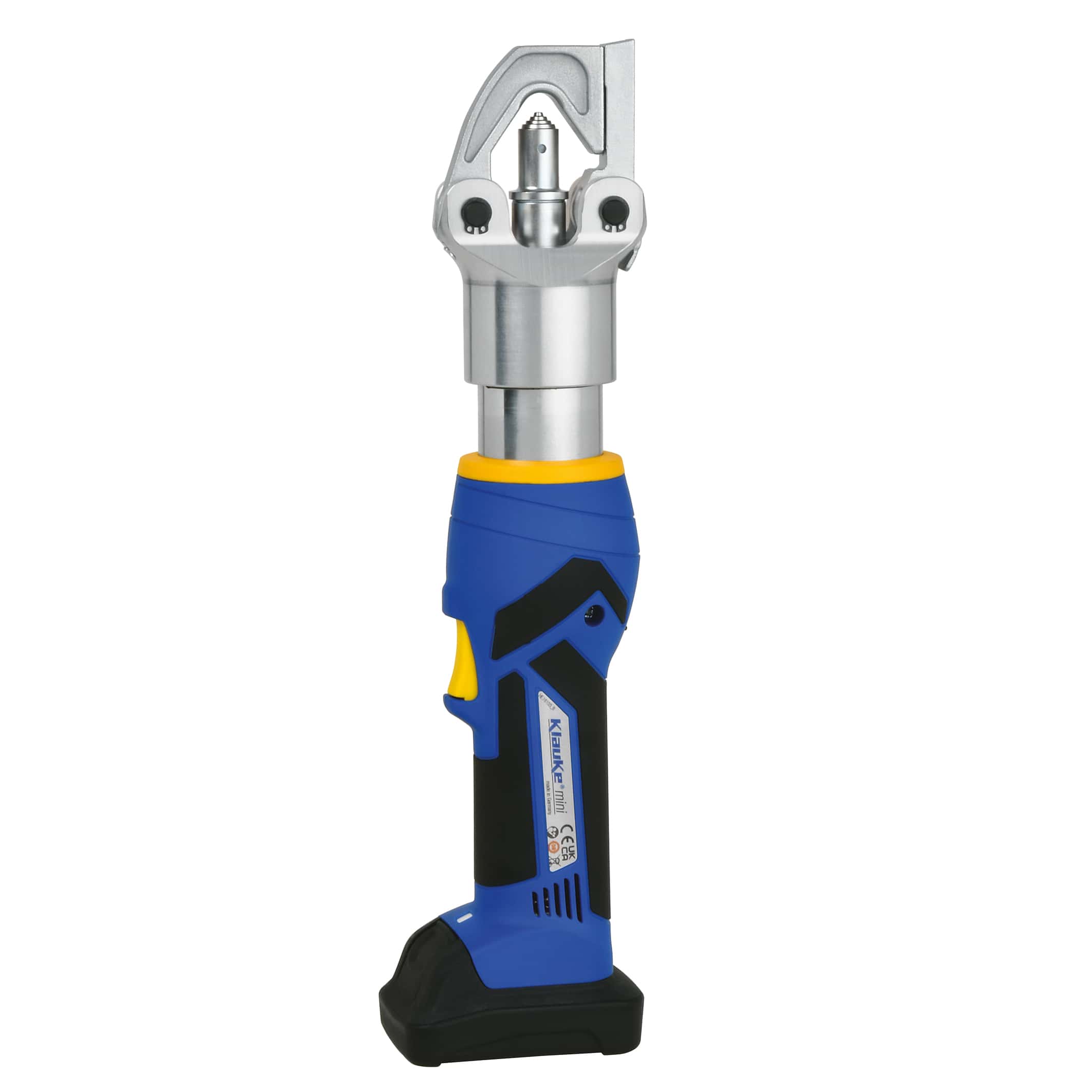

| EKWF120ML | EK30IDML | EK50ML | ES32ML | EK354ML |
CABLE TOOLS
Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.
Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
View the complete range of Cable Crimping & Cable Cutting Tools
Klauke Micro EK50ML Micro Strip Tool – BrochureDownload
