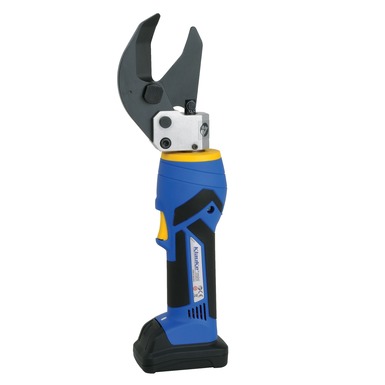

Klauke ES32FML | Battery-powered cutting tool 32mm

Klauke Es32Fml Battery-Powered Cutting Tool

£POA

Request a Quote

Call Us: +44 (0)191 410 4292

The Klauke ES32FML is a compact, high-performance battery-powered cutting tool engineered for precise and reliable cutting of solderless terminals, connectors, and pin terminals in both industrial environments and on-site electrical applications.

klauke Es32fML Description

The Klauke ES32FML is a refined, professional battery-hydraulic cutting tool tailored for fine and superfine stranded copper cables in confined installations.

Delivering a powerful 15 kN cutting force, the Klauke ES32FML handles fine and superfine-stranded copper cables up to 32 mm diameter with ease.

Powered by a 10.8 V Li-Ion battery system, it offers cordless flexibility, quick recharging (40 min) and a compact, lightweight form (1.8 kg including battery), which makes it ideal for on-site use.

With its slim, open-rotatable head and one-button operating concept, the tool is specifically designed for use in tight spaces and restricted access areas.

Electronic control monitors the cutting process and includes automatic retraction once the cutting cycle is complete, as well as a maintenance LED display for user convenience.

Contact our experts – Order or learn more about the Klauke ES32FML and our full range of Klauke cutting tools, batteries and compatible dies.
We provide technical advice, quotations and fast delivery for both UK & export projects.

Contact Our Experts

klauke eS32Fml hydraulic cUTTING tool – Technical Specifications

ES32FML Electrical Features
Cutting Range	max. 32 mm dia.
Cutting Force	15 kN
Cutting Time	8s to 10s (depending on material thickness)
Number of Cuts	approx. 150 at H07V-K 185 mm²
Battery Voltage	10.8 V
Battery Capacity	2.5 Ah, Li-Ion
Battery Charging Time	approx. 45 min.
Weight including battery	1.8 kg
Ambient Temperature	-10 °C to +40 °C

KLAUKE ES32FML HYDRAULIC CABLE CUTTING TOOL – FEATURES

Open head, rotatable
Electronic control and monitoring of the work process
Simple and safe: One-button operating concept for controlling all tool functions
Comfortable and safe one-handed operation thanks to ergonomic 2-component plastic housing with soft insert.
Fatigue-free work thanks to low weight
Simple and safe: Automatic return after completion of the work process
Maintenance indicator via LED
