Lucy SLF2 Street Lighting DNO Cut Outs SNE CNE
Lucy SLF2 Street Lighting DNO Cut Outs SNE CNE

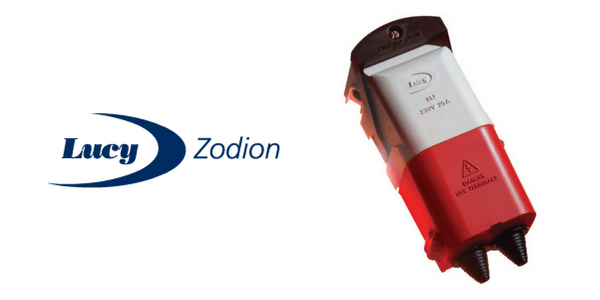

Lucy SLF2 is a range of street lighting DNO cut outs suitable for 25A maximum fuse rating available in both single pole SNE and CNE variants – double pole version available for CNE systems and a new version with insulation piercing connectors (IPC) for use when insulation shrink back is identified.
Lucy SLF2 is supplied with torque control 3mm hex-head terminal screws and an improved terminal block layout with serrated bores to improve electrical connection – accepts 25sqmm conductors for simpler and faster installation. IP44 version is available with an optional grommet pack.
The street lighting cut out is supplied with two internal compression clips to safeguard against insulation shrink back and accepts fuse links to BS 88 Part 1 and AC16 offset tag type which can be bought separately.
Lucy SLF2 Street Lighting DNO Cut Outs
Lucy SLF2 Street Lighting DNO Cut Outs SNE CNE
features & benefits
- Cam operated lever for easy and safe fuse disconnection
- Compact product size for use in all column bases above 114mm diameter
- PA6 glass filled thermoplastic fuse carrier and base with interlocking covers
- Electro-tin plated terminal blocks and clips
- Fully shielded test probe access, provides additional safety for operatives when testing
- Clearly legible embossed terminal markings
- Integral gland plate with cable entry via two 20mm diameter PVC conical grommets to accept a range of cable sizes
- Angled upper cable exit assists drip arrest
- Pre-loaded PZ2 (Pozidrive) corrosion resistant fixing screws supplied to attach unit to backboard
- Captive cover screws suitable for Pozidrive or slotted fixing
- Designed for separate DNO and Local Authority security seals
- Fully recyclable plastic and metallic parts
LUCY SLF2 STREET LIGHTING DNO CUT OUTS
Product Offering
| Lucy SLF2 Part Number | Street Lighting Cut Out Description |
| THM0052768 | SLF – SP – Type 1 (SNE) with 3mm head screws and individually boxed |
| THM0052866 | SLF – SP – Type 2 (CNE) with 3mm Hex head screws |
| THM0052888 | SLF – SP – Type 2 (CNE) with 3mm Hex head screws and clear Polycarbonate cable cover |
| THM0053115 | SLF – DP – Type 5 (CNE) with 3mm Hex head screws |
| THM0053170 | SLF – DP – Type 5 (CNE) with 3mm Hex head screws and clear Polycarbonate cable cover |
| THM0048847 | SLF – SP – Type 1 (SNE) IPC version with 3mm Hex Head screws |
| THM0041767 | SLF – SP – Type 2 (CNE) IPC version with 3mm Hex Head screws |
LUCY SLF2 Technical Specification
| Performance | |
| Rated operational voltage | 230VAC |
| Rated frequency | 50/60Hz |
| Rated continuous current | 25A |
| Maximum environmental pollution | Degree 3 |
| Environmental conditions | -25 to +40 Celsius |
| IP rating (covers in place) | IP22 |
| IP rating (optional grommets fitted) | IP44 |
| Recommended Terminal Torque Settings | |
| Ø 6mm standard screw | 2.25Nm |
| Ø 8mm IPC screw | 3.5Nm |
| Standards | |
| Full conformity | BS 7654 |
| IP rating | BS EN 60529 |
| Dimensions | |
| Weight | CNE =287g |
| SNE = 315g | |
| Height | 150mm |
| Width | 76mm |
| Depth | 60mm |
Lucy SLF2 Street Lighting DNO Cut Outs SNE CNE – Dimensions
Lucy SLF2 Street Lighting DNO Cut Outs SNE CNEDownload
