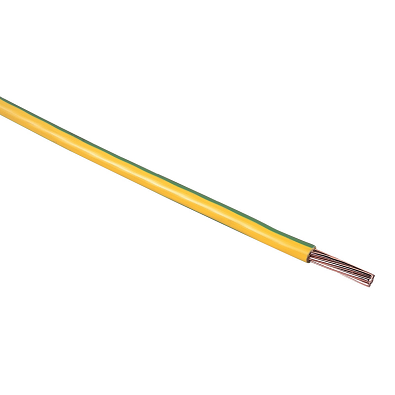

PVC Insulated Stranded Copper Cable

Furse

Copper conductors are used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete forming part of the Furse range of conductors.

Furse PVC insulated stranded copper cable is available in a range of sizes to meet differing current ratings (see product information table below).

Furse Product Details

PVC insulated stranded copper cable is supplied unbranded

Earthing Standards

BS EN 50525 (copper)
BS 6746C (PVC colour)
BS 6004

Furse Green & Yellow PVC Insulated Stranded Copper Tape	Cross-sectional area (sqmm)	Stranding no. / mm ø	Colour range	Weight per metre (kg)
CC016	16	7/1.70	Green & Yellow	0.19
CC025	25	7/2.14	Green & Yellow	0.29
CC035	35	7/2.52	Green & Yellow	0.41
CC050	50	19/1.78	Green & Yellow	0.53
CC070	70	19/2.14	Green & Yellow	0.73
CC095	95	19/2.52	Green & Yellow	1.00
CC120-FU	120	37/2.03	Green & Yellow	1.27
CC150-FU	150	37/2.25	Green & Yellow	1.54
CC185	185	37/2.52	Green & Yellow	2.01
CC240	240	61/2.25	Green & Yellow	2.49
CC300	300	61/2.52	Green & Yellow	3.05
CC400-FU	400	61/2.85	Green & Yellow	3.90
