Ridge Saddle | Furse

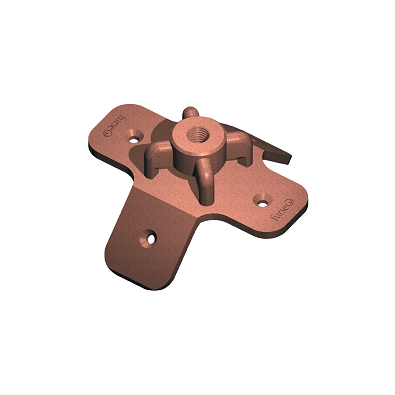

Ridge Saddle
Furse
Furse range of ridge saddles are manufactured from high quality copper or aluminium alloy, ensuring that a high level of conductivity is maintained throughout the air termination system.
Furse Product Details
-
Manufactured from high quality alloys of either copper or aluminium
-
Simple to install
-
Provide an effective fixing for lightning conductor air rods on ridges
-
Fix using countersunk wood screws 1½” No.10 or M6 (Part no. SW005) and wall plugs (Part no. PS305)
-
Tightening torque 15 Nm
Earthing Standards
- BS EN 62561-1 Class H (SD115)
| Furse Ridge Saddles | Air rod diameter (mm) | Thread size | Max conductor width (mm) | Conductor material | Weight each (kg) |
| SD015 | Ø 15 | M16 | 31 | Aluminium | 0.45 |
| SD115 | Ø 15 | M16 | 31 | Copper | 1.07 |
