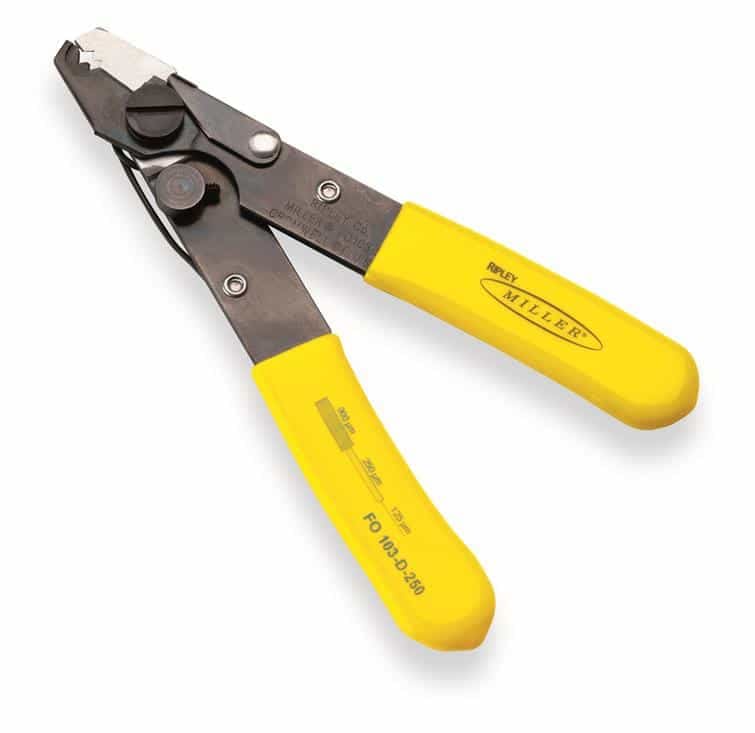

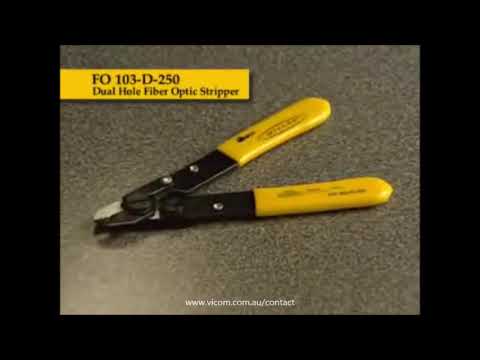

Fibre Optic Cable Strippers “Dual-Hole” – Ripley Miller FO 103-D-250

Fibre Optic Cable Strippers “Dual-Hole” - Ripley Miller FO 103-D-250

Fibre Optic Cable Stripping Tool

Ripley miller FO 103-D-250

FO 103-D-250 is a fibre optic cable stripper manufactured by Ripley Miller with a second hole for stripping 900 micron tight buffer down to 250 micron buffer coating and standard 125 micron fibre stripping (250 micron removal to 125 micron). This allows for longer stripping lengths without damaging the fibre.

The two hole design of this compact tool is factory-set and does not require any adjustment in the field to efficiently strip away the 1.6 to 3 mm cable jacket. Manufactured to precise tolerances, the diameter holes and the V-openings in the blade allow for both accurate and clean stripping without scratching or nicking the bare fibre.

A pivot pin, spring & precision handles with printed stripping reference enhance the functionality & durability of the FO 103-D-250 stripping tool.

Ripley Miller Cable Stripping Tools

Miller - Cable Tools

FO 103-D-250 & FO 103-D-J

Specification & Feature

  • Easy-to-read stripping diagrams imprinted on handles
  • Made in the U.S.A.
  • Length: 5.375 in. (137 mm)
  • Weight: 2.5 oz (71 g)
  • FO 103-D-250 Part Number: Miller 80675

➡ T&D distribute a complete range of Cable Jointing Tools for the Fibre Optics, Electrical, Electronics and Telecommunications industries – Miller is a brand of Ripley for wire and cable preparation tools for power, transmission and distribution.

Cable Stripping Tool Model Order Code 1st Hole Application 2nd Hole Application
FO 103-D-J 80676 1.6mm – 3mm Jacket → 600 – 900 µm Tight Buffer 250µm Buffer Coating → 125 µm Bare Fibre
FO 103-D-250 80675 900 µm Tight Buffer → 250 µm Buffer Coating
