Mid-Span Tree Wire & Spacer Cable Stripper (26.67 to 45.72mm) – Ripley WS10

Mid-Span Tree Wire & Spacer Cable Stripper (26.67 to 45.72mm) - Ripley WS10

Cable Stripping Tools

Ripley Ws10

Ripley WS10 is a cable stripping tool used when mid-span stripping, jointing and terminating overhead lines and primary distribution cables.

The Ripley WS10 is for 26.67mm – 45.72mm cables O.D and features a choice of handles. The mid-span cable stripper is made to suit specific cable size, designed with hotstick operation and has the ability to operate on all tree wire and spacer cables.

WS10 is able to strip at the end or any point along the cable length to any length in one continuous operation.

Features of Ripley WS10 Cable Stripper

Non-adjustable tool features a fixed cable diameter with a diameter selection from 1.05″ to 1.8″ (26.67 to 45.72 mm) for stripping to any length at any point along the cable end or mid-span
Designed for gloved hand & hot stick operation on all tree wire & spacer cables
Models are double-ended with two plastic handles or two 3/4″ (19 mm) rings

Ripley Cable Tools | Jointing, Splicing & Cable Preparation Tools for Underground Cables & Overhead Line Conductors | LV MV HV

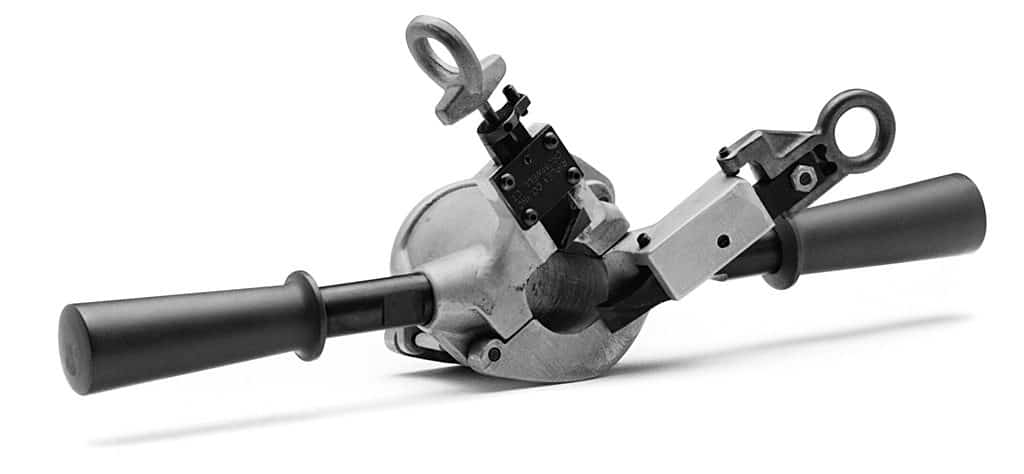

Ripley WS10 Mid-span cable stripper

specifications

For 1.05 to 1.80 in. (26.67 to 45.72 mm) Cable O.D.
Operates on all tree wire and spacer cables
Strips to any length
Strips at end or any point along cable length (mid-span)
Designed for gloved hand and HOT STICK operation
Separate tool required for each cable size
“K” models have two cutting blades
Made in the U.S.A.
Length: 15 in. (381mm) end-to-end WSRK 10: 12 in. (305 mm)
Weight: 4 lb (1.81 Kg)
More: Cable Strippers Tools – Primary Distribution
Also: Cable Strippers Tools – Secondary Distribution

Ordering Information

Select the type of cable tool handle required
Send T&D a cable sample and/or a cable specification sheet identifying cable O.D. and insulation thickness

Cable Stripper Model	Order Code	Handles	Length	Replacement Blade Order Code	Insulation Thickness	Cable Selection
WSP10	11300-XXX	Plastic	15″ (381mm)	11313	< 200 mils	1.05″ – 1.80″ (26.67 – 45.72mm)
WSR10	11335-XXX	¾” (19mm) Rings		11313
WSPK10	11330-XXX	Plastic		19704, 34782
WSRK10	11345-XXX	¾” (19mm) Rings		19704, 34782

➡ Related Cable Stripping Tools – WS2 Series | WS1 Series

Tree Wire Cables

Tools For Tree Wire & Spacer Cables

Tree wire or covered open wire consists of the conductor (aluminium, aluminium alloy or ACSR) and the extruded covering (conductor shield, low density inner layer and protective outer layer).

Tree Wire cable is used for spans where trees impair the right-of-way, this includes wooded residential areas, when a minimum of interference with the environment is desired.

Covering minimises power outages due to conductor contact with tree limbs, reducing the need for frequent or severe trimming.
