High Voltage Pencilling Tool For 33kV-69kV Cables (1/0 to 1000MCM) – Ripley WS 16

Ripley WS 16

HV Pencilling Tools

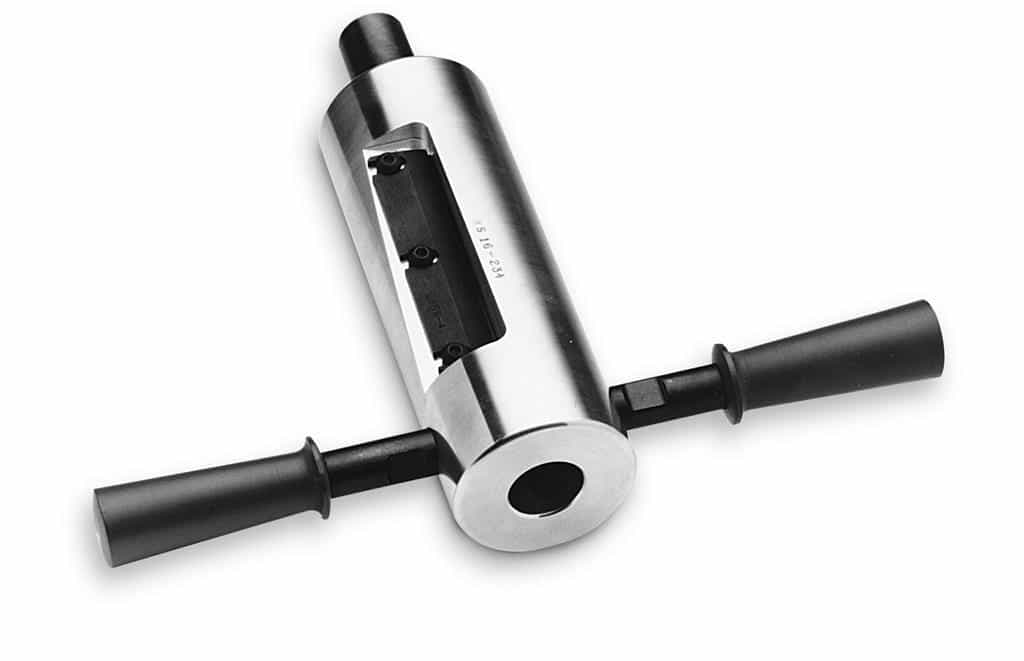

Ripley WS 16

The Ripley WS 16 is a high voltage cable jointing tool used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley WS 16 tool is for use with transmission and distribution cables and comes with a guarded cutting blade for safety assurance.

The high voltage tool’s pencilling operation takes less than five minutes and has fast and smooth tapers.

In addition, the Ripley WS 16 can expose conductor strand and shielding if required.

RIPLEY WS 16 HIGH VOLTAGE CABLE JOINTING TOOL

SPECIFICATION

For transmission and distribution cables
Complete pencilling operation takes less than five minutes
Can expose conductor strand shielding if required
One tool for each cable/conductor size
Fast, smooth tapers
Safety assured with guarded cutting blade
Insulation on cable end must be stripped prior to pencilling. Use Model WS 70, WS 57 or WS 57A end strippers. Semi-con shield should also be removed prior to pencilling with WS 9A/9C, WS 40, or WS 57A
Made in the USA

➡ T&D distribute a complete range of Utility Cable Tools for primary, secondary distribution and transmission applications – Utility Tool is a brand of Ripley for wire and cable preparation tools for power, transmission and distribution.
