High Voltage Pencilling Tools For 33kV-46kV Cables (1/0 to 750MCM) – Ripley WS 17

Ripley WS 17

HV Pencilling Tools

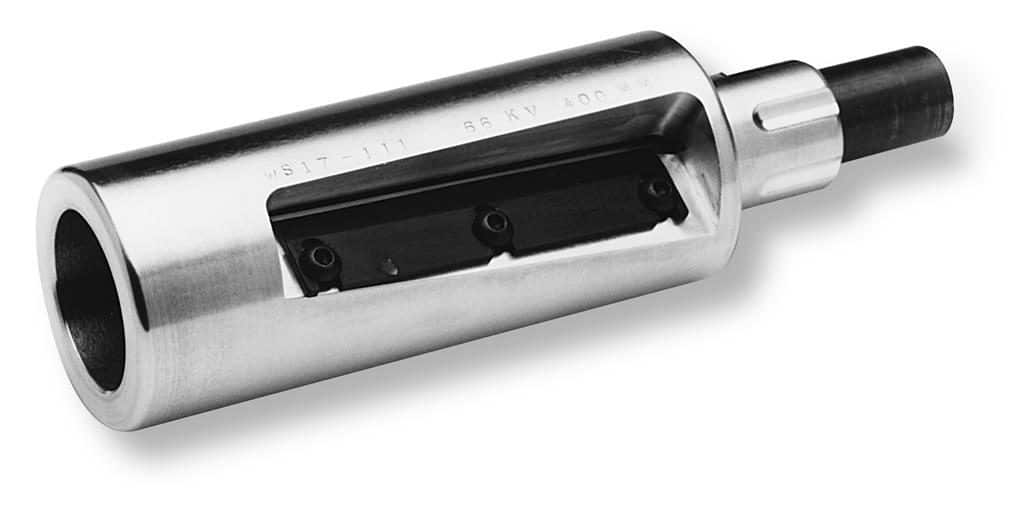

Ripley WS 17

The Ripley WS 17 is a high voltage cable jointing tool used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables. It is for use with transmission and distribution cables and comes with a guarded cutting blade for safety assurance.

The high voltage tool’s pencilling operation takes less than five minutes and has fast and smooth tapers. In addition, the Ripley WS 17 can expose conductor strand and shielding if required.

RIPLEY WS 17 HIGH VOLTAGE CABLE JOINTING TOOL

SPECIFICATION

For transmission and distribution cables
Complete pencilling operation takes less than five minutes
Can expose conductor strand shielding if required
One tool for each cable/conductor size
Fast, smooth tapers
Safety assured with guarded cutting blade
Insulation on cable end must be stripped prior to pencilling. Use Model WS 70, WS 57 or WS 57A end strippers. Semi-con shield should also be removed prior to pencilling with WS 9A/9C, WS 40, or WS 57A
Made in the USA
