Adjustable Jacket, Insulation & Semi-Con End Stripper For High Voltage Cables – Ripley WS 57

Ripley WS 57

Cable stripping tools

Ripley WS 57

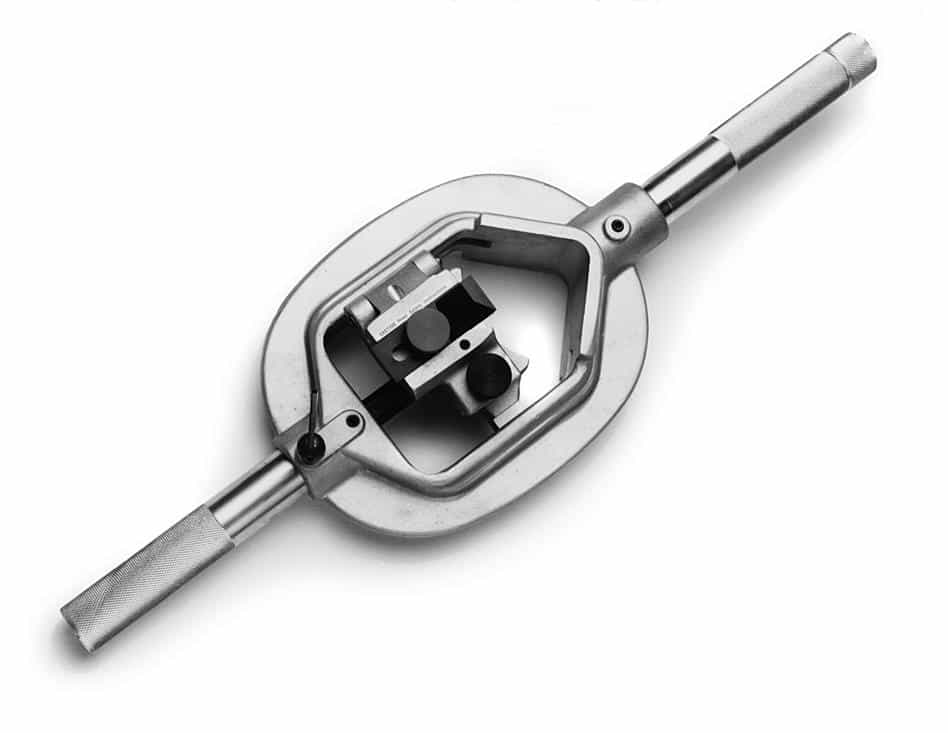

The Ripley WS 57 is a high voltage cable jointing tool used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley WS 57 adjustable end stripper suitable for 45 to 115KV cables. The WS 57 has a blade angle which is easy to set cutting deep and adjusts easily to control the width of the end strip cut.

The end stripper has quick slide adjustment for cable sizing and is suitable for XLPE, polyethylene and EPR insulation.

The Ripley WS 57A is similar to the WS 57 with the addition of an adjustable semi-con shaving blade system.

RIPLEY WS 57 HIGH VOLTAGE CABLE JOINTING TOOL

Specification

For 45 to 115 KV cables
2.0 to 4.25 in. (50.80 to 108.00 mm) cable O.D.
Quick-slide adjustment for cable sizing
Easy setting of blade cutting depth
For XLPE, polyethylene and EPR insulation
Blade angle adjusts easily to control width of end strip cut
Made in the U.S.A.

Cable Stripper Model	Order Code	Shaves Semi-Con?	Replacement Blade Order Code	Minimum Cable Outer Diameter	Maximum Cable Outer Diameter
WS 57	34320	No	34327	2.0″ (50.8mm)	4.25″ (108mm)
WS 57A	34735	Yes	34327 (jacket), 21715 (Semi-Con)	2.0″ (50.8mm)	4.25″ (108mm)

➡ T&D distribute a complete range of Utility Cable Tools for primary, secondary distribution and transmission applications – Utility Tool is a brand of Ripley for wire and cable preparation tools for power, transmission and distribution.
