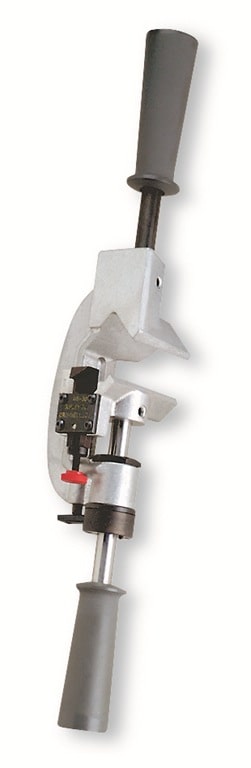

Adjustable Cable End Stripper (15.88 to 41.28mm) – Ripley WS58
Cable Stripping Tools
Ripley Ws58
Ripley WS58 is an adjustable cable stripping tool used when stripping, jointing and terminating overhead lines and primary distribution cables.
The WS58 tool is suitable for 15.88-41.28mm cables O.D with two handle power turning with fast slide-action makes stripping easy and is adjustable to fit a wide range of cable O.D’s.
The adjustable cable stripper is designed to give clean safe cuts which prevents conductor damage.
Features of Ripley WS58 Cable Stripper
- Equipped with a fast, slide-action adjustment mechanism to fit a wide range of cable outer diameters from 0.625 to 1.625 (15.88 to 41.28 mm) without damaging the conductor
- Two-handle design provides greater leverage & stripping efficiency
Ripley Cable Tools | Jointing, Splicing & Cable Preparation Tools for Underground Cables & Overhead Line Conductors | LV MV HV
RIPLEY WS58 MID-SPAN CABLE STRIPPER
Specification
- For .625 to 1.625 in. (15.88 to 41.28 mm) cable O.D.
- Fast, slide-action adjustment
- Two handle power turning strips easily
- Clean, safe cuts prevent conductor damage
- Adjustable to fit wide range of cable O.D.’s
- Made in the U.S.A
- Replacement blade: CB 100 Part No.: 34294
- Length: 16.5 in. (419 mm)
- Weight: 2.1 lb (953 g)
- Part No.: 34360
- More: Cable Strippers Tools – Primary Distribution
- Also: Cable Strippers Tools – Secondary Distribution
➡ View T&D’s complete range of Overhead Line Equipment.
Cable Jointing Tools – LV, MV, HV & EHV Cable Stripping & Preparation Tools For Covered Aerial MV Cables 5kV 15kV 25kV
Instruction Sheet | Ripley WS 58 Adjustable Cable End StripperDownload
