Universal Rotary Remote Racking System
CBS ArcSafe RRS-1
The CBS ArcSafe RRS-1 is a versatile remote racking system designed to safely insert or remove low and medium voltage draw-out rotary circuit breakers, allowing the operator to remain outside the arc flash boundary. This system is compatible with circuit breakers that use a jack screw mechanism for insertion and removal.
Weighing less than 200 pounds, the RRS-1 is portable and easy to use, with no need for modifications to the switchgear or circuit breakers. Each system is custom-engineered to meet your specific circuit breaker requirements.
Thorne & Derrick can provide electrical safety equipment to substation engineers, cable jointers, overhead linesmen and utility workers with PPE to ensure worker safety when carrying out maintenance on LV-HV switchgear, substations, cables and electrical equipment.
RRS-1 For Rotary Circuit Breakers
The CBS ArcSafe RRS-1 remote racking system allows for the automatic racking of circuit breakers from a remote location, replacing the manual racking process and keeping operators safely away from direct contact with the circuit breaker. Its innovative design, featuring custom-made drive shafts and tooling, enables compatibility with circuit breakers from all major switchgear manufacturers.
The CBS ArcSafe system can be used with draw-out air, SF6, oil, and vacuum circuit breakers, supporting both horizontal and vertical racking operations.

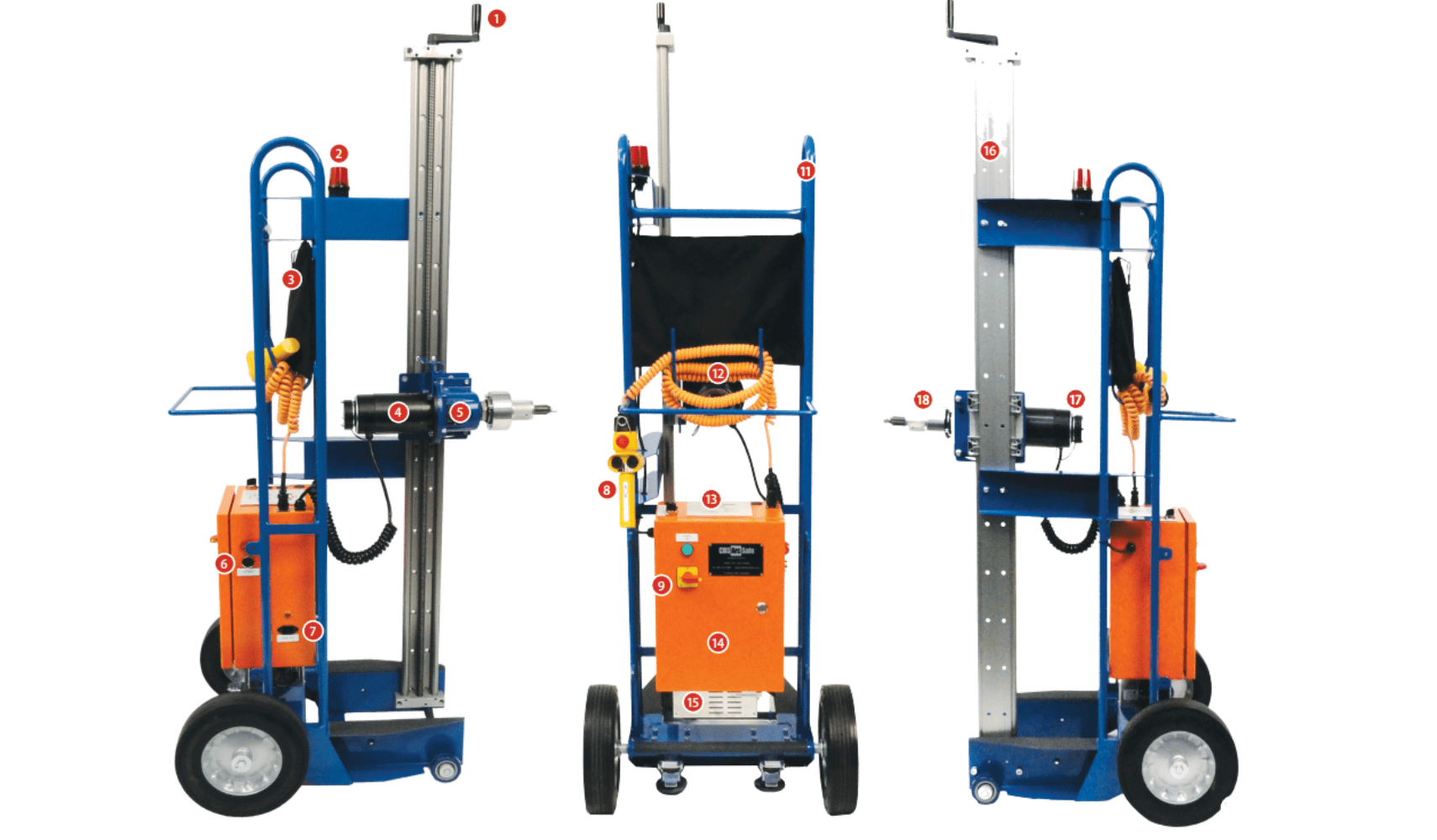

- Height Adjustment Handle
- CCM Status Indicator Light
- Storage Bag
- Drive Motor
- Drive Motor Gearbox
- CCM Status Indicator Siren
- AC Power Input Receptacle
- Wired Pendant Station
- Main Power Disconnect
- Floor Lock
- Frame
- Wired Pendant Coil Cord
- Current Control Module (CCM)
- Control Cabinet
- Power Supply
- Slide Rail
- Drive Motor Brake
- Torque Limiter Assembly
- Spring-Loaded Drive Head
- Front Wheels
- Rear Wheels
CBS ArcSafe RRS-1 Benefits & Specifications
- Remote operation places operator outside the arc-flash protection boundary
- Compatible with low- and medium-voltage circuit breakers produced by all major switchgear manufacturers
- Use with horizontal and vertical types of air, SF6, and vacuum circuit breakers
- Height and angle of the drive is easily adjusted
- Quick release drive shafts & couplings simplify setup
- Redundant over-racking protection is provided
- Seamless transfer AC/DC power
- Hand-truck design provides easy mobility
- Aids compliance with NFPA 70E relative to protecting personnel by using external circuit breaker rack-out device
| WEIGHT | 200 lbs |
| BATTERY LIFE | >50 operations* |
| SYSTEM VOLTAGE | 24 V DC |
| INPUT VOLTAGE | 120 ±10% V AC, 47-63 Hz† |
| MAXIMUM AC CURRENT | 12.2 A |
| DRIVE MOTOR POWER | 250 W |
| DRIVE ASSEMBLY SPEED | 80 RPM |
| CHARGE TIME | Under 60 minutes |
| DIMENSIONS | 74″ H x 26″ W x 38.1″ D |
| OPERATING DISTANCE | 35 ft.‡ |
| DRIVE MOTOR | 24VDC, 250W, 80 RPM |
| MAX OUTPUT TORQUE | 40 ft-lbs |
| GEAR RATIO | 19:1 |
| CHARGING TIME | 3 Hour (minimum) |
| WEIGHT | 160 lbs |
| LENGTH | 36″ |
| WIDTH | 26″ |
| HEIGHT | 60″ |
*Number of operations is dependent on the nature of the operation
† May be custom ordered to match different local power standards
‡Standard configuration; contact CBS ArcSafe for other options
The following image details the working dimensions of the RSS-1. Dimensions are in inches unless otherwise noted and are for reference only.
Circuit Breaker Compatibility
The CBS ArcSafe universal remote racking systems can accommodate a wide variety of low- and medium-voltage circuit breaker types from different manufacturers. The following lists are not all-inclusive. Please contact us if your breaker type(s) are not shown.
The RRS-1 is compatible with the following circuit breaker models:
- ABB – AmVac
- ABB – HD4
- ABB – VD4
- ABB – VD4 (Vacuum Retrofit)
- ABB, BBC, ITE – 38 HKV
- ABB, BBC, ITE – HK
- ABB, BBC, ITE – HK-1000
- ABB, BBC, ITE – K-Line
- ABB, BBC, ITE – LK
- ABB, BBC, ITE – MB
- ABB, Sace – Emax
- Allis Chalmers – AM-250
- Allis Chalmers – Ruptair
- Allis Chalmers, Siemens Allis – G25, G50
- Allis Chalmers, Siemens Allis, Siemens – LA
- Alstom – HVX
- Alstom – HWX
- Areva – HVX
- Asea – MV
- Brusk – VSI
- Controlled Power – HVF
- Cutler-Hammer, Eaton – Magnum DS
- FPE – DST
- FPE – FPS-4 & FMS-4
- FPE – H1, H2, & H3
- Fuji – VCB
- GE – AKD-5 (AK)
- GE – AKD-8 (AKR)
- GE – AKR
- GE – AMH
- GE – AMH (34.5kV)
- GE – EntelliGuard
- GE – FK
- GE – Magne-blast
- GE – Magne-blast (Canadian)
- GE – PowerBreak
- GE – PowerBreak II
- GE – PowerVac
- GE – WavePro
- GEC – VMX
- ITE – HV
- McGraw Edison – PSD
- McGraw Edison – WSA
- Merlin Gerin – FG2
- Merlin Gerin – LF2
- Merlin Gerin – MP
- Mitsubishi – DHP
- Mitsubishi – HC-Z
- Powell – PowlVac
- Power Solutions – BV
- Rerolle – LMT2
- Siemens – 3AF
- Siemens – 81000
- Siemens – GMI
- Siemens – VR
- Siemens – WL
- Siemens-Allis, Siemens – RL
- Square D – SE
- Square D – VAD-1
- Square D – VAD-2
- Square D – VAD-3
- Square D, Schneider – NT
- Square D, Schneider – NW
- Toshiba – VK
- Westinghouse – DB-75 & 100
- Westinghouse – DH & DHP
- Westinghouse – DH (Large)
- Westinghouse, Cutler-Hammer – SPB
- Westinghouse, Cutler-Hammer – VCP
- Westinghouse, Cutler-Hammer, Eaton – VCP-W
- Westinghouse, Cutler-Hammer, Eaton, Square D – DS, DSL, DSII
- Yorkshire – YSF6
