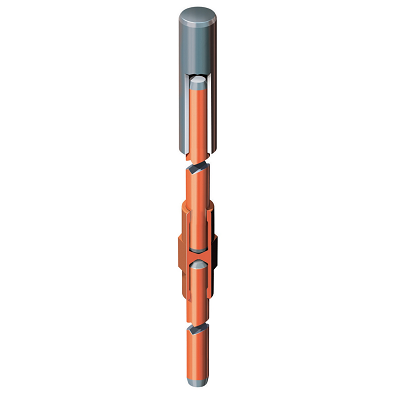

Unthreaded copperbond earth rod

Unthreaded Copperbond Earth Rod

Furse

Furse unthreaded copperbond earth rods probably offer to the installer, the best and most economical earth rods available.

Unthreaded copperbond earth rods are made by molecularly bonding 99.9% pure electrolytic copper onto a low carbon steel core. Furse rods are not of the sheathed type – they are highly resistant to corrosion, and because the steel used has a very high tensile strength, they can be driven by power hammers to great depths.

The counter-bored couplings are made from high copper content alloy – commercial brass is not used.

Earthing Product Details

  • High tensile low carbon steel core with minimum 250 microns of copper
  • Other lengths available to order

Earthing Standards

  • IEC/BS EN 62561-2 (14.2 mm and 17.2 mm dia. rods without UL suffix)
  • BS 7430
  • UL467 (RB226-UL, RB236-UL, RB326-UL, RB336-UL)
Furse Earth Rod Earth Rod nominal diameter (“) Earth Rod Length (mm) Weight each (kg)
RB005 Ø 9.0 1,200 0.62
RB107 Ø 12.7 1,500 1.55
RB203 Ø 14.2 1,200 1.53
RB213 Ø 14.2 1,500 1.88
RB236 Ø 14.2 3,000 3.79
RB317 Ø 17.2 2,000 3.64
RB326 Ø 17.2 2,400 4.35
UL Listed Copperbond Earth Rods
RB226-UL Ø 14.2 2,440 3.00
RB236-UL Ø 14.2 3,048 3.79
RB326-UL Ø 17.2 2,440 4.35
RB336-UL Ø 17.2 3,048 5.44
